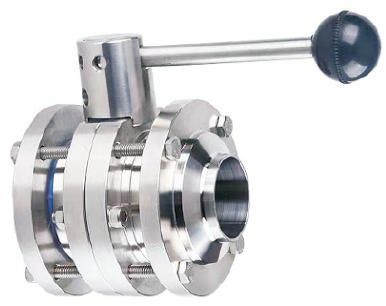

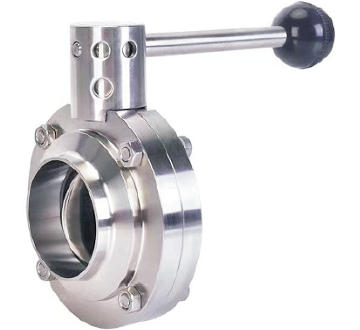

- Hygienic Butterfly Valve
Sanitary butterfly valves are made of stainless steel materials such as SUS304 and SUS316L, complying with international standards such as ISO, DIN, GB/T, as well as GMP and FDA certification requirements. The valve body includes an annular seat, an elastic lining, and a butterfly plate. By rotating the butterfly plate 90° through the valve shaft into the gasket, the valve achieves the function of controlling fluid flow. Depending on different models and sizes, it can achieve working pressures up to 2.5 MPa and medium temperatures up to 210°C. It is mainly used in industries such as pharmaceuticals, food, chemicals, and semiconductor industries
Product advantages:
•Hygienic safety: no residue, anti-pollution, easy to sterilize, ensuring product quality
• Cost-effective: low flow resistance, light weight, and cost-effective for large diameters
• Reliable and durable: simple structure, long lifespan, low maintenance cost
• Flexible adaptation: manual / pneumatic / electric, multiple connections and seals
technical parameters
Material: 304, 316L
Specification: DN15-DN150
Sealing material: VMQ, EPDM, FKM, NBR
Valve body material: 304, 316L
Operating temperature: -10℃~+130℃
Working pressure: 0-8 bar
Application scope:
Food and beverages: dairy products, fruit juice, beer, beverages, syrup, edible oil
Pharmaceuticals / Biology: Pharmaceutical solutions, injection water, clean steam, fermentation, biologics
Daily chemical products / cosmetics: pure water, cream, shampoo, essence, skin care product raw materials
Semiconductor / ultrapure water: high-purity fluid, chemical delivery
The main types include:

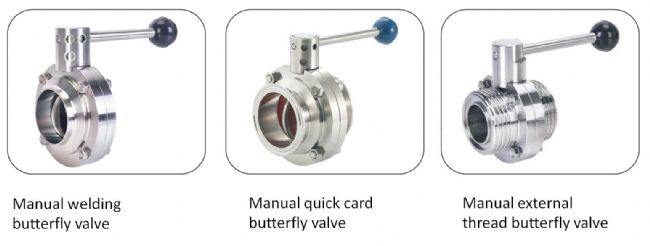

(1) Manual welding of butterfly valve
(2) Manual quick-release butterfly valve
(3) Manual external thread butterfly valve

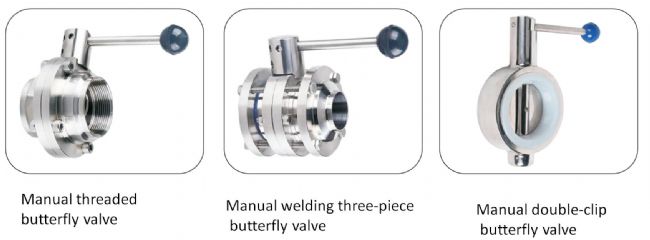

(4) Manual threaded butterfly valve
(5) Manually welded three-piece butterfly valve
(6) Manual double-clip butterfly valve

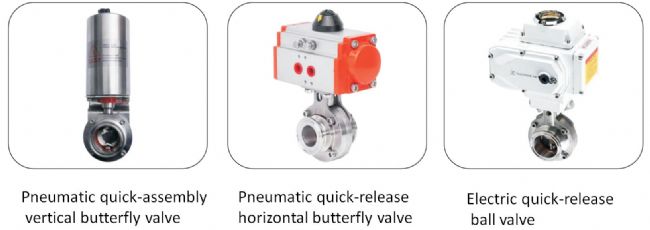

(7) Pneumatic quick-assembly vertical butterfly valve
(8) Pneumatic quick-assembly horizontal butterfly valve
(9) Electric quick-release ball valve
If you have any questions, please feel free to call for consultation,
