- Tank Bottom Valve
Tank Bottom Valve is used for discharge of reaction vessels in clean industries such as pharmaceuticals, biology, fine chemicals, and food
Usually welded at the bottom of the tank, used as an outlet valve. This can empty, clean, and disinfect the medium inside the tank. In addition, valves can also be installed or welded to the tank cover or wall.
The sealing of the valve body is tightly attached to the tank wall, which can minimize dead zones as much as possible. Hygiene grade design allows the medium inside the tank to be emptied, cleaned, and disinfected.
Customize services according to customer needs
To ensure that the outlet or bottom valve meets the strict requirements for aseptic applications, we also offer customized designs.
1. Product advantages
• Compact design
• Minimum dead volume
The inner surface can be mechanically polished or electropolished to Ra0.25 μ m
The diaphragm completely isolates the medium from the driving mechanism.
Clean without dead corners, easy to clean with CIP/SIP, compliant with FDA/GMP.
• No dead corners discharge: The flow channel is smooth and straight, fitting the lowest point of the tank bottom, and the material can be completely emptied without residue.
• Anti clogging: Suitable for high viscosity, particle containing, and easily crystallizable media.
• Reliable sealing: Close tightly to prevent leakage (especially suitable for toxic, corrosive, and flammable media).
Special installation: directly installed at the bottom of the container (flange/welding), the valve body is mostly Y-shaped/angled structure.
2. Technical parameters
• DN 20-100
Standard valve body material: 1.4435 (316L)
Welding, clamps, oiling, and other connections are all available
• Provide manual, pneumatic, or electric actuators
3. Driving mode

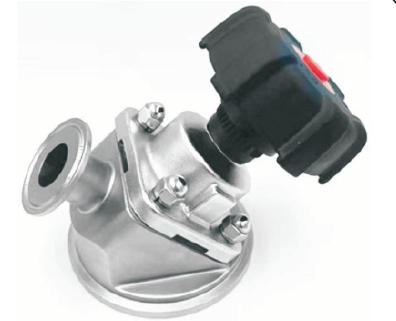

Manual: Handwheel/handle, simple and low-cost.
Pneumatic: driven by actuators, suitable for automation and explosion-proof scenarios.
Electric: precise control, remote adjustment.
4. Common materials
Stainless steel: 316L, 304
Plastic: PP, PVDF
Alloy: Titanium alloy.
5. Selection method

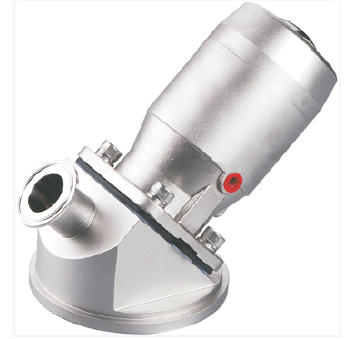

Upward tank bottom valve: When opened, the valve core lifts upwards and the material flows out from all sides.
Bottom valve with downward expansion: When opened, the valve core moves downward and the flow channel is completely straight through

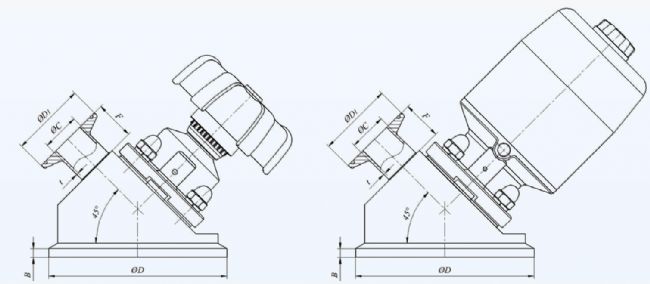

Manual and Pneumatic Tank Valve Size Table
| No | Model（DN） | φ | B | φC*t（3A） | F |
| 1 | DN20 | φ85 | 6 | φ19.05*1.65 | 28 |
| 2 | DN25 | φ120 | 6 | φ25.4*1.65 | 28 |
| 3 | DN32 | φ160 | 6 | φ31.8*1.65 | 28 |
| 4 | DN40 | φ160 | 6 | φ38.1*1.65 | 28 |
| 5 | DN45 | φ160 | 6 | φ45.0*1.65 | 28 |
| 6 | DN50 | φ180 | 6 | φ50.8*1.65 | 28 |
| 7 | DN57 | φ180 | 6 | φ57.0*1.65 | 28 |
| 8 | DN65 | φ200 | 6 | φ63.5*1.65 | 28 |
| 9 | DN80 | φ250 | 8 | φ76.2*1.65 | 28 |
| 10 | DN89 | φ250 | 8 | φ88.9*2.11 | 28 |
| 11 | DN100 | φ320 | 10 | φ101.6*2.11 | 28 |
