LABOAO Mammalian Cell Cutrue Glass and Stainless Steel  Bioreactors Fermenter
LABOAO Mammalian Cell Cutrue Glass and Stainless Steel Bioreactors Fermenter
Place of Origin:
China
Brand:
LABOAO
Model:
LBR-GJC/LBR-SCUC
Price:
USD10,000-20,000
Hits:
803
Updated:
4/23/2024
  • Product Detail
  • Company Profile
    LABOAO Mammalian Cell Cutrue Glass and Stainless Steel  Bioreactors Fermenter

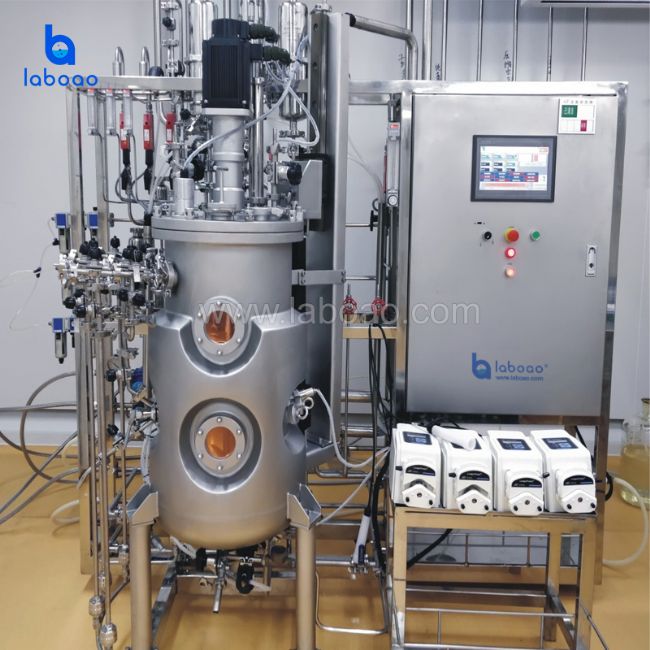

    Mammal cell bioreactor (stainless steel, top entry magnetic drive, safe and efficient, simple and elegant). Applied for production systems of  mammal and animal cell cultures through batch feeding or continuous perfusion.

    1. The culture of marine organisms, especially the cells and tissues of microalgae and macroalgae, is a research focus all over the world. Among them, some secondary metabolites such as marine terpenoids are widely studied secondary metabolites.
    2. The photobioreactor is suitable for culture of algae cells and tissues. It adopts a long and narrow tank with a total volume of 3.6L and tank cover specification of 11 SNW. It is provided with specially designed low position cooling jacket and outer casing type light source to ensure the transmission effect of lighting. It has various types of mixing paddles for selection such as flat paddle, bevel paddle and turbine paddle. The light intensity can be adjusted freely according to the percentage, it can simulate various lighting modes, such as day and night alternation.
    3. Technical parameters: three fluorescent lamps (8W) are provided as standard configuration, or products can be customized according to customer requirements. The light intensity is adjustable.
     1. Siemens PLC control system + vinylon LCD touch screen, is used to display all measured values and control parameters, which greatly facilitates the user's operation. you can use USB for data transmission, sampling and displaying tank data, browsing and analyzing system data, reading settings.
    2. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank.
    3. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.
    4. The structure is compact, and various components can be integrated into the fermentation system.
    5. Using off-position sterilization magnetic stirring method, which has a simple structure and stable operation.
    Specification
    Name In-situ sterilization magnetically stirred glass fermentation tank (vertical) In-situ sterilization mechanically stirred glass fermentation tank (vertical)
    Model LBR-XGCAV LBR-XGJAV
    Volume X=3/5/7/10/15L
    Material 316 stainless steel temperature control jacket + high boron glass
    Stirring method Magnetic coupling at the bottom drives mechanical stirring at the top Shaft coupling drive top mechanical agitation
    Sterilization method In situ sterilization
    basic configuration Temperature, speed, PH, dissolved oxygen, replenishment, defoaming, air flow (manual), tank pressure (manual)
    Control System LBR-B, S biological process controller
    power 220V/2KW
    Shape space 900*550*1100mm
    net weight 150kg
    Scalable configuration Liquid level control, feeding and weighing system, two-way feeding, online detection of methanol and ethanol content, exhaust O2 and CO2 detection, etc.
