- Diaphragm valve diaphragm
Diaphragm valves have the advantages of high flux and low residue, and are widely used in fluid control in pharmaceuticals, beverages, food, and chemical industries. Their safety, reliability, and durability are inseparable from the performance of the diaphragm, which determines the lifespan of the diaphragm valve.

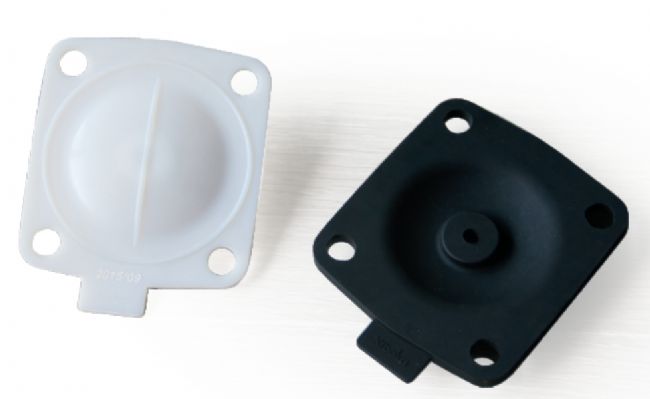

PTFE diaphragm sheet is processed using high-temperature molding technology and has the characteristics of high density, high smoothness, and high bending degree. Its excellent high-temperature resistance can meet the requirements of SIP sterilization process
This product is processed in a dedicated clean room and meets cGMP standard requirements

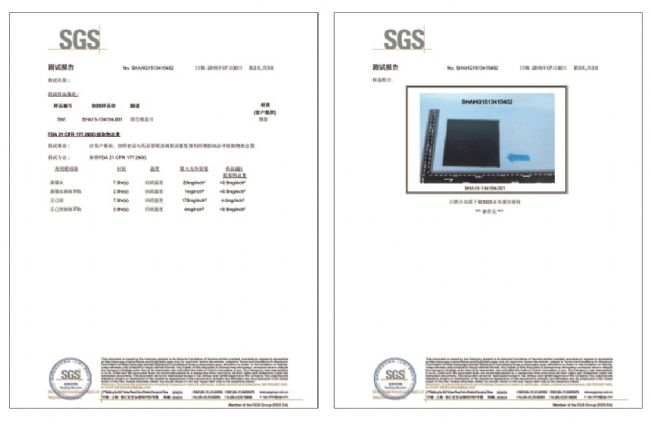

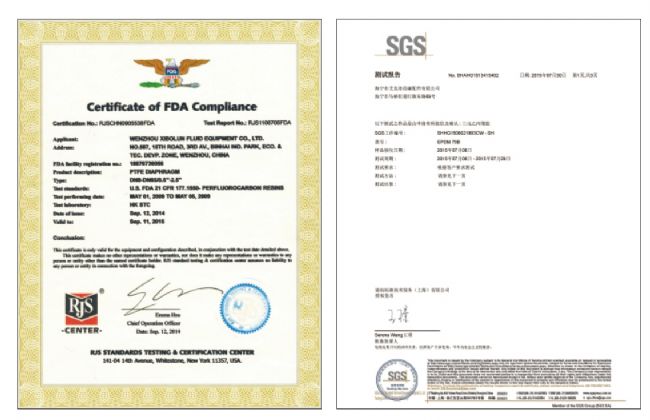

Quality standards: Certified by FDA recognized international quality certification authorities SGS and RJS for quality assessment,
Complies with the current quality standards for film sheets in the food and pharmaceutical industries of European and American countries, as follows:
FDA21CFR 177.2600
Safety standard for repeated contact with food and drugs on the surface of rubber components
FDA21CFR 177.1550
Safety standard for repeated contact with food and drugs on the surface of perfluoroplastic components
FDA21CFR 177.2600
In vivo and in vitro biocompatibility standards
Performance characteristics:

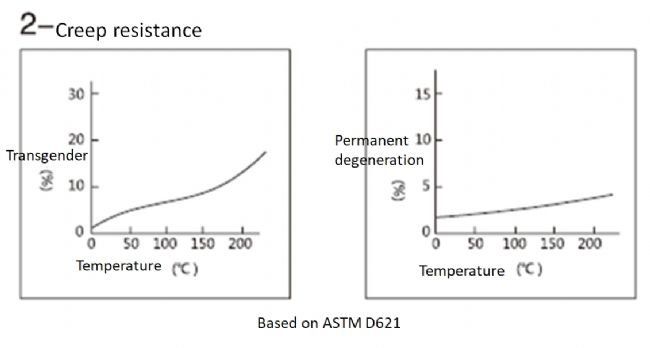

Excellent creep resistance and pressure resistance

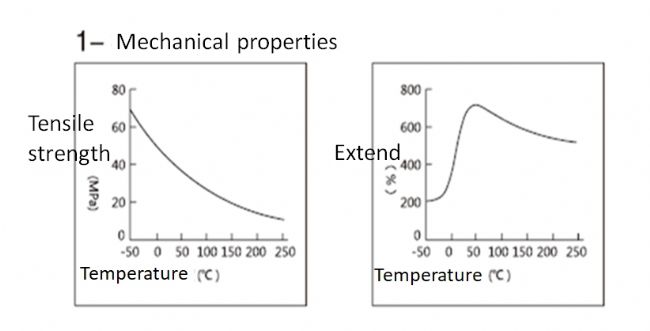

Excellent thermal mechanical properties
Excellent bending life
Dense structure without pores
Smooth surface without residue
long service life
Indicator:
Execution standard: FDA 21CFR177.1550
Working temperature: -20 ° C-150 ° C
Work pressure: Max.8bar
Design lifespan:>1000000 cycles/25 ° C
Diaphragm material: New modified PTFE
Excellent creep resistance and pressure resistance
Excellent thermal mechanical properties
Excellent bending life
Dense structure without pores
Smooth surface without residue
long service life
Indicator:
Execution standard: FDA 21CFR177.1550
Working temperature: -20 ° C-150 ° C
Work pressure: Max.8bar
Design lifespan:>1000000 cycles/25 ° C
Diaphragm material: New modified PTFE

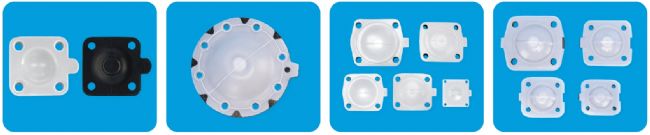

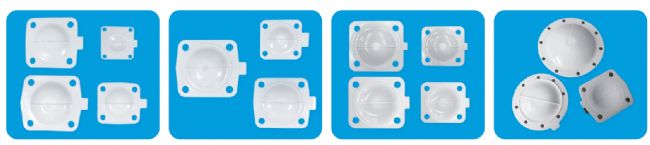

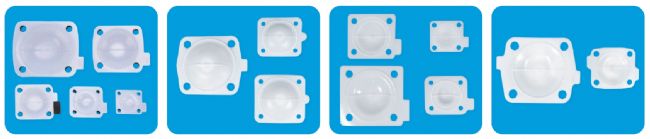

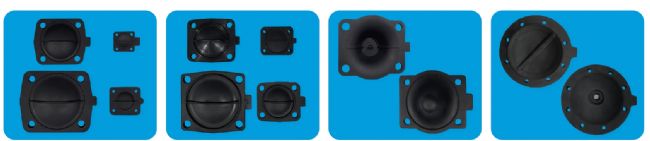

Pharmaceutical/food, biotechnology specific film
| specifications | A*B | ΦD | texture of material | Working pressure | SIP2h/ long period of time |
| DN8 |
25*25 | 4-Φ5 | EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN10 | 25*25 | 4-Φ5 | EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN20 |
36*34 53*45 |
4-Φ7 4-Φ19 |
EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN25 |
36*34 53*45 |
4-Φ7 4-Φ19 |
EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN32 | 36*34 53*45 |
4-Φ7 4-Φ19 |
EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN40 |
70*76 81*73 110*92 |
4-Φ11 4-Φ13 4-Φ13 |
EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN50 |
70*76 81*73 110*92 |
4-Φ11 4-Φ13 4-Φ13 |
EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
| DN65 | 70*76 81*73 110*92 |
4-Φ11 4-Φ13 4-Φ13 |
EPDM PTFE EPDM PTFE+EPDM |
Max.10bar Max.8bar Max.8bar |
140°C /121°C 170°C /150°C 140°C /130°C |
Compatible membrane
Compatible with GEMÜ diaphragm valves
Compatible with SED diaphragm valve diaphragm
Compatible with other diaphragm valve plates
