- Sanitary Grade Angle Aeat Valve

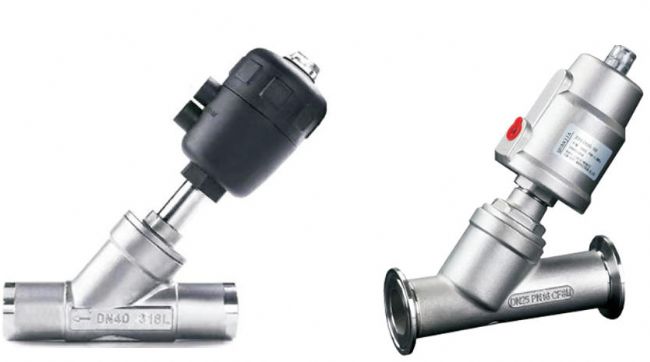

The Sanitary Grade Angle Aeat Valve is a directional valve controlled by a single acting pneumatic actuator with spring safety protection, typically made of PTFE gaskets and sealing seats to prevent medium flow.
Open and close through pneumatic operation, mainly used in industrial automation fluid control, food processing, and wet heat sterilization cabinets
This valve can be divided into normally open or normally closed types according to working conditions, suitable for gas, liquid, and steam flow control, and has the characteristics of sensitive response and precise action
Its main body is made of stainless steel casting, and the sealing material is made of polytetrafluoroethylene, which has strong corrosion resistance. The maximum working pressure can reach 2.5MPa, and the medium temperature covers -20 ℃ to 300 ℃

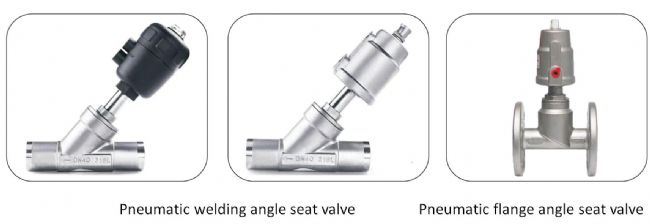

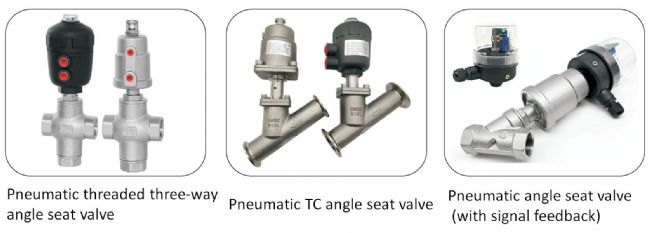

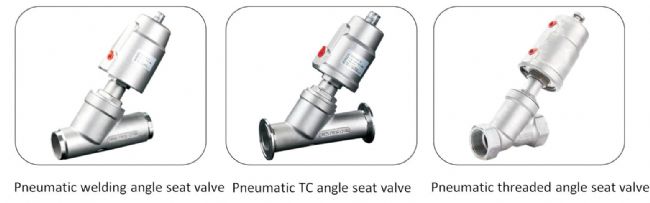

The connection methods include threaded, quick install, flange, and welded, and the actuator is divided into two types: plastic and stainless steel. The corner seat structure can reduce water hammer effect, equipped with a radiator to extend the service life of the actuator, and has valve opening and closing status display function
During installation, adjustments should be made according to the flow direction of the medium: liquid is recommended to flow in direction A to reduce impact, while steam or gas is recommended to flow in direction B to enhance sealing.
Electric position indicators, position and process controllers, sensor systems, and measuring equipment can be easily and quickly installed and integrated into existing process control technologies.
Globe valves are suitable for controlling and regulating inert or slightly corrosive liquids, gases, or vapors.
Drive mode: pneumatic
Connection methods: Welding, Flanging, Threading, Oil Ning
Work pressure: 0-40 bar
Valve body material: metal: stainless steel, cast iron, cast copper
Medium temperature: -20-180 ° C
Diameter: DN 6-100
Main advantages:
High flow rate and low flow resistance: Y-shaped flow channel is smooth with low pressure drop
Self cleaning and residue prevention: angled and mirror finish, less prone to scaling
High frequency reliability: millions of lifetimes, suitable for frequent switching
Temperature and pressure resistance: -10 ℃~+180 ℃
Waterproof Hammer: Smooth switch, protecting pipelines
Compliant with standards: 3A, GMP, FDA
Scope of application
Food and beverage: dairy products, beer, beverages CIP/SIP、 Filling and steaming
Pharmaceutical/Biological: Injection water, purified water, sterile gas, fermentation, sterilization cabinet
Cosmetics/Fine Chemicals: High cleanliness fluids, aseptic processes
Water treatment: Ultra pure water, sanitary grade dosing
| Model | Diameter | Applicable scenarios |
| DN10 | Φ12.7 / Φ16 | Low flow, sampling, dosing |
| DN15 | Φ19 / Φ25 | Small pipeline, purified water |
| DN20 | Φ25 / Φ32 | General pipeline |
| DN25 | Φ32 / Φ38 | Mainstream and commonly used, filling, CIP |
| DN32 | Φ38 / Φ45 | Medium to high flow rate |
| DN40 | Φ51 | Steam, high-flow liquid |
| DN50 | Φ63 | Main pipeline, high flow rate |
| DN65 | Φ76 | Large equipment supervisor |
| DN80 | Φ89 | Large-diameter system |
