- Sanitary Ball Valve
Sanitary Ball Valve is a valve whose opening and closing components rotate around the axis of the valve stem, mainly used for fluid control in industries such as food and pharmaceuticals.
The ball valve seat is a medium ball that is wrapped in a PTFE sealing ring. The valve can be opened and closed by rotating 90 degrees. According to different material combinations,
Ball valves can be used for medium temperatures of 200 ° C, operating pressures of 60bar, and can also be used in vacuum environments.
The specifications cover DN15-DN200 and are made of SUS304/316L stainless steel material. The connection methods include quick installation, welding, threading, and flange, which comply with ISO, DIN, IDF and other standards
The surface is polished to achieve a cleanliness of Ra ≤ 0.8 μ m, and sealing materials such as EPDM and PTFE can be selected. It is suitable for temperatures of -20~+135 ℃ and pressures of 1.0-1.6MPa
This valve includes straight through T-type, three-way quick installation, and no retention type, with smooth and seamless channels and support for automatic emptying, meeting CIP cleaning requirements
Adopting a fully enclosed valve seat seal to avoid residual media, optional V-shaped ball core treatment for fiber containing media
The product complies with the GB/T21465-2008 valve terminology standard, meets GMP and FDA hygiene certifications, and is suitable for fluid transportation and filling in the fields of dairy products, beverages, biopharmaceuticals, etc
We provide numerous customized accessories for automation and process optimization. Electric position indicators, position and process controllers, sensor systems, and measuring equipment can be easily and quickly installed and integrated into existing process control technologies.
Valve type: Metal ball valve
Valve body material: 316
Work pressure: 0-63 bar
Maximum working temperature ℃: 180 ° C
Diameter range DN: 8-100
Drive mode: manual, pneumatic, electric
Connection methods: Welding, Flanging, Threading, Oil Ning
Work pressure: 0-65 bar
Valve body material: metal: stainless steel
Plastic: PP, PVC, PVDF
Medium temperature: -80-210 ° C
Diameter: DN 8-150
1. Physical picture of sanitary grade ball valve

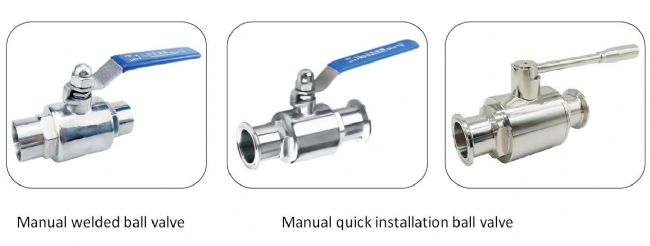

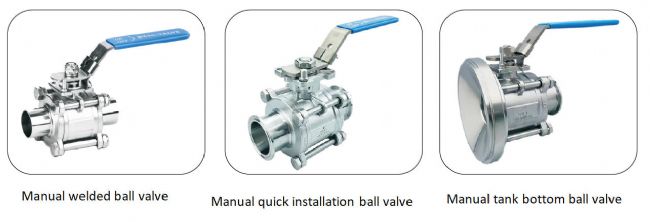

(1) Manual welded ball valve

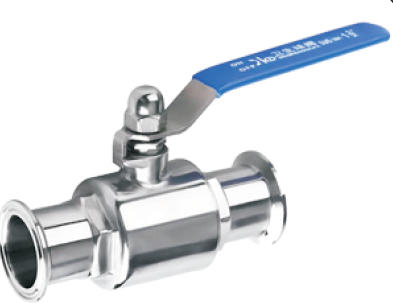

(2) Manual quick installation ball valve

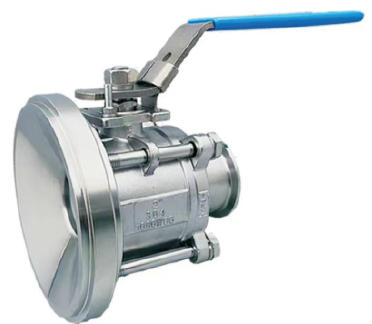

(3) Manual tank bottom ball valve

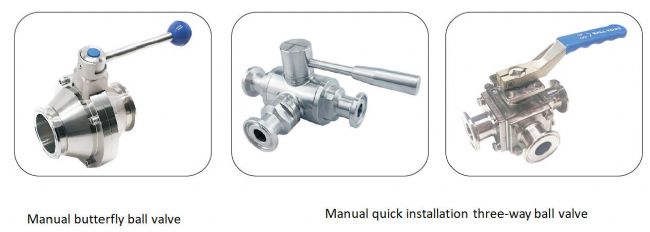

(4) Manual butterfly ball valve
(5) Manual quick installation three-way ball valve
2. Physical pictures of pneumatic ball valves and electric ball valves

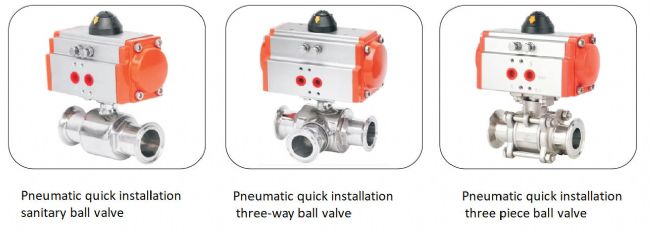

(1) Pneumatic quick installation sanitary ball valve
(2) Pneumatic quick installation sanitary ball valve

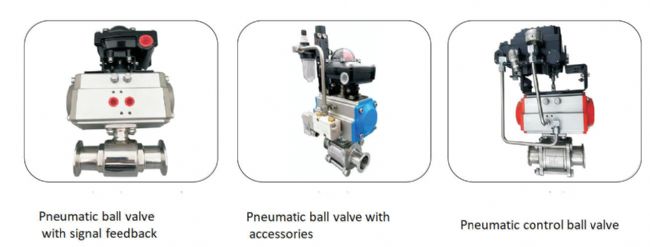

(3) Pneumatic control ball valve

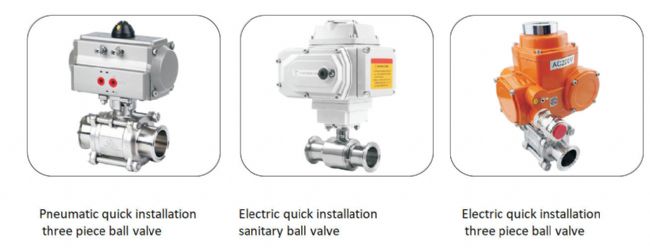

(4) Pneumatic quick installation three piece ball valve
(5) Electric quick installation three piece ball valve
(6) Electric quick installation sanitary ball valve
