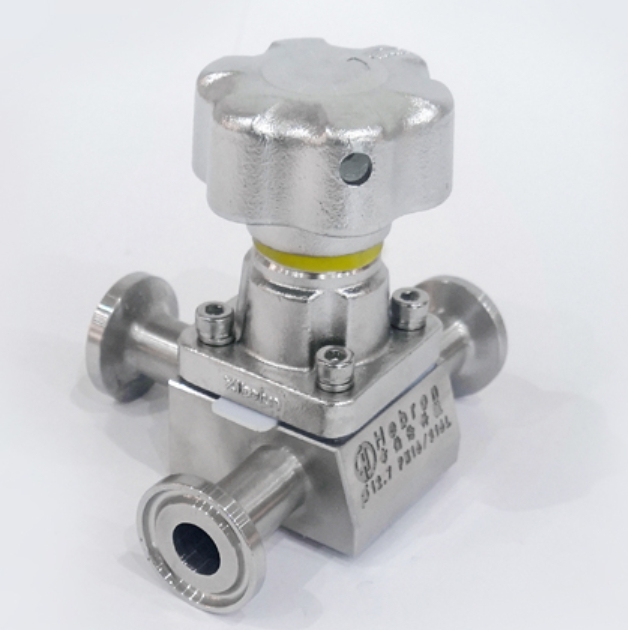

- DN manual diaphragm valve

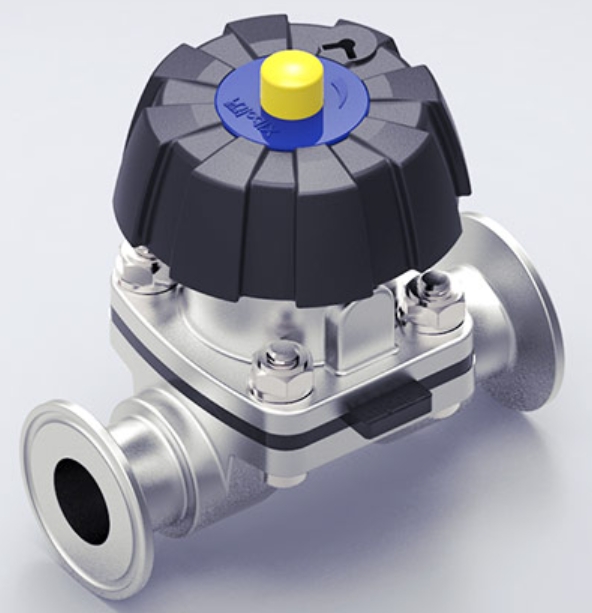

Diaphragm valve products are mainly used in industries and fields such as biopharmaceuticals, vaccines, food and beverage, dairy products, etc.
All products can be professionally designed and manufactured according to customer requirements.
New sealing structure for better and more stable sealing performance
The diaphragm has passed USP Class VI testing in the United States
Product diameter: DN20-50
Work pressure: 0-0.8MPa
Nominal pressure: PN1.6Mpa
Working temperature: -20 ℃~150 ℃
Valve body material: CF3M casting, 316L forging
Sealing material: EPDM (single-layer), EPDM+PTFE (double-layer)
Connection methods: card type, welding type, threaded type, flange type
Connection size: GB, ASME BPE, ISO, DIN, SMS and other standards
Surface treatment: mechanical polishing, mechanical polishing, and electrolytic polishing
Valve body structure: straight through, three-way (T/U), GMP, SAP, tank bottom, multi-channel valve body, etc
Surface smoothness: SF1-SF6 (ASME BPE2007)

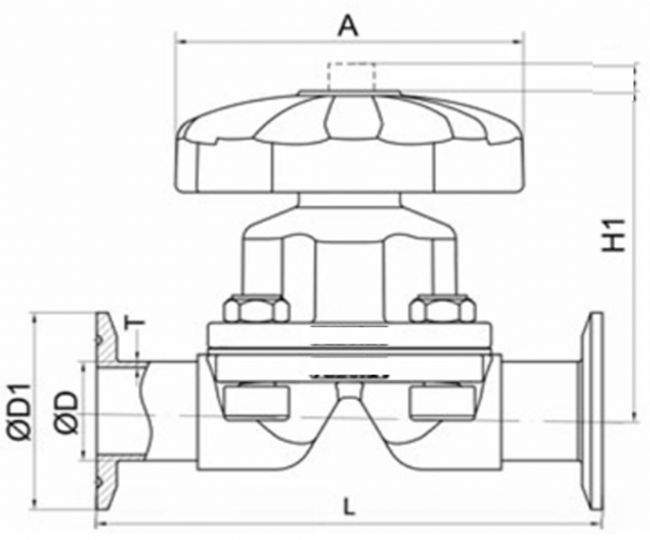

Specification selection
| Model/Size | GB/T17395 ISO1127 | ASME BPE | Basic dimensions | |||||
| DN | 英寸 | ΦD*T | ΦD1 | ΦD*T | ΦD1 | L | A | H1 |
| 8 | 1/4" | 8*1 | 25 | 6.35*0.89 | 25 | 89 | 43 | 57 |
| 10 | 3/8" | 10*1 | 25 | 9.53*0.89 | 25 | 89 | 43 | 59 |
| 15 | 1/2" | 12.7*1.5 | 25 | 12.7*1.65 | 25 | 89 | 43 | 59 |
| 20 | 3/4in | 19.05*1.5 | 50.5 | 19.05*1.65 | 25 | 105 | 66 | 68 |
| 25 | 1in | 25.4*1.5 | 50.5 | 25.4*1.65 | 50.5 | 125 | 86 | 83 |
| 32 | 1.25in | 31.8*1.5 | 50.5 | / | / | 161 | 111 | 103 |
| 40 | 1.5in | 38.1*1.5 | 50.5 | 38.1*1.65 | 50.5 | 161 | 111 | 103 |
| 50 | 2in | 50.8*1.5 | 64 | 50.8*1.65 | 64 | 192 | 111 | 114 |
| 65 | 2½" | 63.5*2 | 77.5 | 63.5*1.65 | 77.5 | 216 | 165 | 154 |
| 80 | 3" | 76.2*2 | 91 | 76.2*1.65 | 91 | 254 | 165 | 168 |
| Note: D: Outer diameter D1 Chuck outer diameter T Wall thickness | ||||||||
Pneumatic diaphragm valve
New sealing structure for better and more stable sealing performance
The diaphragm has passed USP Class VI testing in the United States
Product diameter: DN8~15
Work pressure: 0-0.8MPa
Nominal pressure: PN1.6MPa
Working temperature: -20 ℃~150 ℃
Valve body material: CF3M casting, 316L forging
Sealing material: EPDM (single-layer), EPDM+PTFE (double-layer)
Connection methods: card type, welding type, threaded type, flange type
Connection size: GB, ASME BPE, ISO, DIN, SMS and other standards
Surface treatment: mechanical polishing, mechanical polishing, and electrolytic polishing
Valve body structure: straight through, three-way (T/U), GMP, SAP, tank bottom, multi-channel valve body, etc
Surface smoothness: SF1-SF6 (ASME BPE2007)
| Model/Size | GB/T17395 ISO1127 | ASME BPE | Basic dimensions | |||||
| DN | Inch | ΦD*T | ΦD1 | ΦD*T | ΦD1 | L | A | H1 |
| 8 | 1/4" | 8*1 | 25 | 6.35*0.89 | 25 | 89 | 54 | 102 |
| 10 | 3/8" | 10*1 | 25 | 9.53*0.89 | 25 | 89 | 54 | 104 |
| 15 | 1/2" | 12.7*1.5 | 25 | 12.7*1.65 | 25 | 89 | 54 | 104 |
| 20 | 3/4" | 19.05*1.5 | 50.5 | 19.05*1.65 | 25 | 105 | 126 | 33 |
| 25 | 1" | 25.4*1.5 | 50.5 | 25.4*1.65 | 50.5 | 125 | 149 | 38 |
| 32 | 1¼" | 31.8*1.5 | 50.5 | - | - | 161 | 179 | 42 |
| 40 | 1½" | 38.1*1.5 | 50.5 | 38.1*1.65 | 50.5 | 161 | 182 | 34 |
| 50 | 2" | 50.8*1.5 | 64 | 50.8*1.65 | 64 | 192 | 218 | 28 |
| 65 | 2½" | 63.5*2 | 77.5 | 63.5*1.65 | 77.5 | 216 | 167 | 280 |
| 80 | 3" | 76.2*2 | 91 | 76.2*1.65 | 91 | 254 | 167 | 290 |
| Note: D: Outer diameter D1 Chuck outer diameter T Wall thickness | ||||||||
Pneumatic diaphragm valve with signal feedback
New sealing structure for better and more stable sealing performance
The diaphragm has passed USP Class VI testing in the United States
Product diameter: DN8~65
Work pressure: 0-0.8MPa
Nominal pressure: PN1.6Mpa
Working temperature: -20 ℃~150 ℃
Valve body material: CF3M casting, 316L forging
Sealing material: EPDM (single-layer), EPDM+PTFE (double-layer)
Connection methods: card type, welding type, threaded type, flange type
Connection size: GB, ASME BPE, ISO, DIN, SMS and other standards
Surface treatment: mechanical polishing, mechanical polishing, and electrolytic polishing
Valve body structure: straight through, three-way (T/U), GMP, SAP, tank bottom, multi-channel valve body, etc
Surface smoothness: SF1-SF6 (ASME BPE2007)
Proportional adjustment pneumatic diaphragm valve
Overview of process controller functions: easy to operate; Analog feedback function 4-20mA; binary input/output function;
Accurate process control (temperature, flow rate, etc.); Multiple flow characteristic curves are available for selection;
Normally open or double acting pneumatic diaphragm valve
Other valve types:
T-shaped diaphragm valve with sampling
Manual T-shaped three-way diaphragm valve

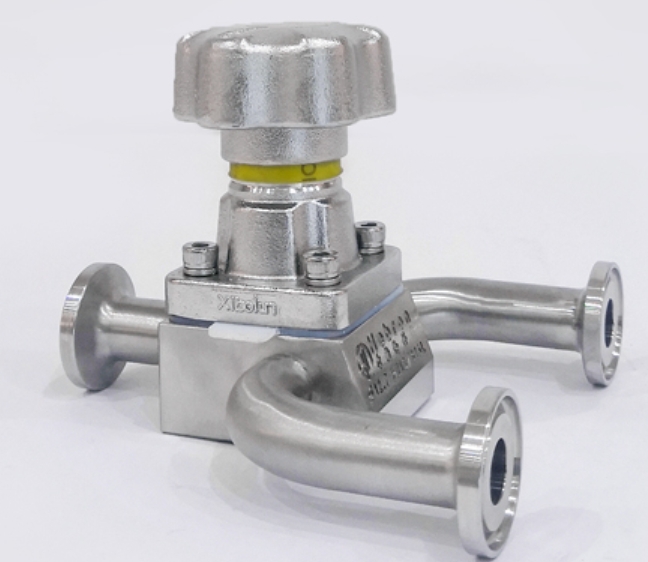

Manual U-shaped three-way diaphragm valve

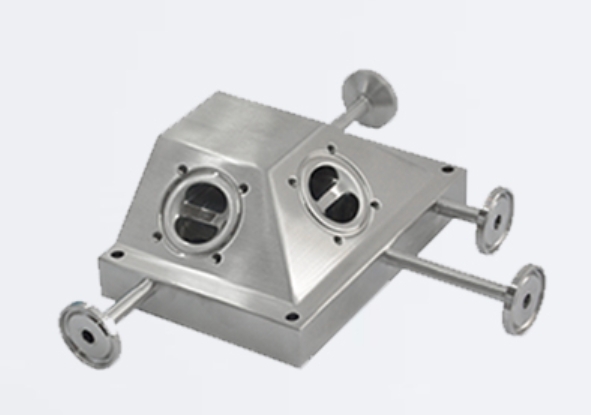

Customized multi-channel valve body

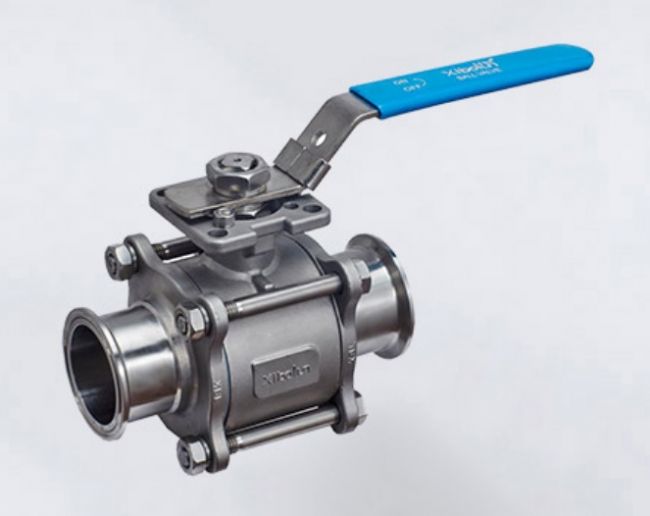

Card type three piece high platform ball valve

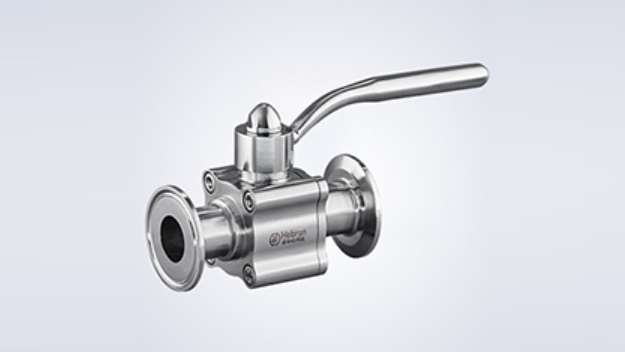

Sanitary grade ball valve

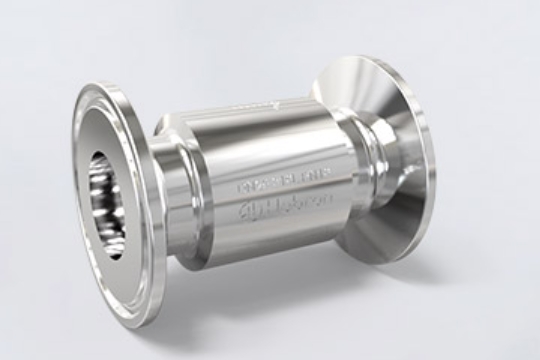

Integrated check valve

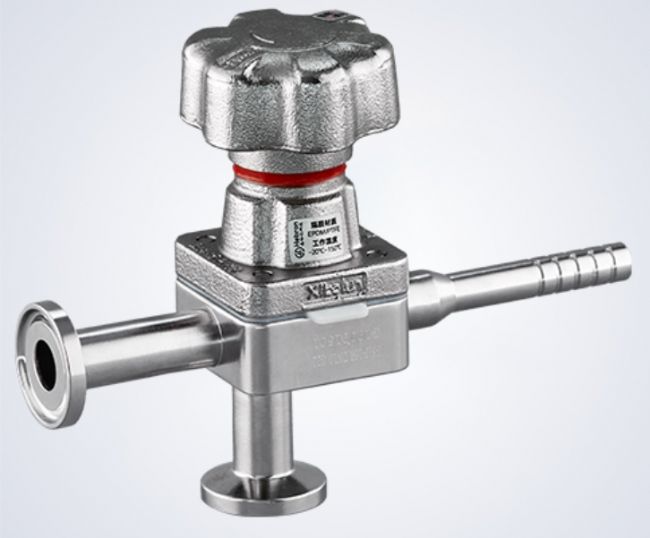

Diaphragm sampling valve
U-shaped diaphragm valve with limit adjustment
GMP diaphragm valve
Bottom diaphragm valve with sampling
Customized multi-channel diaphragm valve
Bottom diaphragm valve with sterilization valve
Manual tank bottom diaphragm valve
Other valves
