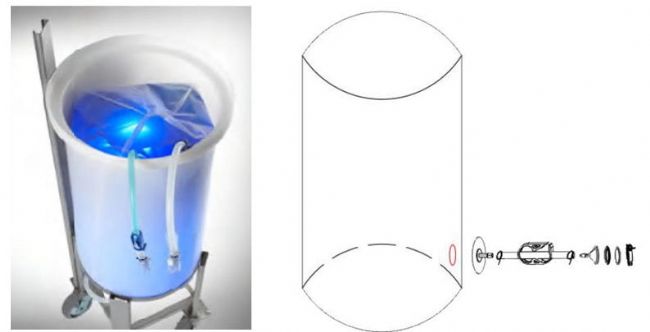

- 2.5D Cylindrical Storage Bag
The 2.5D cylindrical bag adopts multi-layer co extruded film, ensuring extremely low gas permeability, good physical strength, excellent chemical compatibility and biocompatibility of the sterile liquid storage bag, making it safe for storage and transportation of various biopharmaceutical liquids. There are various types and specifications of standard 2.5D cylindrical storage bags, ranging from 38L to 568L, which can be used independently for the storage of buffer solutions, culture media, intermediates, and stock solutions; It can also be used to connect sterilization filters for matching purposes. The inlet and outlet pipelines can use Ruhr connectors, CPC quick connectors, Tri clamp sanitary connectors, or sterile connectors. Provide multiple sampling methods, such as needle free samplers, Luer connectors, and medical heparin caps.
Advantage:
*High transparency film material, conducive to auxiliary process judgment
*Flexible customization of sizes, pipelines, fittings, and filters, suitable for
In various biopharmaceutical processes
*Can be matched with various circular support containers
Application:
*Storage and transportation of buffer solution and culture medium
*Cell harvesting fluid transport
*Collection of purified components
*Intermediate filtering and storage
*Moderate liquid-liquid mixing process
*Raw liquid storage and transportation
Ordering information:
Disposable 2.5D cylindrical open lined bag
Specification: 30L-500L
| Art.No | Description | Sterilization method | inner packaging | Out1 |
| SBYL003030L | 2.5D cylindrical open lined bag | Gamma irradiation | Double layer PE bag vacuum packaging | 1/4 * 7/16 "Silicone Tube 1000mm TC Chuck |
| SBYL005050L | 2.5D cylindrical open lined bag | Gamma irradiation | Double layer PE bag vacuum packaging | |
| SBYL0100100L | 2.5D cylindrical open lined bag | Gamma irradiation | Double layer PE bag vacuum packaging | |
| SBYL0200200L | 2.5D cylindrical open lined bag | Gamma irradiation | Double layer PE bag vacuum packaging |

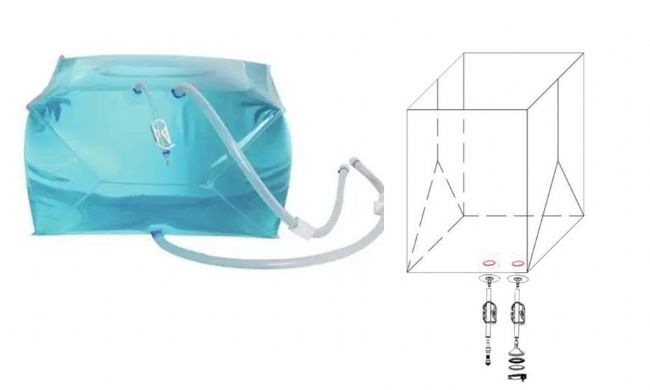

3D Square Liquid Storage Bag
The 3D square bag adopts multi-layer co extruded film, ensuring extremely low gas permeability, good physical strength, excellent chemical compatibility and biocompatibility of the sterile liquid storage bag, making it safe for storage and transportation of various biopharmaceutical liquids. There are various types and specifications of standard 3D cube storage bags ranging from 50L to 3000 L, which can be used independently for the storage of buffer solutions, culture media, intermediates, or stock solutions; It can also be used in conjunction with a sterilization filter. The inlet and outlet pipelines can use Luer connectors, CPC quick connectors, Tri clamp sanitary connectors, or sterile connectors. Provide multiple sampling methods, such as needle free samplers, Luer connectors, and medical heparin caps.
Advantage:
*High transparency film material, conducive to auxiliary process judgment
*Flexible customization of sizes, pipelines, fittings, and filters, suitable for various biopharmaceutical processes
*Can be matched with various circular support containers
Application:
*Storage and transportation of buffer solution and culture medium
*Cell harvesting fluid transport
*Collection of purified components
*Intermediate filtering and storage
*Moderate liquid-liquid mixing process
*Raw liquid storage and transportation
Ordering information:
Disposable 3D open lining bag
Specification: 100L-500L
| Art.No | Description | Sterilization method | inner packaging | Out1 | Out2 |
| SBNL0100 | 100L 3D open lined bag | Gamma irradiation | Two layer PE bag vacuum packaging | 1/4 * 7/16 "Silicone Tube 1000mm TC Clamp | 1/4 * 7/16 "Silicone Tube 1000mm TC Clamp |
| SBNL0200 | 200L 3D open lined bag | Gamma irradiation | Two layer PE bag vacuum packaging | 1/4 * 7/16 "Silicone Tube 1000mm TC Clamp | 1/4 * 7/16 "Silicone Tube 1000mm TC Clamp |
| SBNL0500 | 500L 3D open lined bag | Gamma irradiation | Two layer PE bag vacuum packaging | 1/4 * 7/16 "Silicone Tube 1000mm TC Clamp | 1/4 * 7/16 "Silicone Tube 1000mm TC Clamp |

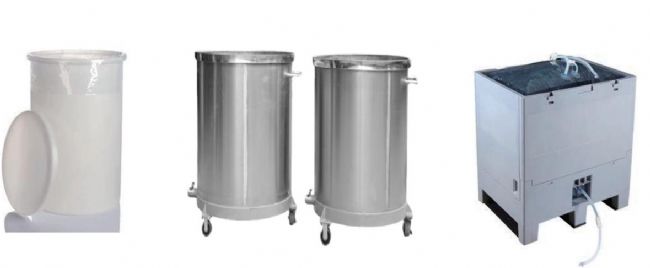

Liquid storage supporting equipment
Specially designed for 2D and 3D liquid storage bags, suitable for different volumes. Different shapes of liquid storage bags, matched with different transportation tools, can achieve flexible transportation.
Ordering information:
Plastic Bucket
| Art.No | Size |
| CYT019-1 | External dimensions 28 * 38 cm, volume 19 L |
| CYT028-1 | External dimensions 33 * 50 cm, volume 28 L |
| CYT038-1 | External dimensions 33 * 50 cm, volume 38 L |
| CYT057-1 | External dimensions 33 * 69cm, volume 57 L |
| CYT113-1 | External dimensions 48 * 76cm, volume 113L |
| CYT208-1 | External dimensions 56 * 91cm, volume 208 L |
| CYT303-1 | External dimensions 61 * 118cm, volume 303L |
| CYT378-1 | External dimensions 71 * 112cm, volume 378 L |
| CYT568-1 | External dimensions 79 * 124 cm, volume 568 L |
| CYT757-1 | External dimensions 91 * 130 cm, volume 757 L |
Stainless steel bucket
| Art.No | Size |
| SCYT020 | External dimensions 28 * 38 cm, volume 19 L |
| SCYT050 | External dimensions 33 * 69cm, volume 57 L |
| SCYT100 | External dimensions 48 * 76cm, volume 113 L |
| SCYT200 | External dimensions 56 * 91cm, volume 208 L |
Round stainless steel base
| Art.No | Size |
| DZ019 | Suitable for plastic buckets and round stainless steel buckets |
| DZ028 | Suitable for plastic buckets |
| DZ057 | Suitable for plastic buckets and round stainless steel buckets |
| DZ113 | Suitable for plastic buckets and round stainless steel buckets |
| DZ208 | Suitable for plastic buckets and round stainless steel buckets |
| DZ303 | Suitable for plastic buckets |
| DZ378 | Suitable for plastic buckets |
| DZ568 | Suitable for plastic buckets |
| DZ757 | Suitable for plastic buckets |
Folding square box
| Art.No | Size |
| CYX-0250 | External dimensions 810 * 610 * 835 mm, volume 250 L |
| CYX-0500 | External dimensions of 1214 * 813 * 905 mm, capacity of 500 L |
| CYX-1000 | External dimensions 1155 * 1155 * 1132 mm, capacity 1000 L |
Square stainless steel base
| Art.No | Size |
| DZ250 | Compatible with folding square box CYX-0250 |
| DZ500 | Compatible with folding square box CYX-0250 |
| DZ1000 | Compatible with folding square box CYX-0250 |
-
