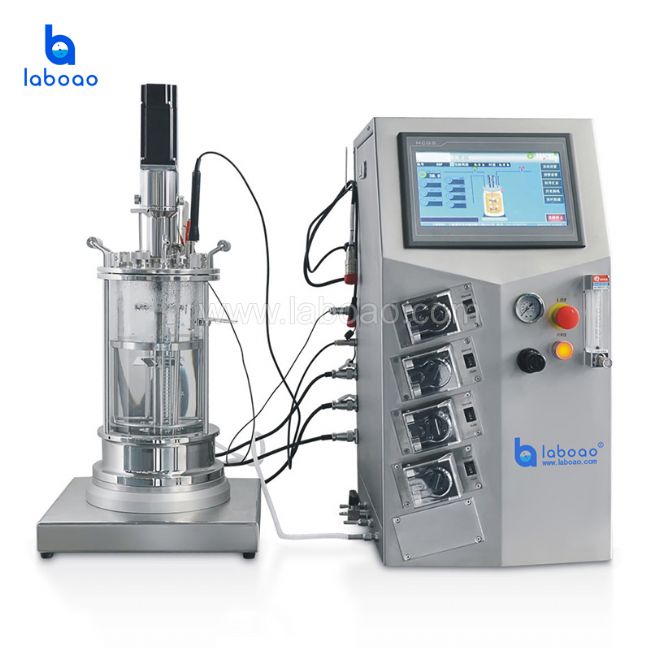

- Stainless Steel Jacketed Temperature Control Off-site Sterilization Glass Fermenter
- The tank is a combination of high temperature, acid and alkali resistant, corrosion resistant silicon borosilicate glass cylinder and 316L stainless steel
- Rotameter display, adjust the flow of gas according to process requirements
- The large-area stainless steel jacket ensures sufficient heat exchange and sterilization, and the cooling water temperature is +5~55℃; accuracy: ±0.1℃; resolution: 0.1℃;
- Electrode detection, peristaltic pump replenishing defoamer, automatic foam control
- Perfect feeding system (acid, alkali, foaming enemy, culture agent), can feed regularly and quantitatively
glass fermenter, magnetic glass fermenter, sterilization glass fermenter,glass bioreactors, bioreactor for animal cell culture
LBR -XGC/XGJ
LABOAO
Any port in China
Plywood case package
Off-site sterilization glass fermenter after suitable fittings are installed, it can be suitable for culture of cells of mammals and insects.The semi-circular bottom stainless steel jacket and built-in serial inner heat exchange baffles are conducive to temperature control of hot and cold water and fast heat transfer. Tanks with working volumes of 1 L, 2L, 3L, 5L, 7L and 10L are available for selection, culture tanks are interchangeable.
The LBR -XGC/XGJ multifunctional glass biological fermentation system uses a color touch screen to display all measured values and control parameters, which greatly facilitates the user's operation. Four peristaltic pumps are installed on the front of the control box to add acid, alkali, defoamer and culture medium to the fermenter. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system.
Application areas:
• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;
• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;
• Metabolic flux research and high-throughput screening of highly active mutant strains;
• Comparative studies, such as: isolation and screening of clinical strains;
• Optimization of growth medium for cell lines or high-yield strains;
Feature
Specification
| Name | Off-site sterilization magnetic drive glass fermenter(magnetic stirring) | Off-site sterilization shaft drive glass fermenter(mechanical agitated) | ||||||
| Model | LBR-XGC | LBR-XGJ | ||||||
| Volume | 0.3L/0.5L/1L/2L/3L/5L/7L/10L/15L | |||||||
| Material | 316 stainless steel bottom jacketed WS+ high boron glass | |||||||
| Stirring method | Magnetic coupling at the bottom drive mechanical stirring at the top | Shaft coupling drive top mechanical agitation | ||||||
| Sterilization method | Off-position autoclave sterilization (sterilization pot size: 1l/2L/3L/5L/7L/φ350*520, 10L, 15L φ388*650) | |||||||
| Tank volume | 1L | 2L | 3L | 4L | 5L | 7L | 10L | |
| Tank size | φ90*155 | φ100*260 | φ150*210 | φ150*260 | φ150*310 | φ150*710 | φ174*458 | |
| Maximum sterilization size | φ150*300 | φ160*380 | φ180*420 | φ180*470 | φ180*521 | φ180*620 | φ260*630 | |
| Tank weight with culture medium (kg) | 5kg | 6.5kg | 9.5kg | 13.5kg | 15.5kg | 18.5kg | 21.5kg | |
| Basic configuration | Temperature, speed, PH, dissolved oxygen, replenishment, defoaming, air flow (manual), tank pressure (manual) | |||||||
| Power | 220V/0.8KW | |||||||
| Shape space | 800*500*600mm | |||||||
| Net weight | 40kg | |||||||
| Application | Magnetic drive is suitable for products with low medium viscosity, long fermentation period and high requirements for biological safety | Shaft drive is suitable for high-density, high-viscosity, high-oxygen-consumption microbial cultivation, and has strong versatility | ||||||
1. Weighing with replenishing balance
2. Tank weighing
3. Air flow automatic control
4. Tank pressure detection
5. Bypass pure oxygen
6. Redox potential online detection
7. Methyl (ethyl) alcohol content online detection and control
8. Tail gas O2, CO2 content online detection
-
