Home >Products> Fermenters | Bioreactors >Bioreactors > LABOAO All-glass Tank Off-site Sterilization Fermenter
Fermenters | Bioreactors:
Fermentors
Bioreactors
- LABOAO All-glass Tank Off-site Sterilization Fermenter
- Product Detail
- Company Profile
- All-glass Tank Off-site Sterilization Fermente
- The tank is a combination of high temperature, acid and alkali resistant, corrosion resistant silicon borosilicate glass cylinder and 316L stainless steel
- Rotameter display, adjust the flow of gas according to process requirements
- The large-area stainless steel jacket ensures sufficient heat exchange and sterilization, and the cooling water temperature is +5~55℃; accuracy: ±0.1℃; resolution: 0.1℃;
- Electrode detection, peristaltic pump replenishing defoamer, automatic foam control
- Perfect feeding system (acid, alkali, foaming enemy, culture agent), can feed regularly and quantitatively
sterilization fermenter,all glass fermenter,all-glass bioreactor,sterilization bioreactor,off-site sterilization fermenter
LBR-XGJG/XGJGG Series
LABOAO
Any port in China
Plywood case package

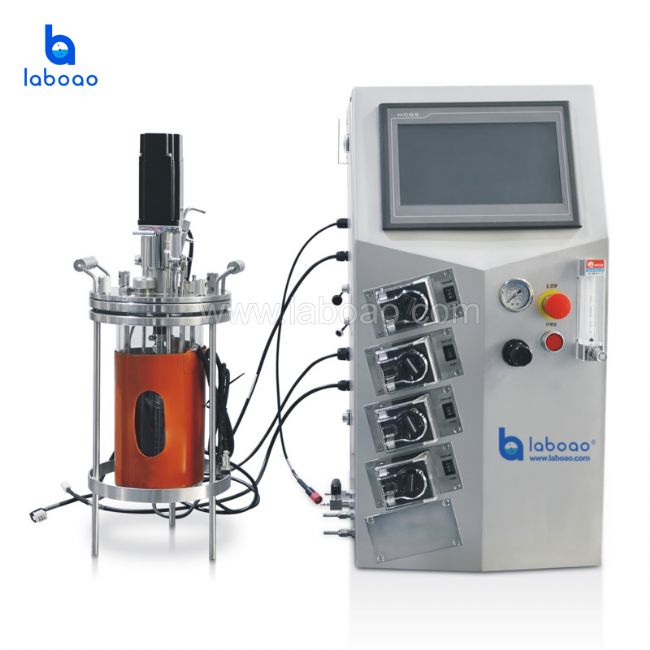

The all-glass tank off-site sterilization fermenter is an all-glass tank body, with good overall structure, safe and reliable, easy to use, easy to learn and easy to use. Tanks with working volumes of 2L, 3L, 5L, 7L and 10L are available for selection, culture tanks are interchangeable.
LBR-XGJG/XGJGG is a set of laboratory all-glass fermentation equipment, sterilized off-site, oval glass tank bottom, with water bath jacket, mechanical stirring, convenient operation, powerful function, can meet various purposes of fermentation, such as batch, Batch feeding, single-arm tank is temperature controlled by heating blanket, and its volume is 2L, 3L, 5L, 7L, 10L, etc. The sterilizer is off-site for sterilization, simple operation, and the most cost-effective bioreactor The temperature control and its accuracy can reach 0.05℃. The color touch screen displays all the measured values and control parameters, which greatly facilitates the user's operation. Four peristaltic pumps are installed on the front of the control box to add acid, alkali, defoamer and culture medium to the fermenter. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.
Application areas:
• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;
• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;
• Metabolic flux research and high-throughput screening of highly active mutant strains;
• Comparative studies, such as: isolation and screening of clinical strains;
• Optimization of growth medium for cell lines or high-yield strains;
Feature
Specification
| Name | Single wall all glass fermentation tank | Double wall all glass fermentation tank |
| Model | LBR-XGJG | LBR-XGJGG |
| Volume | X=1/2/3/5/7/10/15L | |
| Material | 316 stainless steel + high boron glass | |
| Single wall all glass | Double wall all glass | |
| Sterilization method | Off-position autoclave sterilization | |
| Basic configuration | Temperature, speed, PH, dissolved oxygen, replenishment, defoaming, air flow (manual), tank pressure (manual) | |
| Control System | LBR-B biological process controller | |
| Power | 220V/2KW | |
| Scalable configuration | Liquid level control, feeding and weighing system, two-way feeding, online detection of methanol and ethanol content, exhaust O2 and CO2 detection, etc. | |
1. Weighing with replenishing balance
2. Tank weighing
3. Air flow automatic control
4. Tank pressure detection
5. Bypass pure oxygen
6. Redox potential online detection
7. Methyl (ethyl) alcohol content online detection and control
8. Tail gas O2, CO2 content online detection
-
