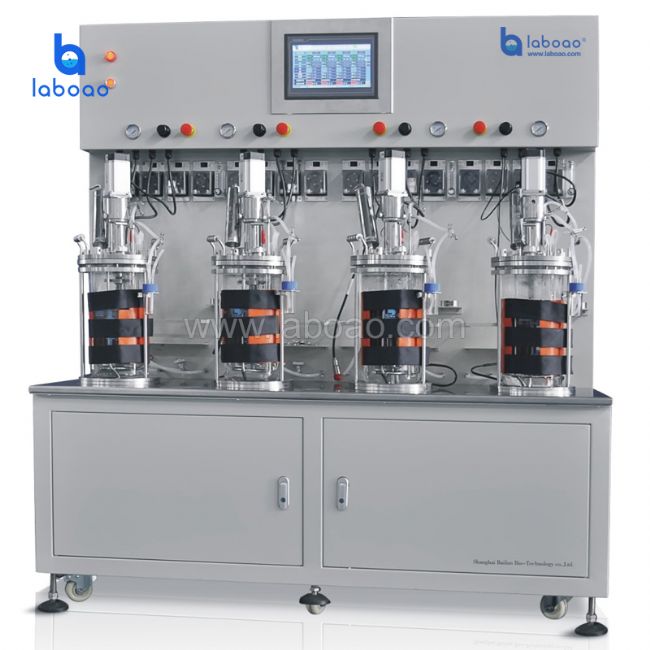

- Off-site Sterilization Autoclavable Four Conjoined Glass Fermenter Bioreactor
- Description
- Four conjoined glass bioreactor is a set of laboratory glass fermentation equipment, easy to operate, powerful, and can meet various purposes of fermentation, such as batch, batch feeding, and even animal cell culture. The color touch screen is used to display all measured values and control parameters, which greatly facilitates the user's operation. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part, which has a simple structure and stable operation.
- Application areas:
- • Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;
- • High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;
- • Metabolic flux research and high-throughput screening of highly active mutant strains;
- • Comparative studies, such as: isolation and screening of clinical strains;
- • Optimization of growth medium for cell lines or high-yield strains;
four conjoined bioreactors,sterilization fermenters,glass bioreactors,magnetic stirring bioreactor,mechanical stirring fermenter,quadruple glass fermenters
LBR-XGC/LBR-XGJ/LBR-XGJG/LBR-XGJGG Series
LABOAO
Any port in China
Plywood case package
Four Conjoined Glass Fermenter Bioreacto is a powerful tool for the selection of medium formula and process optimization
Feature
1. German Siemens PLC control system +10" touch screen display and operation, full Chinese menu and interface
2. Data analysis, saving, curve display can be carried out, data can be saved for many years, data can be exported with USB flash drive, tank data can be sampled and displayed, system data can be browsed and analyzed, and settings can be read.
3. The inner parts of the tank are all installed on the tank lid, which is very convenient for maintenance and cleaning; the stepless speed regulation range with automatic setting control is 50-1200rpm±5rpm
4. Rotameter display, adjust gas flow according to process requirements
5. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank.
6. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.
7. The structure is compact, and various components can be integrated into the fermentation system.
8. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part, which has a simple structure and stable operation.
Specification
| Model | LBR-XGC-4-H | LBR-XGJ-4-H | LBR-XGJG-4-H | LBR-XGJGG-4-H |
| All Capacity | 1L/2L/3L/5L/7L/10L/15L | |||
| Material | 316L stainless steel+ borosilicate glass | |||
| Mixing method | magnetic stirring | mechanical stirring | ||
| Sterilization method | off-site sterilization autoclavable | |||
| Basic Configuration | Temperature, Speed, PH, DO, Defoaming, Ventilation, Pressure | |||
| Extensibleconfiguration (optional) | Exhaust O2, CO2 detection, Online detection of methanol and ethanol content, Refill weighing system etc. | |||
| Power | 220V 8KW | |||
| Dimension(L*W*H) | 1600*730*1750mm | |||
| Net Weight | 150KG | |||
1. Weighing with replenishing balance
2. Tank weighing
3. Air flow automatic control
4. Tank pressure detection
5. Bypass pure oxygen
6. Redox potential online detection
7. Methyl (ethyl) alcohol content online detection and control
8. Tail gas O2, CO2 content online detection
-
