Product Details

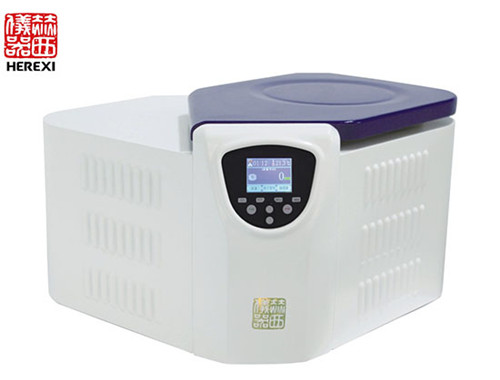

Product model：3H24RI
Maximum speed：24000r/min
Maximum capacity：4*100ml
Product number：
Product brand：Herexi
Product weight：75kg

Main Features
Micro-controller and high-torque brushless motor provide stable operation and low noise.
Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function.
It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages(Chinese, English, Russian, Portuguese).
The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
Can store 100 sets of user-defined programs, can display the speed rise curve, centrifugal integral curve, temperature curve.
Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, suitable for 0.2mL to 100mL centrifuge tubes or reagent bottles; can centrifuge various MTP micro-plates, PCR plates, cell plates The diamond shape is beautiful, and more suitable for corner placement, saving lab limited bench space.
With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.

Model	3H24RI
Max Capacity	4×100 ml swing rotor
Max speed（r/ min）	24000
Max RCF（×g）	39900
Standard rotor	12×1.5/2.0 ml (titanium alloy)
Speed Adjustment	±50r/min
Control and drive system	Large torque AC variable frequency motor, microcomputer contro
Temp control range	－20℃～40℃
Temp adjustment accuracy	±1℃
Operation program	100set
Total Power	1.5 Kw
Timer Range	0-99h59min
Noise	≤65 dB
Power	AV220V 50Hz
Weight	75 Kg
Dimendion（L×W×H）	710×630×350 mm

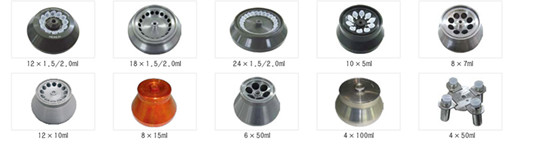

Product name	Capacity	3H24RI
Product name	Capacity	Speed	RCF
Angle rotor	12×1.5/2.0ml	24000	39740
	24×1.5/2.0ml	16000	23798
	18×1.5ml	16000	20606
	30×1.5ml	12000	15294
	48×0.5ml	13500	15640
	48*1.5ml	13000	18138
	10×5ml	20000	27596
	8*7ml	14000	12271
	12*10/5ml	15000	21595
	8×15ml(concial bottom)	12000	14830
	8×15ml(round bottom)	12000	14830
	12*10ml	6000	3740
	6×50ml（through hole）	6000	3670
	6×50ml(round bottom)	12000	13820
	6×50ml(concial bottom)	12000	15120
	4×100ml	11000	12700
Swing rotor	4×100ml	4000	2490
	12×10ml	4000	2360
	4×50ml	4000	2360
Swing micro-plate rotor	2×2×48 holes	3000	1400
