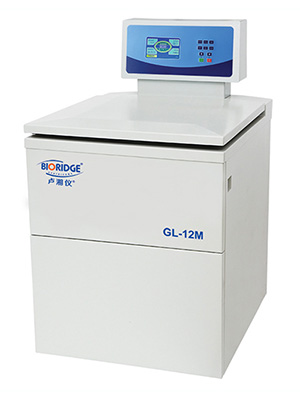

GL-12M Floor-standing High -Speed Refrigerated Centrifuge
GL-12M Floor-standing High -Speed Refrigerated Centrifuge
Place of Origin:
China
Brand:
SHANGHAI LUXIANGYI CENTRIFUGE INSTRUMENT CO., LTD
Model:
GL-12M
Price:
Hits:
4923
Updated:
7/12/2024
  • Product Detail
  • Company Profile

    1、 Technical performance
    • The max speed is 12000rpm, and the largest capacity of fixed rotor is 4X2000ml.
    • It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
    • Imported compressor unit with Non-CFC refrigerant R404a.
    • It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
    • 9 levels acceleration and 9 levels deceleration.
    • Silastic sealed ring comfort to GMP, US FDA certificated.


    2、 Specification

    Model GL-12M
    Max speed 12000r/min
    Max RCF 19830xg
    Max capacity 4x2000ml
    Speed accuracy ± 10r/min
    Time setting 1s~99h 59min59s
    Temperature setting -20 ℃ ~ +40 ℃
    Temperature accuracy ±1 ℃
    Compressor unit French Tecumseh Compressor Unit R404a
    Noise <65db(A)
    Power supply AC220V, 50Hz 30A
    Consumption 5.5kW



    3、 Rotor

    No1 Capacity: 8x100ml/85ml
    Max Speed: 12000r/min
    Max RCF: 19830xg
    Adaptor: 10ml、20ml
    No2 Capacity: 6x1000ml
    Max Speed: 7000r/min
    Max RCF: 11600xg
    Adaptor: 100ml、250ml、300ml、500ml
    No3 Capacity: 4x2000ml
    Max Speed: 6000r/min
    Max RCF: 8410xg
    Adaptor: 100ml、500ml、1000ml、500ml
    No4 Capacity: 6x500ml/400ml
    Max Speed: 8000r/min
    Max RCF: 11620xg
    Adaptor: 50ml、100ml、250ml




    Accessories Center
    NO.1
    Capacity: 100ml×8
    Speed: 12000r/min
    Centrifugal force: 19830×g
    NO.2
    Capacity: 1000ml×6
    Speed: 7000r/min
    Centrifugal force: 11600×g
    NO.3
    Capacity: 2000ml×4
    Speed: 6000r/min
    Centrifugal force: 8410×g
    适配器: 250ml、300ml、500ml、1000ml 根据需求定制
    NO.4
    Capacity: 500ml×6
    Speed: 8000r/min
    Centrifugal force: 11620×g
    bio-equip.cn
    Shanghai Lu Xiangyi Centrifuge Instrument Co., Ltd is a professional centrifuge manufacturer. It is located in Shanghai. Research, manufacturing and marketing are integrated here.

    Good appearance and favorable price is two great advantages of our products. All centrifuges have passed CE. In addition, OEM is availabl.

    We appreciate cooperation with enterprise home and abroad. By joint efforts, we will promote our trade and friendship.
