Micro-controller and high-torque brushless motor provide stable operation and low noise. Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function.

● It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure,three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
● TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
● The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
● 304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
● Can store 20 sets of user-defined programs, can display the speed rise curve, centrifugal integral curve, temperature curve.

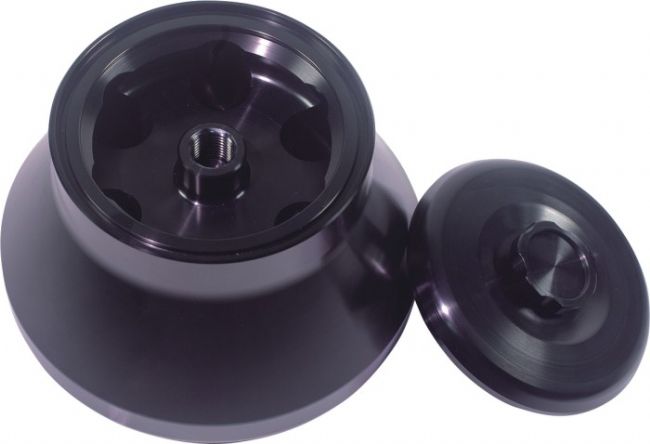

● Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, suitable for 0.2mL to 250mL centrifuge tubes or reagent bottles; can centrifuge various MTP micro-plates, PCR plates, cell plates.

Model	TGL20MW
Max Capacity	6×250 ml swing rotor
Max speed（r/ min）	20600
Max RCF（×g）	29280
Standard rotor	12×1.5/2.0 ml (titanium alloy)
Speed Adjustment	±50r/min
Control and drive system	Large torque AC variable frequency motor, microcomputer contro
Temp control range	－20℃～40℃
Temp adjustment accuracy	±1℃
Operation program	20set
Total Power	1.8 Kw
Timer Range	0-99h59min
Noise	≤65 dB
Power	AV220V 50Hz
Weight	110 Kg
Dimendion（L×W×H）	630×760×400 mm

Product name	Capacity	TGL20MW
Product name	Capacity	Speed	RCF
Angle rotor	12×1.5/2.0ml	20600	29280
	24×1.5/2.0ml	14000	18220
	12*10/5ml	14000	18810
	8×50ml(round bottom)	10000	11400
	8×50ml(concial bottom)	10000	11400
	6*100ml	11000	13310
	6*250ml	8000	9660
	48*5ml(tube)	4000	2960
	48*5ml/2ml(vacuum tube)	4000	2423/2960
	8×15ml(concial bottom)	12000	14830
	76*5ml/2ml(vacuum tube)	4000	3080
	8×15ml(round bottom)	12000	14830
	12*10ml	6000	3740
	6×50ml(round bottom)	12000	13820
	6×50ml(concial bottom)	12000	15120
	4×100ml	10000	10500
Swing rotor	4×100ml	4000	2490
	4*250ml	4000	2780
	8*50ml	4000	2960
	32*15/10ml	4000	2960
	4×50ml	5000	4620
Swing micro-plate rotor	2×2×96 holes	3000	1400
