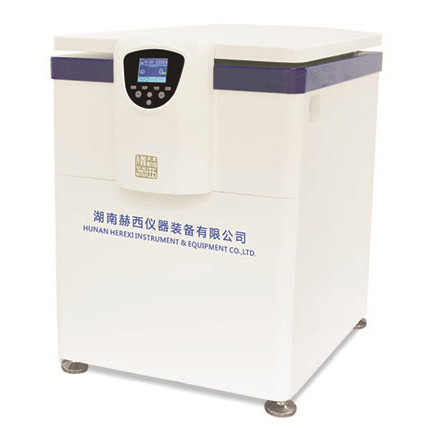

- Product Name: HR21M Pharmacy equipment,High-Speed Refrigerated centrifuge
Max Capacity: 6×500ml
Max Speed(r/min): 21000
Max RCF: 48811xg
PIN: HR21M
Brand: Herexi/OEM
Product unit: set
Weight: 240Kg
With a capacity up to 3L designed for high speed requirements, available with a continuous flow rotor (for HR21M only) and a titanium rotor (for HR26M only). Widely used in clinical medicine, genetic engineering, universities, research and pharmaceuticals
Product Details
PLC and touch screen (in line with EU CE electrical standards), with control panel and high torque AC variable frequency motor, for stable operation and low noise, providing a comfortable laboratory environment.
Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function.
It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
TFT-LCD true color touch screen, can display setting parameters and operating parameters at the same time, the operation interface is simple and easy to use,can display the speed rise curve, centrifugal integral curve, temperature curve. the operation menu can provide multi- language (Chinese, English, Russian, Portuguese).
The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
Can store 16 sets of user-defined programs Can be customized according to demand

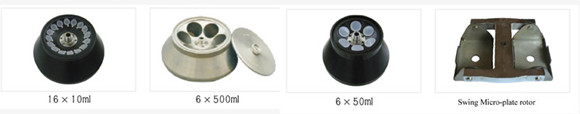

Aviation forged aluminum rotors (angle rotors only) and a variety of adapters are available.
With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.
| Model | HR21M |
| Max Capacity | 6×500 ml |
| Max Speed（r/min） |
21000 |
| Max RCF（×g） |
48811 |
| Speed precision | ±50r/min |
| Temp.control range | Frequency motor，micro control，direct driver |
| Refrigeration system | France Taikang compressor,free-fron（R404a） |
| Operation programe | 16 |
| Temp.control range | -20℃～+40℃ |
| Temp.precision | ±1℃ |
| Timer range | 0-99h59min |
| Total power | 4.0 KW |
| Power | AC220V 50Hz |
| Noise | ＜68dB（A） |
| Dimension(LxWxH) | 820×710×950 mm |
| weight | 240 Kg |
| Model | Capacity | HR20M | |
| speed | RCF | ||
| Angle rotor | 16×10 ml | 21000 | 48811 |
| 6×50 ml(round bottom) | 20000 | 42036 | |
| 6×50 ml(conical bottom) | 18000 | 33687 | |
| 8×50 ml(round bottom) | 15000 | 25700 | |
| 8×50 ml(conical bottom) | / | / | |
| 8×100 ml | 12000 | 18837 | |
| 6×250/300 ml | 12000 | 21734 | |
| 6×500 ml（Beckman bottle) | 8000 | 11377 | |
| continuous flow rotor | 3000ml | 8000 | 9444 |
-
