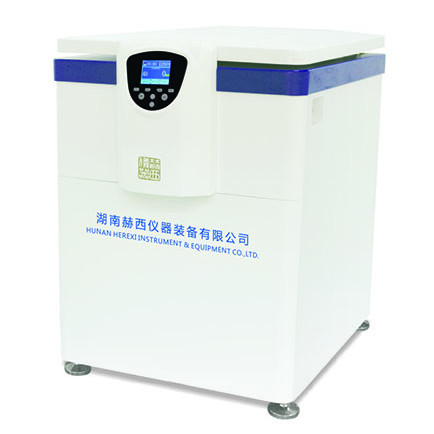

- HR/T20MM Floor Standing High-Speed Refrigerated centrifuge
- Product Detail
- Company Profile
Max Capacity: 4×750ml
Max Speed(r/min): 20600 RPM
Max RCF: 29280xg
PIN: HR/T20MM
Brand: Herexi
Product unit: set
Weight: 150Kg
The capacity is up to 4×750mL, mainly used in the fields of biochemistry, medical and health, food safety, life science, agriculture and forestry science, animal husbandry science, blood bank, biological products, pharmaceutical products, etc.
Product Details
Features:
● PLC and touch screen (in line with EU CE electrical standards), with control panel and
high torque AC variable frequency motor, for stable operation and low noise, providing
a comfortable laboratory environment.
Wide temperature control range: -20 ° C +40°C, can be set during the operation of
the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function, .
● It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure,
three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal
effect.
● TFT-LCD true color touch screen, can display setting parameters and operating parameters at the same time, the operation
interface is simple and easy to use,can display the speed rise curve, centrifugal integral curve, temperature curve. the operation
menu can provide multi- language (Chinese, English, Russian, Portuguese).
● The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the
safety of the staff and laboratory environment.
● 304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel
protective cover to ensure the safety of workers and laboratories.
● Can store 20 sets of user-defined programs (Can be customized according to demand).

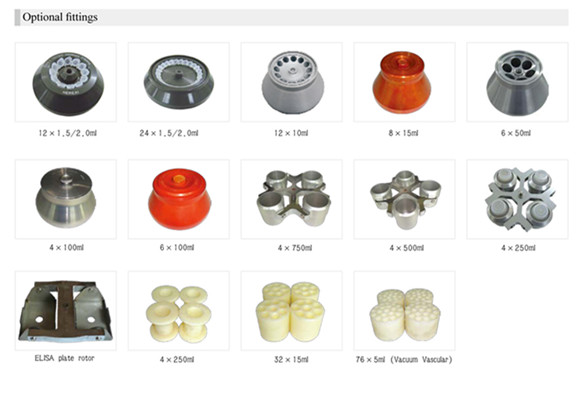

● Aviation forged aluminum rotors (angle rotors only) and a variety of adapters are available,suitable for 1.5mL to 750mL
centrifuge tubes or reagent bottles; can centrifuge various MTP micro-plates, PCR plates, cell plates.
● With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification
| Model | HRT20MM |
| Standard rotor | Swing rotor 4×750ml |
| Max Speed（r/min） | 20600r/min |
| Speed precision | ±50r/min |
| Max RCF（×g） | 29280×g |
| Refrigeration system | Import fluoride-free compressor and control valve（R404a） |
| Temp.precision | ±1℃ |
| Temp.control range | -20℃～+40℃ |
| Operation pro grame | 20 |
| Temp.control range | Frequency motor，micro control，direct driver |
| Total power | 2kw |
| Timer range | 0-99h59min |
| Noise | ≤65dB |
| Power | AV220V 50Hz |
| weight | 150 kg |
| Dimension（L×W×H） | 710×560×770mm |
| Model | capacity | HR/T20MM | |
| / |
/ |
Speed（r/min） | RCF(×g) |
| Angle rotor | 12×1.5/2.0ml | 20600 | 29280 |
| Angle rotor | 24×1.5/2.0ml | 14000 | 18220 |
| Angle rotor | 12*10/5ml | 14000 | 18810 |
| Angle rotor | 8*15ml(concial bottom) | 12000 | 14830 |
| Angle rotor | 8*15ml(round bottom) | 12000 | 14830 |
| Angle rotor | 6*50ml(concial bottom) | 12000 | 15120 |
| Angle rotor | 6*50ml(round bottom) | 12000 | 13820 |
| Angle rotor | 8*50ml(concial bottom) | 10000 | 14880 |
| Angle rotor | 8*50ml(round bottom) | 10000 | 13800 |
| Angle rotor | 6*100ml | 11000 | 13310 |
| Swing rotor | 4×750ml | 4000 | 3500 |
| 4×500ml | 4000 | 3580 | |
| Swing rotor | 4×250ml(concial bottom) | 4000 | 2780 |
| Swing rotor | 4×250ml(round bottom) | 4000 | 2780 |
| Swing micro-plate rotor | 4×2×96 hole | 4000 | 3150 |
| Swing micro-plate rotor | 2×2×96 hole | 4000 | 2360 |
-
