FPC-P3 Oil Particle Counter (Portable)

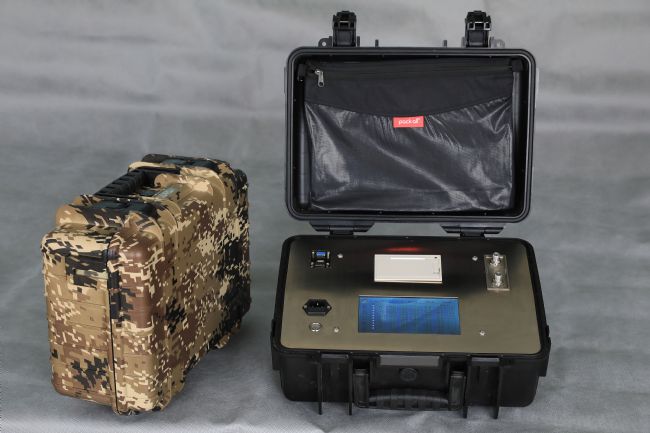

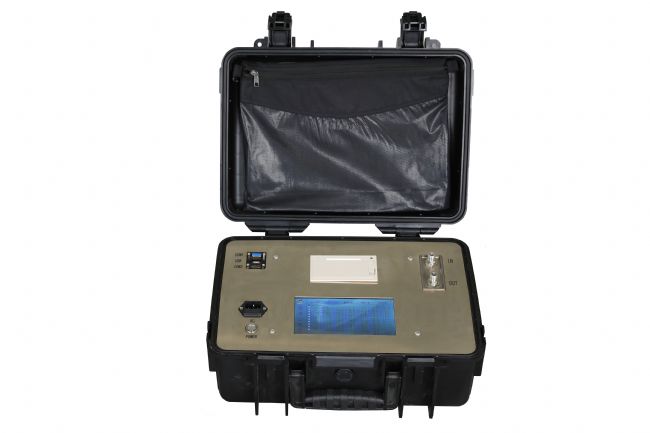

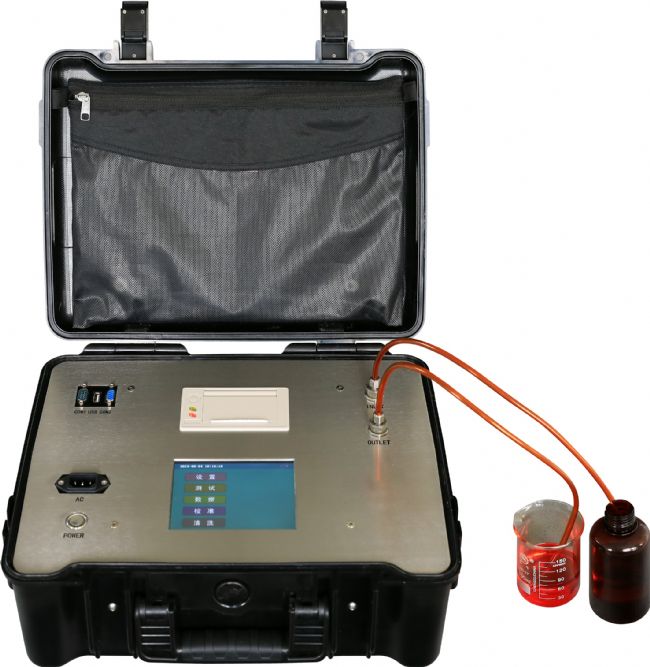

Product Image

Features

1. Photoresistance (shading) test principle specified by the International Hydraulic Standards Committee
2. High-precision laser sensor, wide test range, stable performance, low noise, high resolution
3. High-precision metering pump sampling method, adjustable sampling speed, high sampling volume accuracy
4. The pipeline uses 316L and PTFE materials to meet the testing of various organic solvents and oil products
5. For laboratory or field measurement, optional pressure reducing device for online high pressure measurement
6. It can be connected to the pressure chamber to form positive / negative pressure to realize the detection and degassing of high viscosity samples.
7. Can use a variety of sampling containers such as standard sampling bottles, sampling cups, or directly connect to the hydraulic system for online testing to meet the testing requirements of different industries
8. Built-in multiple calibration curves, compatible with all common standards at home and abroad for calibration
9. Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E and other commonly used standards. 10. Supports custom standard tests, and can set required standards according to customer needs
10. 1000 particle size channels can be set for particle size analysis
11. Built-in data analysis system, can automatically determine the sample level according to the standard, with automatic data processing and printing functions. Color touch screen operation, Chinese input, with preset, input, modification, storage functions, easy and fast operation
12. With RS232 interface, can be connected to a computer or a laboratory platform for data processing, and USB can also be used for data storage
13. Built-in lithium battery, suitable for field work, can be used without external power supply
14. Embedded design, high-strength shell, easy to carry, suitable for all types of construction machinery

Technical Parameters

1. Light source: semiconductor laser
2. Particle size range: 0.8-600um (depending on different sensors)
3. Detection channel: 8 channels
4. Sensitivity: 0.1um
5. Sampling volume: 0.2-1000ml
6. Sampling accuracy: better than ± 1%
7. Cleaning speed: 5-80mL/min
8. Sampling speed: 5-80mL / min
9. Cleaning volume: can be set between 0ml~90ml
10. Counting accuracy: ±＜ 5%
11. Resolution: ≤10%
12. Repeatability: RSD <2%
13. Limit coincidence error: 1200-40000 capsules / mL
14. Viscosity Range: ≤350cSt
15. On-line detection interval: arbitrarily set
16. Test sample temperature: 0℃~80℃
17. Pressure range: low pressure 0-6bar, high pressure 5-420bar (optional pressure reducing valve)
18. Power supply: AC100-240V, 50 / 60Hz
19. Battery capacity: 5200mAh
20. Battery runtime: 6-8 hours
21. Dimensions: 410 × 320 × 165mm
22. Weight: 8.5kg
