FPC-L3 Oil Liquid Particle Counter

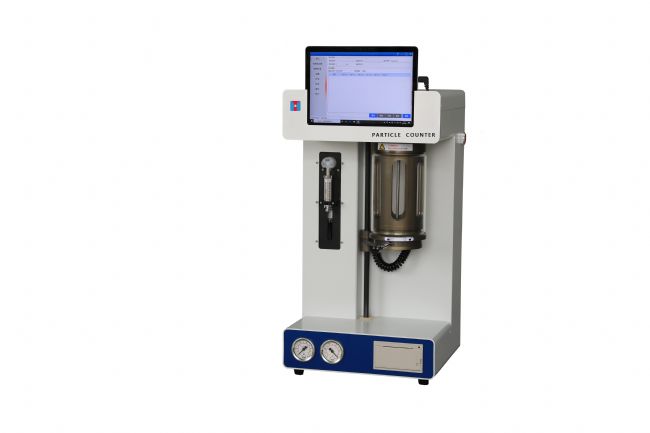

Product Image

Product Description

FPC-L3 Oil Particle Counter,based on GB/T18854-2002-(ISO11171 -1999) standard. Use shading counting principle ,meeting international standard. Can respond with fast,precise,reliable and repeatable result and complete pollution monitoring analysis report, suitable to detect degree of contaminated particle in hydraulic oil, lubricating oil, fire-resistant fuel, insulating oil and turbine oil . Widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing.

Feature

1. Use laser shading principle which International Hydraulic Standards Committee specified.

2. Strict sensor, large test range, stable function, low noise and high resolution.

3. With the advanced sampling system of high pressure injector,sample volume can be set free, stable sampling speed and strict sampling precision.

4. Build-in sampling system combine positive pressure with negative pressure, can remove the bubble in the sample, can test various viscoelastic sample.

5. Build-in pressure sensor,can set pressure value,and judge inner air pressure automatically,ensure safety.

6. With air filter system, avoid any pollution to sample.

7. Build-in SAE4059E、SAE4059F、SAE4059F-CPC、NAS1638、ISO4406、GB/T14039、GJB-420A、GJB-420B、ГOCT17216-71、DL/T1096、SAE749D、JBT9737.1、QC/T29104-201、DL-T432-2018、HH005-2018 standard, allow unlimited number of self-set standards ,can set all the standards that user specified.

8. Build-in data analyze system,one test can give all standard test data and contamination grade.

9. With multiple calibrated curves which apply to calibrate standards in common use,can single channel and multiple channel automatic calibration.

10. Particle size can be set arbitrarily,build-in nearly ten thousand of particle size setting,easy for granularity level analyze.

11. Can satisfy test requirement to various profession, can use standardized sample bottle or other container

12. Optional : viscosity,dielectric constant,moisture and temperature sensor module,can multiple parameter detection.

13. Windows operation interface,build-in database,unlimited data storage, multiple searching methord : detection standard,sample name,sample batch number,testers,test time.

14. Multi-level account managing, account authority can be set separately, support digital signature.

15. Test result can be printed,exported in pdf、excel format,transported through USB,wifi .

Technical Parameters

1. Optical system : shading principle

2. Optical source: laser

3. Size range: 0.8μm-600μm

4. Channel number : 64

5. Sensitive : 0.8um（ISO4402）or 3um（c）（GB/T18854 ISO11171）

6. Resolution: <10%

7. Repeatability: RSD<2%

8. Dynamic viscosity: ≤400 cSt

9. Sampling volume: 0.2-6000ml,0.1ml interval

10. Sampling speed range: 5ml/min-80ml/min

11. Sampling precision: ≤±0.5%

12. Barometric chamber : Barometric chamber combine positive pressure with negative pressure ,can remove the bubble in the sample, can test high viscoelastic sample

13. Max.negative pressure : -0.08MPa

14. Max.positive pressure : 0.8 MPa

15. Coincidence error limit: 12000-40000 particals/ml

16. Temperature collection T (Optional) :-40~100℃ ,Precision : ±0.5℃

17. Moisture (Optional) : aw：1～100%RH ,Precision :±1%RH

AH：1～300ppm ,Precision :±10ppm

18. Dielectric constant (Optional) :1-6

19. Viscosity (Optional) : 0.5～50cP, Precision :±2%（>10cP），±0.2c（<10cP）

20. Power : 110~245V AC、50Hz，70W
21.

External Size : 340mm╳310mm╳730mm

22. NW：25kg
