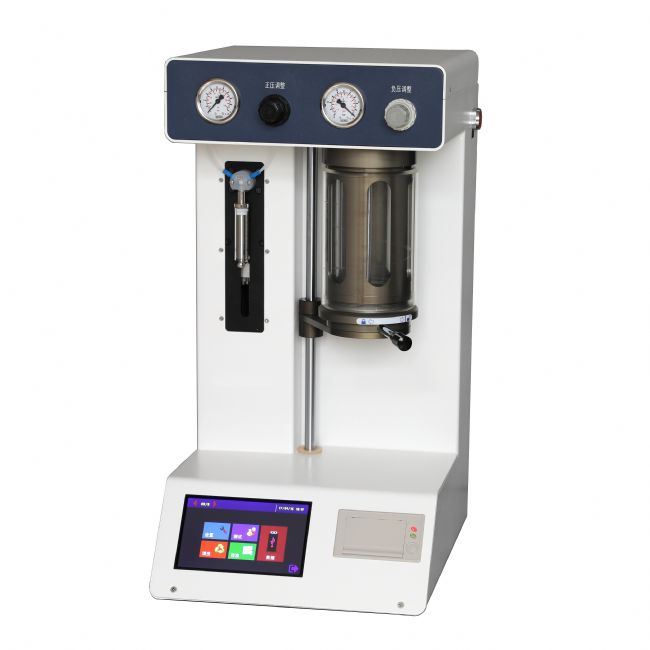

- FPC-L2 Oil Particle Counter
Product Image
Product Description
FPC-L2 Oil Particle Counter ,a updated product based on FPC-L, based on GB/T 18854-2002 (ISO11171-1999) standard. Use shading counting principle,meeting international standard. Can respond with fast,precise, reliable and repeatable result and complete pollution monitoring analysis report, suitable to detect degree of contaminated particle in hydraulic oil, lubricating oil, fire-resistant fuel, insulating oil and turbine oil . Widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing.
Feature
1. Use laser shading principle which International Hydraulic Standards Committee specified.
2. Strict sensor, large test range, stable function, low noise and high resolution.
3. With the advanced sampling system of high pressure injector,sample volume can be set free, stable sampling speed and strict sampling precision.
4. Build-in sampling system combine positive pressure with negative pressure, can remove the bubble in the sample, can test various viscoelastic sample.
5. Build-in pressure sensor,can set pressure value,and judge inner air pressure automatically,ensure safety.
6. With air filter system, avoid any pollution to sample
7. With multiple calibrated curves which apply to calibrate standards in common use
8. Build-in useful standards such as GJB-420B、NAS1638、ISO4406 、SAE4059E , OCT17216-71 and so on. It also can self-set standards, we also can set all the standards that user specified.
9. Build-in data analyze system,one test can give all standard test data and contamination grade
10. Particle size can be set arbitrarily,build-in nearly ten thousand of particle size setting,easy for granularity level analyze.
11. Can satisfy test requirement to various profession, can use standardized sample bottle or other container
12. Automatical color touch screen controller,support Chinese-English operation,easy operation.
13. Single channel and multiple channel calibration, automatic calibration.
14. Rs232 interface, can get to computer or Lab platforms
15. Equipped with large capacity of data storage and printing function,can store 1000 data and support with USB disk data storage.
Technical Parameters
1. Optical source: laser
2. Size range: 0.8μm-600μm
3. Channel number : 16
4. Resolution: <10%
5. Repeatability: RSD<2%
6. Dynamic viscosity: ≤400 cSt
7. Sampling volume: 0.2-1000ml
8. Sampling precision: ≤±0.5%
9. Sampling speed range: 5ml/min-80ml/min
10. Negative pressure: ≤0.08Mpa
11. Positive pressure: ≤0.8Mpa
12. Max. particle concentration：20000-40000 particle/mL
13. Power:110~245V AC、50Hz，70W
14. Exterial Size：340mm╳410mm╳650mm
-
