Nano-100 Micro-Spectrophotometer

Product Description

•User-friendly software, easy to use
Graphical software operation, the interface is more intuitive, and the results can be directly exported, which is convenient for data saving, viewing and output.
•Micro-volumes measuring
Only require 0.5~2 μl sample to accurate determinate of nucleic acids, proteins.
•Fast and easy measurements
Turn on and instantly measure without lamp warm up time; Easy measurement within 5 sec.
•Long life's Xenon flash lamp
Xenon flash lamp, 10 flashes, up to 10 years, no dilutions and expensive consumables.
•High detection concentration
The highest concentration of the measurable sample is 4500 ng/μl (dsDNA as an example), and the sample basically does not need to be diluted.
•Ease of use
Spot the sample directly on the base without dilution or cuvette, the measurable sample concentration is 50 times that of a conventional UV-Vis spectrophotometer, and the result is directly output as the sample concentration.
•Nano-100 Unique Advantages:

1. Turn on and instantly measure without lamp warm up time;

Full scan capability from 200-800 nm within 5 sec;

2. Detects Nucleic Acids up to 4500 ng/ul (dsDNA);

3. 3864-Element linear silicon CCD array;

4. Need to connect computer;

5. Software compatibility: WinXP, Win7, Win8

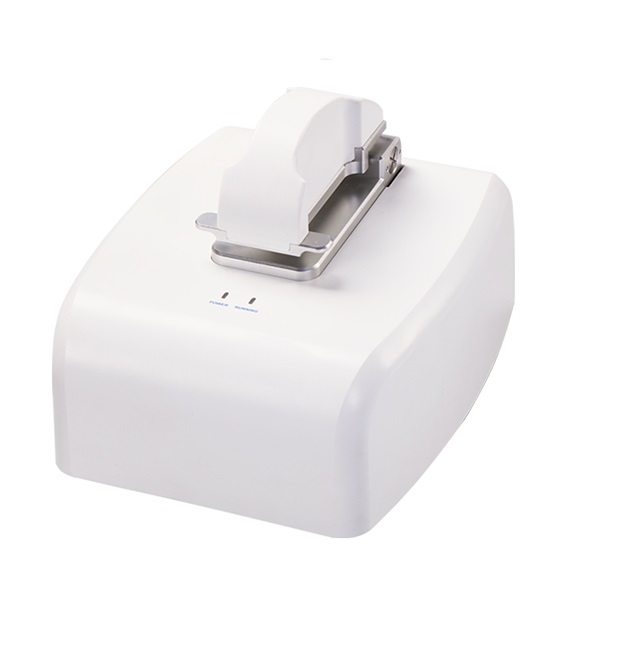

Product Image

Technical Parameters

			Model
			Nano-100

			Wavelength range
			200-800 nm

			Minimum sample size
			0.5-2.0 μl

			Path length
			0.2 mm 1.0 mm

			Light source
			Xenon flash lamp

			Detector type
			2048-Linear CCD array

			Spectral resolution
			1 nm

			Spectral resolution
			≤3 nm

			Absorbance precision
			0.003Abs

			Absorbance accuracy
			1%（7.332Abs at 260 nm)

			Absorbance range
			0.04 - 90 A

			Detects nucleic acid up to
			2~4500 ng/μl (dsDNA)

			Measurement time
			<5 S

			Data output
			Connect PC

			Sample pedestal material
			Aluminum alloy and Quartz fiber

			Operating voltage
			DC 24 V 2 A

			Operating power
			20 W

			Standby power
			5 W

			Dimension (W×D×H) mm
			200×250×166

			Weight
			2.6 kg

			Software compatibility
			WinXP, Win7, Win8

Model	Nano-100
Wavelength range	200-800 nm
Minimum sample size	0.5-2.0 μl
Path length	0.2 mm 1.0 mm
Light source	Xenon flash lamp
Detector type	2048-Linear CCD array
Spectral resolution	1 nm
Spectral resolution	≤3 nm
Absorbance precision	0.003Abs
Absorbance accuracy	1%（7.332Abs at 260 nm)
Absorbance range	0.04 - 90 A
Detects nucleic acid up to	2~4500 ng/μl (dsDNA)
Measurement time	<5 S
Data output	Connect PC
Sample pedestal material	Aluminum alloy and Quartz fiber
Operating voltage	DC 24 V 2 A
Operating power	20 W
Standby power	5 W
Dimension (W×D×H) mm	200×250×166
Weight	2.6 kg
Software compatibility	WinXP, Win7, Win8
