- Shenchen DC 24v Mini step motor peristaltic pumps, peristaltic dosing pump
- Product Detail
- Company Profile
Product Introduction
SP-MiniPump with 42 stepper motor drive, 3 LED display the current motor speed. Toggle switch and digital knobcontrol the start/stop, direction and speed. The pump have external control interface to achieve external control.

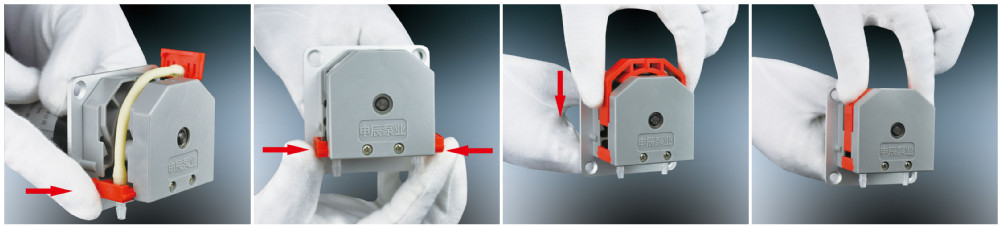

Tubing Installation Procedure
Function and Features
1. 304 stainless steel housing, resist corrosion.
2. Toggle switch and digital knob control, easy operation.
3. Support RS485 with MODBUS protocol, convenient to connect with PLC.
Technical Specifications of peristaltic dosing pump dc24v:
|
Flow rate range |
0.0024-190mL/min |
|
Speed range |
0.1-300rpm, reversible |
|
Speed resolution |
0.1rpm |
|
Flow rate resolution |
0.01ml |
|
Motor type |
42 stepper motor |
|
Display |
LED |
|
Control method |
Toggle switch and digital knob |
|
External control |
0-5V, 0-10V, 4-20mA; RS485 communication interface, MODBUS protocol. |
|
Power consumption |
<15W |
|
Power supply |
24V DC, with power adapter. |
|
Environment temperature |
0~40℃ |
|
Relative humidity |
<80% |
|
Drive dimension |
136*113*108mm |
|
Drive weight |
1.98kg |
|
IP rate |
IP31 |
Product Composition & Flow Rate
|
Drive |
Pump Head |
Channels |
Tubing |
Flow Rate ( mL/min) |
|
SP-MiniPump |
MiniPump 01 |
1 |
13# |
0.0024--8.28 |
|
14# |
0.0112--33.88 |
|||
|
16# |
0.0394--114.31 |
|||
|
25# |
0.0652--190.00 |
|||
|
MiniPump 02 |
2 |
1*1 |
0.005--15.01 |
|
|
2*1 |
0.018--54.63 |
|||
|
2.5*1 |
0.0256--76.84 |
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
