Product Description
24 volt peristaltic pump head

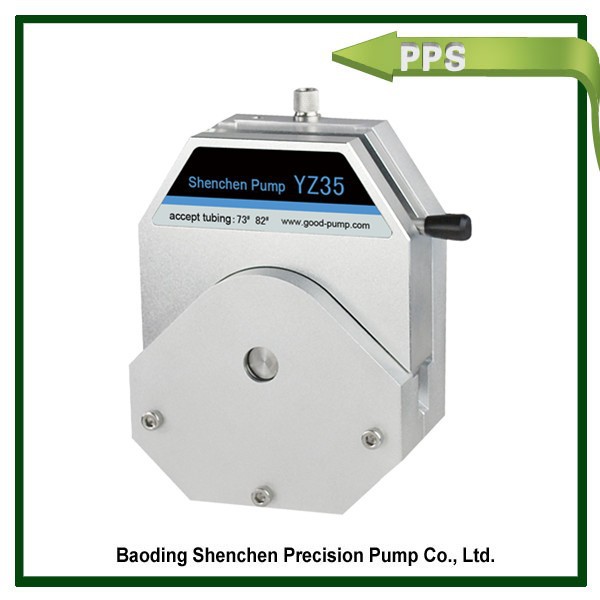

YZ35 industrial pump head adopts aluminum alloy as the material of the shell, with the stainless steel roller assembly, to achieve high precision transmission liquid. Adaptive pipe clamping mechanism, allowing you to easily clamp hose.
Product Features
24 volt peristaltic pump head

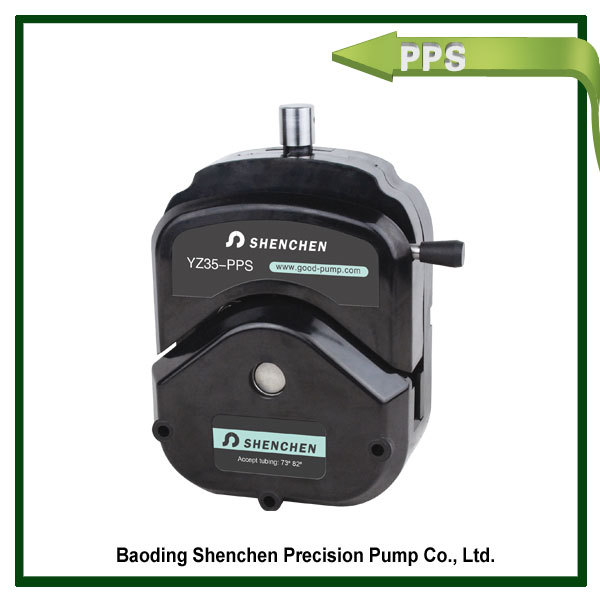

1.Pump head housing material – PPS(polyphenylene sulfide)
PPS material owns high molding accuracy and perfect rigidity. This kind of pump head bears long-term running under strong load and transfers fluid with high precision. It has high temperature resistance and perfect corrosion resistance, especially in the strong chemical corrosion resistance, like organic solvent, etc.
2.Pump head roller material - 304 stainless steel
Corrosion resistance, not easy to rust, high sanitation grade, low repair rate, thereby reducing maintenance cost.
3.You can use a variety of different size of the hose, to ensure that the different flow range to achieve the same transmission precision.
YZ35 Industrial pump head,you can use 2 kinds of hose: 73#,82#
Reference flow range: 1.23-12000ml/min,wide application.
Technical Specificat
Technical Specifications
24 volt peristaltic pump head
|
Model
|
Reference flow range
(ml/min)
|
Suitable tubing
|
Wall thickness
(mm)
|
Weight(kg)
|
|
YZ35
|
600~12000
(60~600)
|
73#,82#
|
3.5
|
2.69
|

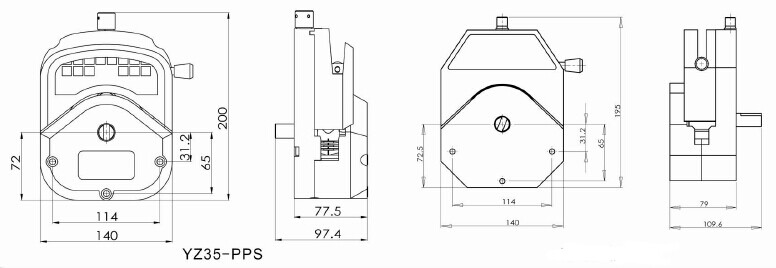

Dimension
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
