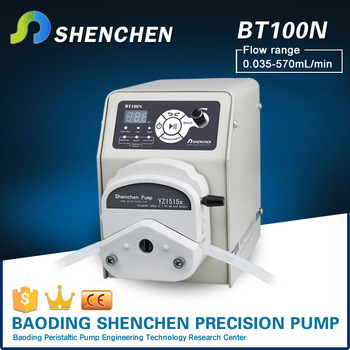

Product Introduction
Standard peristaltic pump with ultra-quiet working performance. It is widely used in laboratory and complete analytical instruments.
CE confirmed peristaltic pump
Function and Features
1. 3 LED displaythe current speed.
2. Mask keypad control the start/stop, speed and direction.
3. Load shedding memory function.
4. 60 seconds test function, can set the repeat numbers for simple dispensing.
5. The key of full /empty help you to quickly discharge the air from tubing and fill the fluid.
6. Indicator display the external control working mode and direction.
7. Support RS232 and RS485, the pump can be connected with PC to reach dispensing and filling function.
8. Special for laboratory use.
Technical Specifications of liquid handling systerm tube pump:
|
|
BT100N |
BT300N |
BT600N |
|
Flow rate range |
0.00034-570ml/min |
0.00034-1330ml/min |
0.00034-2280ml/min |
|
Speed range |
0.5-150rpm |
0.5-350rpm |
0.5-600rpm |
|
Speed resolution |
0.1rpm, reversible |
||
|
Display |
LED |
||
|
Control method |
Mask keypad |
||
|
External control signal |
Start/stop control: TTL level 0-5V, 0-10V, 4-20mA signal; RS232, RS485 communication interface |
||
|
Power supply |
AC110V±10%, 50Hz/60Hz AC220V±10%, 50Hz/60Hz |
||
|
Drive dimension |
183*131*194mm |
183*131*194mm |
208*131*194mm |
|
Drive weight |
4.02kg |
4.02kg |
4.94kg |
|
Power consumption |
<45W |
||
|
Environment temperature |
0-40℃ |
||
|
Relative humanity |
<80% |
||
|
Output pressure |
0.3Mpa |
||
|
IP rate |
IP31 |
||
Product Composition and Flow Rates
|
Drive |
Speed Range |
Pump Head |
Tubing Size |
Flow Rate ( mL/min) |
|
BT100N |
0.5-150rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.035~570 |
|
YZ2515x |
15#, 24# |
0.85~435 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.00034-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.12-375 |
||
|
BT300N |
0.5-350rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.035~1330 |
|
YZ2515x |
15#, 24# |
0.85~1015 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.00034-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.12-875 |
||
|
BT600N |
0.5-600rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.035~2280 |
|
YZ2515x |
15#, 24# |
0.85~1740 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.00034-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.12-1500 |

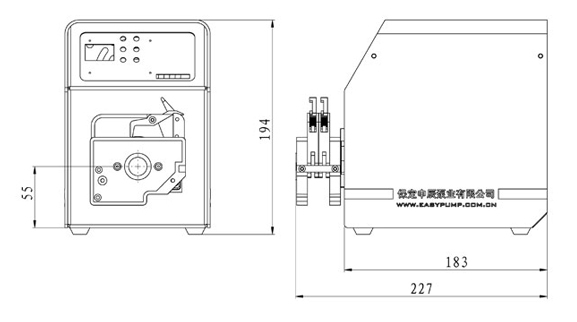

Dimension
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
