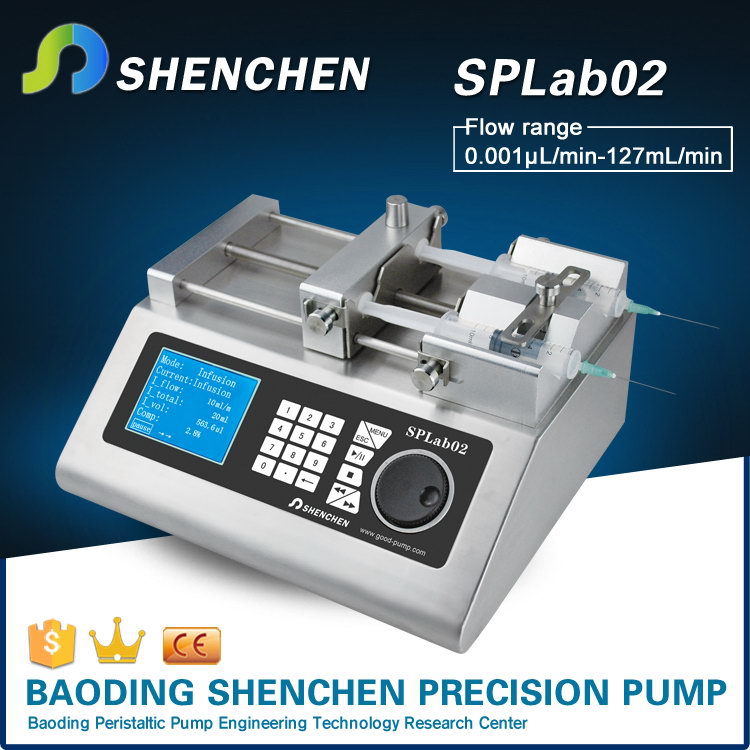

Pictures of easy operation liposuction pump:
Product Introduction
Single and dual channel syringe pump with 6 different working mode, stainless steel housing, large colorful LCD screendisplay, friendly operation interface, can load different size syringe and injectors. Suitable for micro flow rate, high precision liquid transferring. ( Non-medical)
Functions & Features
1. Color LCD display: Friendly interface, large-screen LCD display every technical parameter in real time.
2. Input injector inner diameter function: Can choose the injector from the list or input the injector inner diameter directly.
3. Two measurement mode for selection: Infusion volume---Infusion rate, Infusion volume---Infusion time.
4. Display the infusion volume in real time, also have calibration function.
5. Customer can check and change the parameters during the pump working.
6. Load-shedding memory function.
7. 6 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous and additional mode ( infusion/withdrawal, then exclude bubble). The parameters of each working mode saving separately.
8. Protection function: The pump will stall and give an alarm when the drive structure of the pump is blocked.
9. External control interface: Switch signal control start/stop.
|
Channel |
1, 2 |
Max step rate |
0.937 sec/micro step |
|
Working mode |
Infusion/withdrawal |
Min linear rate |
5μm/min |
|
Syringe size |
10μl--140ml |
Max linear rate |
132mm/min |
|
Infusion volume per micro step |
0.026μl |
Setting mode |
Membrane keypad and rotary encoded switch |
|
Flow rate |
0.831nl--152.9ml/min |
Display |
320*240 color LCD screen |
|
Accuracy |
≤±0.5% |
Power supply |
AC 220V ± 10%, 50/60Hz AC110V ± 10%, 50/60Hz |
|
Max linear force |
8.5kgf |
Working condition |
Temperature: 0-40℃ Relative humidity: <80% |
|
Distance per micro step |
0.078μm |
Dimension |
282*210*132mm 282*250*151mm |
|
Min step rate |
0.035ms/micro step |
Weight |
4.84kg, 5.6kg |
|
Syringe Specification |
Inner Diameter(mm) |
Flow Rate (μl/min-ml/min) |
Linear Rate (μl/min-mm/min) |
|
50μl |
1.03 |
0.004-0.110 |
5-132 |
|
1ml |
4.61 |
0.083-2.203 |
|
|
2.5ml |
7.28 |
0.208-5.492 |
|
|
5ml |
10.30 |
0.417-10.993 |
|
|
10ml |
14.57 |
0.834-21.997 |
|
|
25ml |
23.03 |
2.083-54.958 |
|
|
50ml |
32.57 |
4.166-109.921 |
|
|
60ml |
32.57 |
4.166-108.310 |
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
