- 15~80kgs vacuum freeze dryer
- Product Detail
- Company Profile
- Pre-freeze dried in situ,high transmittance plexiglass viweing window
- LCD display,PID control,the drying vurve;
- Square tray is not easily deformed,easy to operate,easy to clean;
- Can be configured inflation valve,ddsposable dry insert gas;
- With tamponade,vacuum seal;
- The LCD: shelf temperature curve,the cold trap temperature curve,
- Sample temperture curve,the curve of the degree of vacuum and the composite curve,
- 16 programs can be steored,
- Shelf temperature differences ± 1 °C, dry effect uniform
- Freeze dryer program parameters can be modified during operation,
- And record the final drying curves,
- Circuit system using PID control,
- Can connect the computer real-time display of the freeze-dried curve.
0.2-0.5 square meter pilot freeze dryer
(Silicone heating)Pilot freeze dryer

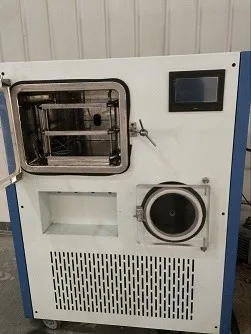

SJIA-20F/30F/50F/100F/200F ,SJIA series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production. The machine is with shelf heating function, using PID technology which is accurate temperature control, human-computer interface using LCD screen with curves and data,
Main features:
Silicone Oil Heating Freeze Dryer Technical indicators
|
Model /Specification |
SJIA-20F |
SJIA-30F |
SJIA-50F |
SJIA-100F |
SJIA-200F |
|
Freeze-drying area(m2) |
0.24 |
0.3 |
0.51 |
1 |
2 |
|
Water capture capability(kg/24H) |
6kg |
7kg |
10kg |
15kg |
30kg |
|
Cold trap temperature(℃) |
<-75℃ |
||||
|
Vaccum(Pa) |
|||||
|
Tray temperature(℃) |
-50℃ to +70℃ |
||||
|
Trays number |
2+1 |
2+1 |
3+1 |
6+1 |
5+1 |
|
Trays size (mm) |
300*400 |
475x355 |
475x355 |
475x355 |
500*900 |
|
Materail(L) |
6L |
7L |
10L |
15L |
30L |
|
Vials Ø12mm (pcs) |
2000 |
2600 |
3600 |
7920 |
12600 |
|
VialsØ16mm |
960 |
1440 |
2000 |
4092 |
6800 |
|
Vials Ø22mm |
660 |
728 |
1050 |
2112 |
3600 |
|
Cooling model |
Air cooling (water cooling Optional |
||||
|
Voltage(V) |
220V/50Hz 380V/50Hz |
||||
|
Machine size(mm) (L*W*H) |
1050*680*1420 |
1050*680*1420 |
915*1245*1700 |
1100*900*1900 |
2100*1200*2200 |
|
N/W(kg) |
|||||
|
Power(W) |
300kg |
400kg |
550kg |
950kg |
2400kg |
|
Top-press(optional) |
1.5kw |
2.5kw |
3.5kw |
7kw |
10kw |
-
Ningbo Sjialab Equipment Co.,ltd is one of the leading laboratory instruments manu-facturers and exporters lyophilizer,thermostatic bath,homogenizer,sonicator,centrifuge etc. laboratory and scientific instruments.
There Laboratory ,scientific Instruments can be used in general laboratory,sterilizing / clean room,biotechnology or college laboratory.
Our company has passed ISO9001:2000 International Quality and Management System Attestation, and received CE Security Attestation Certificate and Medicare Appliances-Producing License.We share great pretisge from our customers because of our excellent quality and service.
Our goal is to be the most professional in laboratory products in China.
Excellet service derives from speciality.
