- LABOAO 0.08㎡ Benchtop Manifold Top Press Lab Freeze Dryer
- Product Detail
- Company Profile
LFD-10D Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top manifold top press equipment.
Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.
FEATURES:
1. CFC Free refrigeration
2. LCD display drying curves, English interface
3. Big opening of condenser, condenser with pre-freezing function
4. low noise compressor, good efficiency,long service life
5. Condenser and operation panel are all stainless steel

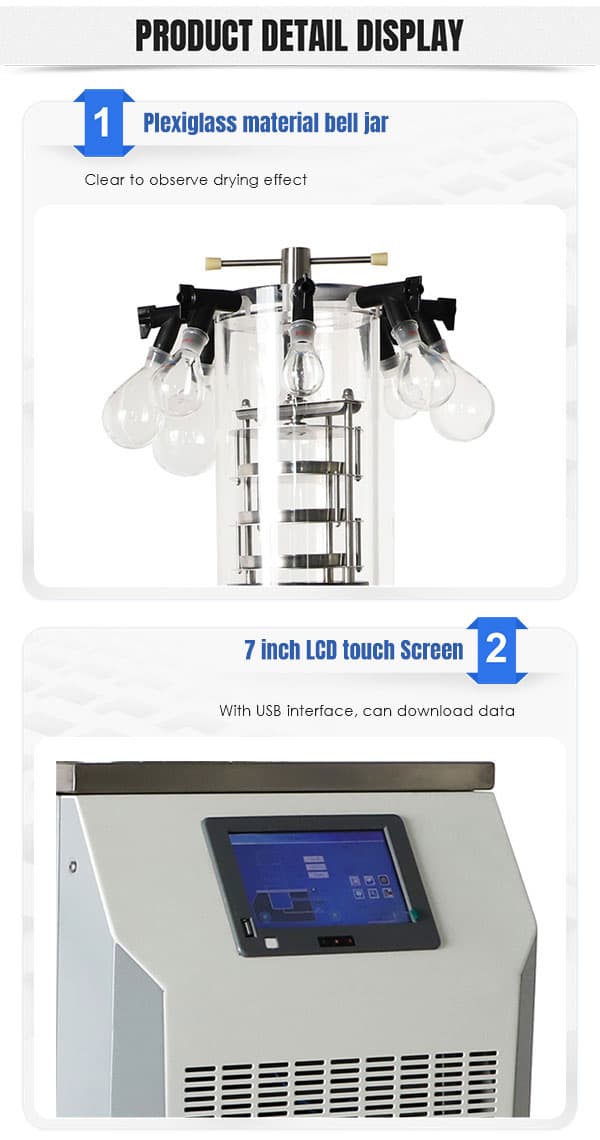

6. Drying Chamber with organic glass is safe and visible

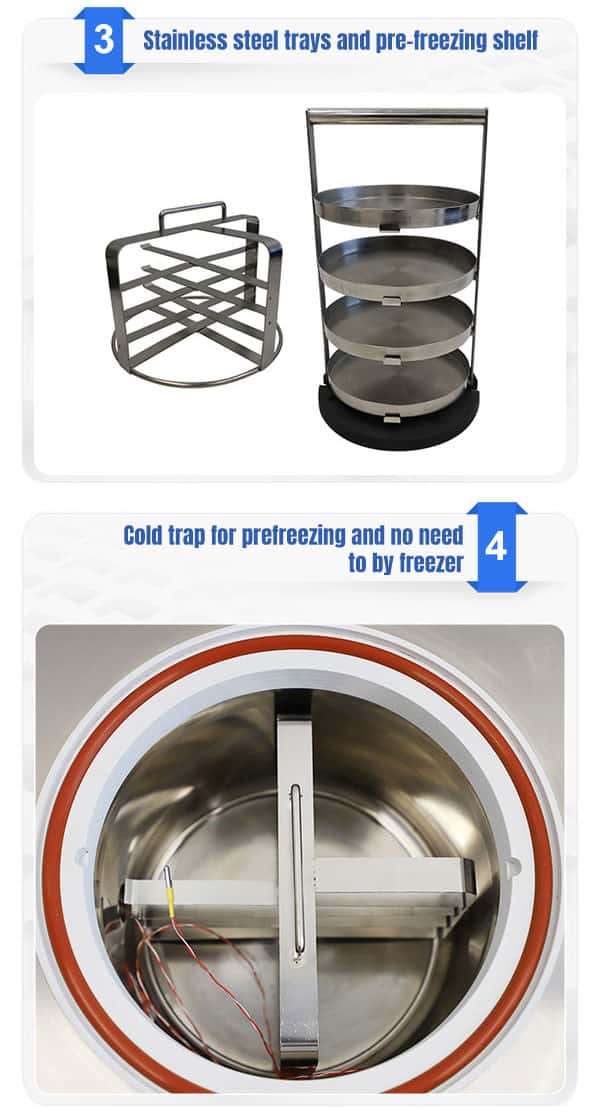

7. Shelf and tray are stainless steel, tray spacing can be customized
8. Small volume , easy and convenient operation
9. Nitrogen valve is optional
10. Eutectic point test device is optional
11. Communication interface is optional
Specification:
|
Model |
LFD-10D |
|
Freeze drying area |
0.08m2 |
|
Condenser capacity |
3-4 L /24h |
|
Condenser temperature |
-55℃ (-80 ℃ optioanl) |
|
Vacuum degree |
< 10 Pa |
|
Material tray |
¢180mm, 3 layers |
|
Bulk capacity |
0.8 L, 10mm thickness |
|
Vial capacity Φ12mm |
560 pcs |
|
Vial capacity Φ16mm |
285 pcs |
|
Vial capacity Φ22mm |
165 pcs |
|
Style of press |
By hand |
|
Manifold |
with 8 ports |
|
Flask |
1000ml, 500ml, 250ml, 100ml |
|
Cooling |
Air，draughty,ambient temperature ≤25℃ |
|
Voltage |
220V ,50 Hz; 110V, 50Hz; 110V, 60Hz |
|
Power |
700W |
|
Host dimension |
460*625*(370+465) mm |
|
Host weight |
41 kg |
-
Zhengzhou Laboao Instrument Equipment Co., Ltd (LABOAO) is a high-tech enterprise integrating R&D, production, sales, import and export, and is a leading laboratory equipment solution provider in China. LABOAO is headquartered in Zhengzhou, China. It has a group of excellent management and technical personnel who strive for excellence and constantly pursue progress and innovation. After fifteen years of hard work, it has achieved sustained and steady development, and its products are exported to Europe, America, Southeast Asia, the Middle East, South Africa, etc. 150 countries, we are working hard to establish a global regional service agency to provide better services and products for global customers.
The company has always adhered to the corporate tenet of "innovative technology, life first", focusing on laboratory research, life science, biomedical engineering and other fields, focusing on continuous innovation and development, improving the technical content of products, enriching product categories, realizing product upgrades, and gradually strengthening the enterprise. Core competitiveness, LABOAO regards product quality as the vitality of the enterprise, all our products have undergone strict testing and quality inspection, and have established a set of strict internal quality control system in accordance with international quality standards, and meet strict international standards. So far, the company has passed ISO9001 quality management system certification, EU CE, SGS, TUV, CNAS and other certifications.
LABOAO's main business involves laboratory instruments/consumables, life science instruments, chemical analysis instruments, optical instruments, medical equipment, drug inspection instruments, agricultural instruments, food inspection instruments and other industry-related instruments. Our products are widely used in laboratories, scientific research institutions, universities, chemical companies, hospitals, new energy, agriculture, food, metallurgy and mining, construction, petroleum and other industries.
The company introduces world-class automated production equipment and production technology, and continuously expands production capacity to meet customer needs. The investment of advanced production equipment and software facilities makes the enterprise more international standardization and standardization. LABOAO actively carries out various cooperations such as OEM and ODM with world-renowned enterprises. In continuous practice and application, LABOAO will continue to provide high-quality products and services to global customers.
Our company has 78 employees and 20 R&D teams. More than 85% of the company's employees have more than three years of professional foreign trade experience. 10% of the annual sales are focused on product development and improvement. We believe that only excellent teams can High quality service is good for customers.
We advocates the corporate spirit of "integrity, dedication, integrity, cooperation". With its rich network marketing experience, corporate strategic management and talent advantages, the company constantly explores the past, forms an international channel brand, and incubates international brands with Internet thinking. Mission, strive to achieve our vision of redefining the premium and impact of Chinese products in the global market!
