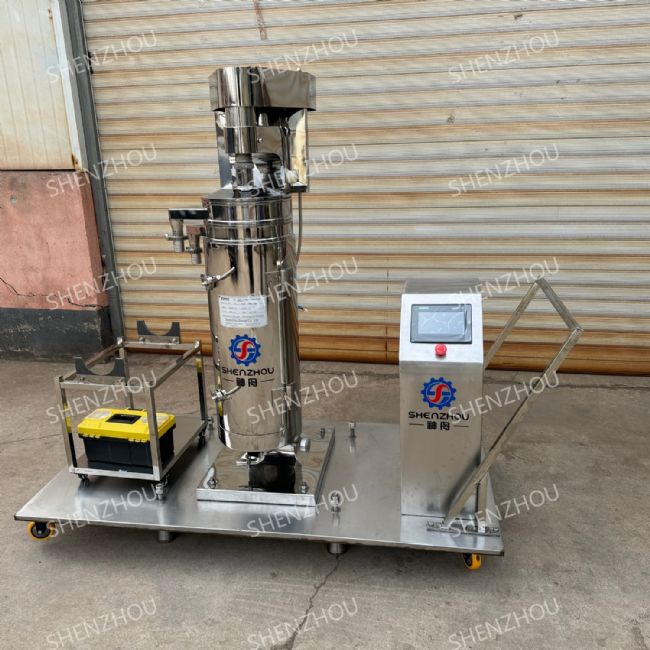

GF Type Tubular Centrifuge GF type tubular centrifuge is for water-oil-solid separation process ,Widely used for plant oil.animal oil,waste engine oil separation ,Such as VCO ,Palm oil Avocado oil,Fish oil ,Chicken oil.Beef oil Olive oilSeabucktorn oil.Tubular Centrifuge is manual discharging machine , so it is suitable for solid content lower than5%.After separation , the solid phase will collect in the rotation bowl ,need to stop centrifuge .for solid discharge .
Typical Applications
• Harvesting biomass
• Clarifying process liquids
• Separating liquid products
• Fractionation of animal blood
• Animal blood processing
• Bioremediation
• Processing of granular, crystalline & fibrous suspensions
• Separation of filterable & non-filterable sludges
GF Model-Three Phase: Used for separation of various kinds of emulsions, especially for liquid-liquid separation with little difference in weight between two phases and liquid-liquid-solid separation containing a small amount of impurities. For example, transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification. Purification of various micro powder materials various oral and solutions, separation of plasma and extraction of plasma from animal blood, purification of edible oil, caipan soaking solution, tea polyphenols, soybean phospholipid concentrate, oil-water separation and sewage treatment, etc.
|
Model
|
GQ45
|
GQ75
|
GQ105
|
GQ115
|
GQ125
|
GQ150
|
|
|
GF45
|
GF75
|
GF105
|
GF115
|
GF125
|
|||
|
Bowl
|
Inner
Diameter(mm) |
45
|
75
|
105
|
114
|
125
|
142
|
|
Speed(r/m)
|
0~30000
|
19000
|
16300
|
16300
|
15000
|
13400
|
|
|
Volume(L)
|
0.36
|
2.2
|
6
|
7
|
8
|
10
|
|
|
G-force
|
21168g
|
15200g
|
15620g
|
17000g
|
15700g
|
14300g
|
|
|
Dia of nozzle(mm)
|
2,3
|
3,5,7
|
6,7,8
|
7,8,9
|
8,9,10
|
8,9,10
|
|
|
Feeding Pressure(Mpa)
|
>0.05
|
>0.05
|
>0.05
|
>0.05
|
>0.05
|
>0.05
|
|
|
Max throughput(L/H)
based on water |
100
|
600
|
1200
|
1300
|
1500
|
2500
|
|
|
Motor
|
Model
|
Series motor
|
Y90S-2
|
Y90L-2
|
Y100L-2
|
Y100L-2
|
Y100L-2
|
|
Power(KW)
|
0.55
|
1.5
|
2.2
|
3
|
3
|
3
|
|
|
Speed(rpm)
|
0-4500
|
2840
|
2840
|
2880
|
2880
|
2880
|
|
|
Weight(KG)
|
90
|
260
|
500
|
520
|
550
|
600
|
|
|
Size(L*W*H)mm
|
480*460*800
|
450*760*1120
|
600*900*1600
|
600*900*1600
|
600*900*1600
|
650*950*1600
|
|
-
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.
