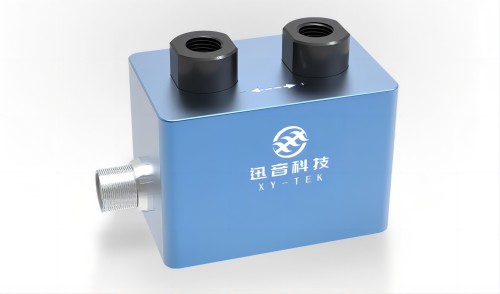

TGU series ultrasonic flow sensors/flow meters adopt U-shaped piping. Through NPT threaded fittings, they can be connected to various types of piping such as PVC, silicone, PE, PUR, etc. The TGU series ultrasonic flow sensors/flow meters are compact and can output results without external circuitry. Ultrasonic flow sensors/flow meters can be integrated into liquid flow paths to measure very low flow rates with high accuracy up to ±0.1mL/min.The TGU series of ultrasonic sensors are based on the ultrasonic time-difference method technology and can be configured as flow switches or for bubble detection, as well as for liquid filling processes.
Features:
·Highly accurate measurement of very low flow rates
·Accuracy can up to ±0.1mL/min
·Support bi-directional measurement and calculate fluid volume
·Equipped with bubble detection, quantitative filling, flow switch function
·Circuitry is integrated within the flow sensors/flow meters, no need for external calculation and processing systems
·No clogging, no steering, no dead space, low fluid pressure loss.
·Standard outputs available for seamless integration into customer systems.
Industry Applications:
·Medical device testing systems: such as testing of blood dialyzers, artificial hearts, organ transplantation systems, artificial heart-lung machines, blood pumps.
·Biopharmaceutical processes & equipment: such as reaction vessels, fermenters, cell culture equipment, vaccine production, tangential flow filtration systems, liquid chromatographs.
·Fluid monitoring in manufacturing processes: such as high purity water transfer lines.
·Food & beverage processing: such as milk, juice, beer production processes.
·General industry: such as filling equipment, spraying equipment, cooling systems, lubrication systems, oil piping systems
·Scientific laboratory systems
·Water and wastewater treatment systems
