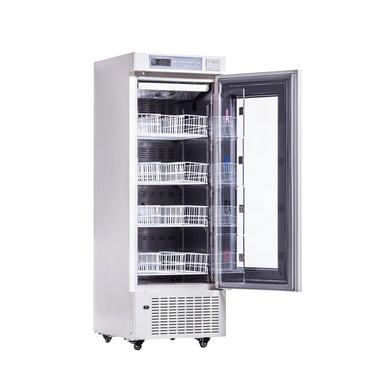

Blood bank refrigerator with single door. Cpacity ranges:110L,160L, 210L. It is used to store blood, vaccine, reagent and special test materials. Sutable for hospitals, blood stations, CDC, research institute, chemical, military, electronics
1. 4 sensors design: make sure the precise monitoring and programming.
2. Foam-glass door, easy to observe, also keep a better cooling temperature.
3. Forced air refrigeration system, ensure inner temperature constant and uniform.
4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.
<
| Model |
MKR-4V110 |
MKR-4V160 |
MKR-4V210 |
| Capacity |
110L |
160L |
210L |
| Temp. Range |
4 ±1℃ |
| Temp. Accuracy |
0.1℃ |
| Control System |
Microprocessor control |
| Display |
LED display |
| Audio and visual alarm |
High or low temperature, Sensor failure, System failure; Door ajar; Power failure, Low battery |
| Refrigeration Type |
Forced air refrigeration system |
| Refrigerant |
R134a, CFC-Free |
| Compressor |
International famous compressor |
| Condenser & Evaporator |
High efficiency air-cooled condenser, made of copper |
| Defrost |
Auto defrost |
| Construction |
Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material) |
| Internal Material |
Stainless steel |
| External Material |
Cold-rolled steel with anti-bacteria powder coating |
| Door |
Double layer transparent glass door with lock, Heating film preventing frosting, Sealing joint strip with magnetic force.
Transparent plastic inner door |
| Shelves |
Adjustable shelves |
| Casters |
4 casters |
| Consumption |
160W |
280W |
200W |
| Power Supply |
AC220V±10%, 50/60Hz |
| Standard Accessory |
Temperature printer, |
| 2 shelves, |
4 shelves, |
4 shelves, |
| 6 baskets, fluorescent lamp |
12 baskets, fluorescent lamp |
12 baskets, fluorescent lamp |
| Blood Bags (450ml) |
66pcs |
80pcs |
132 pcs |
| External Size (W*D*H)mm |
522*600*1050 |
600*620*1600 |
522*600*1550 |
| Package Size (W*D*H)mm |
572*685*1200 |
700*660*1755 |
572*685*1700 |
| Gross Weight |
55kg |
113kg |
75kg |
