Specifications
|

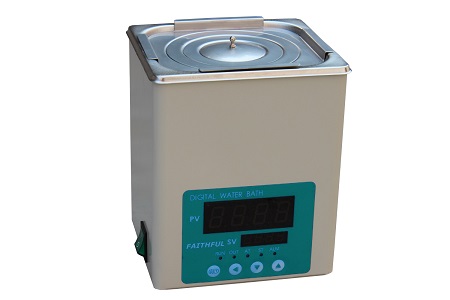

1 hole
|

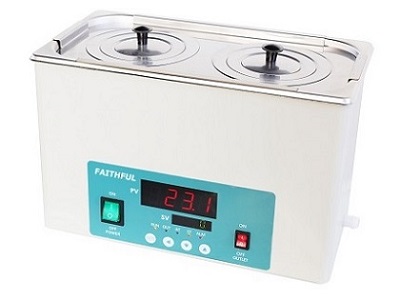

1 row & 2 holes
|
2 rows & 4 holes
|
2 rows & 6 holes
|
|
Model
|
DK-2000-IIIL
|
√
|
√
|
√
|
√
|
|
Heating Mode
|
Nature water convection heat transfer
|
|
Function
|
Temp. Range
|
RT+5～100℃
|
|
Temp. Resolution Ratio
|
0.1℃
|
|
Temp. Motion
|
±0.5℃
|
|
Temp. Uniformity
|
±1.0℃
|
|
Structure
|
Inner Chamber
|
Stainless steel
|
|
Outer Shell
|
Cold-rolled steel plate resistance to chemical reagents coating on the surface
|
|
Heater
|
Stainless steel heating tube
|
|
Power Rating
|
0.4kW
|
0.5kW
|
1.0kW
|
1.5kW
|
|
Controller
|
Temp. Control Mode
|
PID
|
|
Temp. Setting Mode
|
Touch button setting
|
|
Temp. Display Mode
|
Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row
|
|
Timer
|
0～9999min（with timing wait function）
|
|
Operation Function
|
Fixed temperature operation, timing function, auto stop.
|
|
Program Mode
|
Optional
|
|
Additional Function
|
Deviation Correction, menu key locked, power failure back-up, power-off memory
|
|
Sensor
|
CU50
|
|
Safety Device
|
Over - temperature alarm
|
|
Specification
|
Inner Chamber size(W*L*H)(mm)
|
150*135*150
|
300*135*150
|
325*300*150
|
500*300*150
|
|
Exterior size (W*L*H)(mm)
|
170*154*210
|
318*2168*210
|
350*318*210
|
524*322*210
|
|
Packing size (W*L*H)(mm)
|
240*230*280
|
390*240*280
|
420*390*280
|
600*390*280
|
|
Volume
|
3.4L
|
6.6L
|
12.7L
|
18.7L
|
|
Load per rack
|
5kg
|
|
Shelf Number
|
1
|
|
Power Supply（50/60Hz）Current rating
|
AC220V/1.8A
|
AC220V/2.3A
|
AC220V/4.5A
|
AC220V/6.8A
|
|
NW/GW (kg）
|
3.3/4
|
4.5/5
|
6/7
|
7.5/9
|
|
Optional Accessories
|
Shelf, RS485 interface, Recorder, External Communication
|
