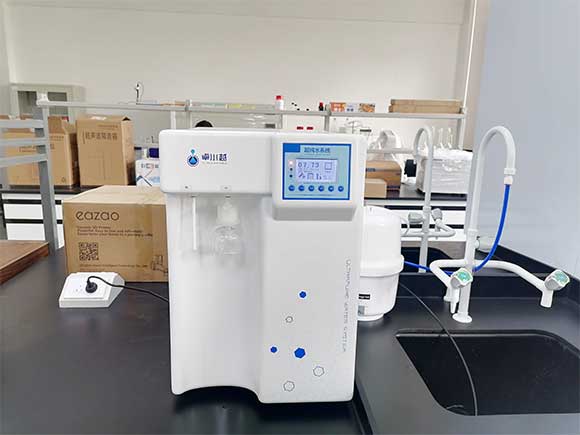

ZYM Deionized Water Treatment Plant For Lab
The model ZYM series produce the triple distilled water plant for lab with resisivity 18.25 MΩ.cm , which is triple distilled water 100% pure H2O without any minerals
Product features
1. Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
2.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
3.Comprehensive system maintenance and safety alarm:
4. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to
facilitate the later access to historical operation conditions data.
5.Adopt more advanced, user-friendly membrane push button to take water.
6.Semi-transparent PP material do not produce secondary pollution.
7.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (0.1-18.25MΩ.cm).
| Model | ZYM-I | ZYMI-II | ZYM-III | ZYM-IV |
| Optional capacity( L/H) | 10L/H,20L/H | |||
| Flow rate | Up to1.5- 2.0 liters/minute(with pressure tank) | |||
| Feed water requirements | Tap water, temperature:5-45°C,pressure:1.0-5.0Kg | |||
| RO water quality | ||||
| Condutivity(25°C) | 2-10μs/cm | |||
| Pollutant removal rate | >98% | |||
| Evaporation residue | ≤2.0mg/L | |||
| Ultrapure water quality | ||||
| Resistivity(25°C) | 18.25MΩ.cm | |||
| Bacteria | ＜1cfu/ml | ＜1cfu/ml | ＜0.1cfu/ml | ＜0.1cfu/ml |
| Particle(≥0.1um) | ＜1/ml | |||
| Heavy metal ion | ＜0.1ppb | |||
| Endotoxin(Pyrogens) | N/A | N/A | N/A | ≤ 0.001EU/ml |
| TOC Level*** | ＜ 10 ppb | ＜ 10 ppb | ＜ 5 ppb | ＜ 5 ppb |
| Dimension and weight | Length×Width×Height:540×380×570mm, 30~40Kg | |||
| Power(W) | 30W-50W | |||
| Terminal disinfection filter (TF) | N/A | yes | yes | yes |
| UV lamp | N/A | N/A | yes | yes |
| UF | N/A | N/A | N/A | yes |
| Standard configuration | Main body (Including 1 set of cartridge)+pressure tank | |||

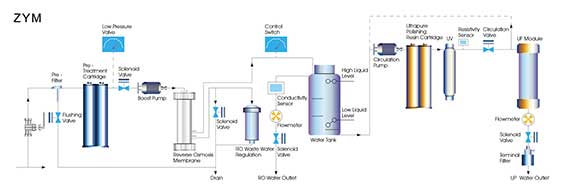

The process flow
The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
5 stage purifying system as below , purification methods and parameters to avail the purity and classify the impurities to be removed from the original water (tap water or natural one) from what one wants to generates the purified water.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter(including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.
-
