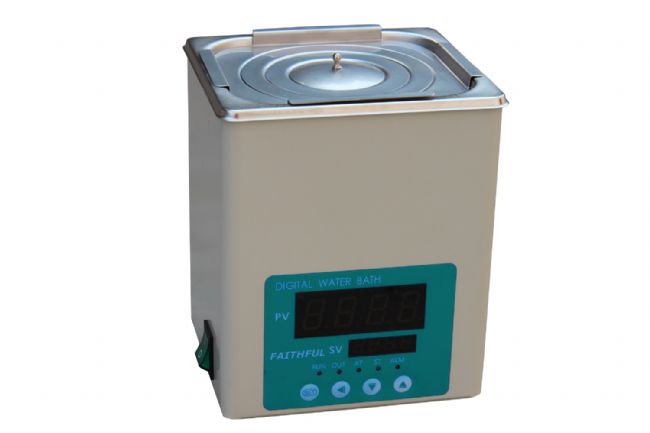

Thermostatic Water Baths
（Stretching Inner Chamber）
------Used for precision constant temperature and auxiliary.
（Stretching Inner Chamber）
------Used for precision constant temperature and auxiliary.
Product Description
1. Stainless steel stretching inner container and roof cover.
2. Intelligent temperature controller with PID program, digital tube
display and function of timing and over-temperature protection.
3. Add the electric drain switch,one-button operation,convenient to drain,
Note:single hole water baths have no drain function.
4. Power off when water shortage to ensure the safe operation of the product.
Technical Parameter
1. Stainless steel stretching inner container and roof cover.
2. Intelligent temperature controller with PID program, digital tube
display and function of timing and over-temperature protection.
3. Add the electric drain switch,one-button operation,convenient to drain,
Note:single hole water baths have no drain function.
4. Power off when water shortage to ensure the safe operation of the product.
Technical Parameter
| Model | 1 hole | 1 row & 2 holes |
2 rows & 4 holes |
2 rows & 6 holes |
| DK-2000-IIIL | √ | √ | √ | √ |
| Heating Mode | Nature water convection heat transfer | |||
| Temp. Range | RT+5～100℃ | |||
| Temp. Resolution Ratio |
0.1℃ | |||
| Temp. Motion | ±0.5℃ | |||
| Temp. Uniformity | ±1.0℃ | |||
| Inner Chamber | Stainless steel | |||
| Outer Shell | Cold-rolled steel plate,resistance to chemical reagent coating on the surface | |||
| Heater | Stainless steel heating tube | |||
| Power Rating | 0.4kW | 0.5kW | 1.0kW | 1.5kW |
| Temp. Control Mode |
PID | |||
| Temp. Setting Mode |
Touch button setting | |||
| Temp. Display Mode |
Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row | |||
| Timer | 0～9999min（with timing wait function） | |||
| Operation Function | Fixed temperature operation, timing function, auto stop. | |||
| Program Mode | Optional | |||
| Additional Function | Deviation Correction, menu key locked, power failure back-up, power-off memory | |||
| Sensor | NTC | |||
| Safety Device | Over temperature alarm | |||
| Inner Chamber size(W*L*H)(mm)） | 150*135*150 | 300*135*150 | 325*300*150 | 500*300*150 |
| Exterior size (W*L*H)(mm) |
170*154*210 | 318*2168*210 | 350*318*210 | 524*322*210 |
| Packing size (W*L*H)(mm) |
240*230*280 | 390*240*280 | 420*390*280 | 600*390*280 |
| Volume | 3.4L | 6.1L | 14.6L | 22.5L |
| Load per rack | 5kg | |||
| Shelf Number | 1 | |||
| Power Supply (50/60Hz）Current rating |
AC220V/1.8A | AC220V/2.3A | AC220V/4.5A | AC220V/6.8A |
| NW/GW (kg） | 3.3/4 | 4.5/5 | 6/7 | 7.5/9 |
-
Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.
All our FAITHFUL products have passed the CE Certificate.
