- Shenchen Peristaltic pump head 3 rollers(black)
- Product Detail
- Company Profile
Product Introduction
Roller Pump Head
1.Easy load Metering Peristaltic Pump Head
2.Automatic tubing retention
3.9 tubing sizes,Flow rate: 0.007-2280ml/min
4.Two kinds of housing material: PSF,PPS
5.Roller material: 304 Stainless steel
6.Application: COD on-line monitor; anorectal therapeutic instrument etc.
Function and Features
Roller Pump Head

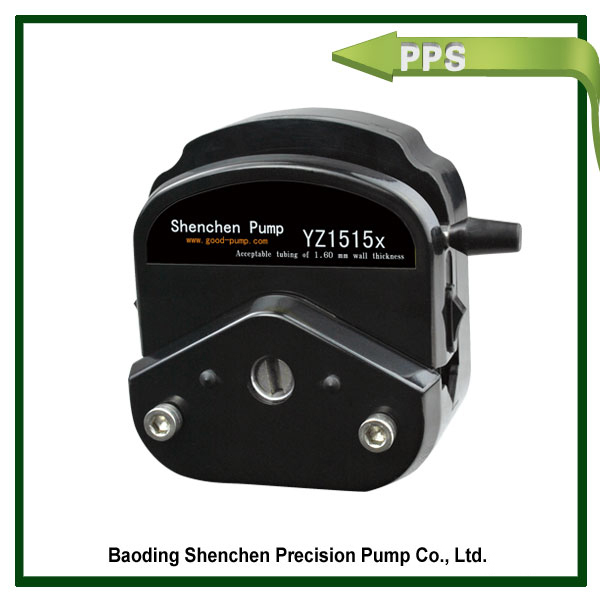

1.Pump head housing material – PPS (polyphenylene sulfide)
PPS material owns high molding accuracy and perfect rigidity. This kind of pump head bears long-term running under strong load and transfers fluid with high precision. It has high temperature resistance and perfect corrosion resistance, especially in the strong chemical corrosion resistance, like organic solvent, etc.

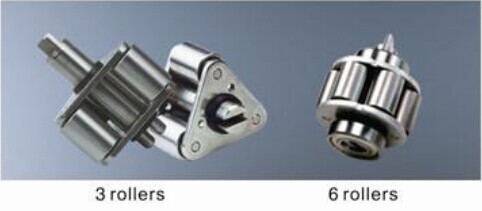

2.Rollers material – 304# stainless steel
Not easy to rust. Corrosion resistance, high health grade and low repair rate reduce the maintaining cost.
3.Suitable for different tubing sizes ensure reaching the same transferring accuracy in the different flow rates, 0.5% - 1%.
YZ1515x metering peristalitc pump head is suitable for seven kinds of tubing, such as 13#, 14#, 19#, 16#, 25#, 17#, 18#.
Flow rate: 0.007 – 2280ml/min, widely using.
YZ2515X metering peristaltic pump head is suitable for two kinds of tubing, such as 15#, 24#.
Flow rate: 0.17– 1740ml/min, usually using in the situations of suction lift and pump lift.
Technical Specification
Roller Pump Head
|
Pump Head |
Tube |
ml / round |
(1-600rpm) Flow rate ml/min |
Max. pressure (Mpa ) |
Weight (kg) |
||
|
|
intermittent |
continuous |
PSF |
PPS |
|||
|
YZ1515x |
13# |
0.07 |
0.07-42 |
0.17 |
0.27 |
0.40 3 roller
0.44 6 roller |
0.46 3 roller
0.50 6 roller |
|
14# |
0.27 |
0.27-162 |
|||||
|
19# |
0.42 |
0.42-252 |
|||||
|
16# |
0.82 |
0.82-492 |
|||||
|
25# |
1.7 |
1.7-1020 |
0.24 |
0.14 |
|||
|
17# |
2.9 |
2.9-1740 |
0.14 |
0.10 |
|||
|
18# |
3.8 |
3.8-2280 |
0.10 |
0.07 |
|||
|
YZ2515x |
15# |
1.7 |
1.7-1020 |
0.17 |
0.27 |
||
|
24# |
2.9 |
2.9-1740 |
|||||

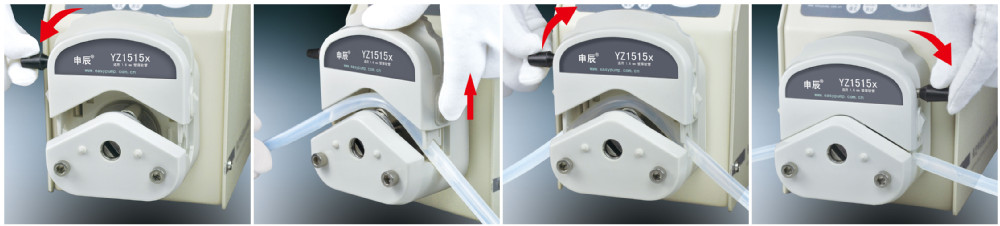

Tubing Installation Procedure
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
