Product Introduction

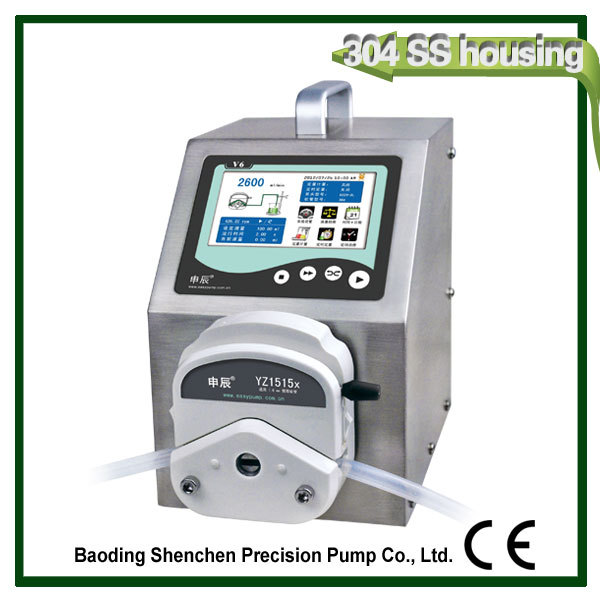

Variable Speed Programmable 2 Liters Peristaltic Pump
1.304Stainless Steel housing material.
2. Imported 4.3 inch true color LCD screen display, touch screen control.
3.Shenchen-F-CIR circuit system,use imported chips,speed fast,working stable
4.3 kinds of metering mode: fixed volume metering, fixed time and volume, timer start and stop
5.External control modes:RS232 and RS485,standard MODBUS communication protocol
6.Intelligent Calibration function;Power down memory function;On-line micro adjusting function.
Product Composition and Flow Rate
|
Drive |
Speed Range |
Pump Head |
Tubing Size |
Flow Rate ( mL/min) |
|
V1 |
0.1-150rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~570 |
|
YZ2515x |
15#, 24# |
0.17~435 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.024-375 |
||
|
V3 |
0.1-350rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~1330 |
|
YZ2515x |
15#, 24# |
0.17~1015 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.024-875 |
||
|
V6 |
0.1-600rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~2280 |
|
YZ2515x |
15#, 24# |
0.17~1740 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.024-1500 |
Technical Specifications of 2 Liters Peristaltic Pump
|
|
V1 |
V3 |
V6 |
|
Flow rate range |
0.007-570ml/min |
0.007-1330ml/min |
0.007-2280ml/min |
|
Speed range |
0.1-150rpm |
0.1-350rpm |
0.1-600rpm |
|
Speed resolution |
0.01 rpm |
||
|
Flow rate resolution |
0.01mL |
||
|
Back suction angle |
0-360° |
||
|
Output pressure |
0.3Mpa |
||
|
Display |
4.3 inch-Industrial grade-True color LCD screen |
||
|
Control method |
Touch screen and mask keypad |
||
|
External control |
0-5V, 0-10V, 4-20mA |
||
|
Passive switch signal, such as : foot pedal. Active switch signal: 5V, 12V, 24V for option. |
|||
|
RS232, RS485 support MODBUS protocol (RTU mode) |
|||
|
Power supply |
220V±10%, 50Hz/60Hz ( standard), 110V±10%, 50Hz/60Hz (optional) |
||
|
Drive dimension |
213*152*235mm |
||
|
Drive weight |
5.02kg |
||
|
Power consumption |
<50W |
||
|
Working condition |
Environment temperature: 0-40℃ Relative humidity: <80% |
||
|
IP rate |
IP31 |
||

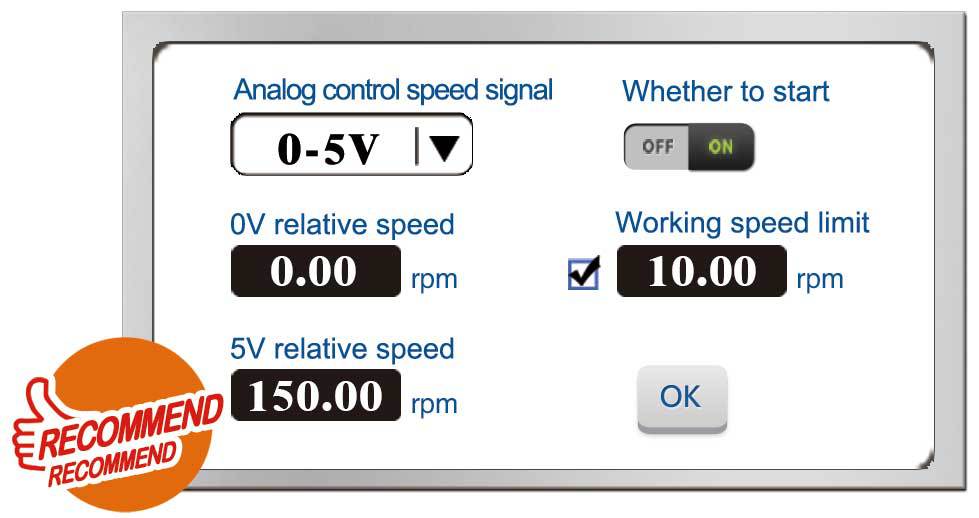

Programmable External Control Speed Setting
1. Can choose analog signal source:0-5V,0-10V,4-20mA
2.When the signal source is chosen,can choose maximum speed and minium value according to actual demand,to reach user defined rotate speed range purpose.
3.Working speed limit is at the situation that the linear relation of analog quantity signal and rotating speed keeps invariant,set peristaltic pump's maxium working rotate speed.This setting can avoid production accident casued by sudden change of transfer fluid amount with the sudden change of external analog signal.

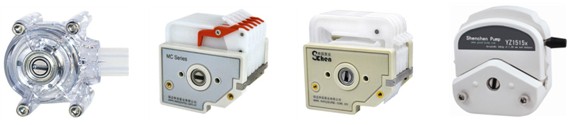

Acceptable Pump Head: YZ1515x, YZ2515x, MC Sereis, DG Series, SN Series
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
