Product Description

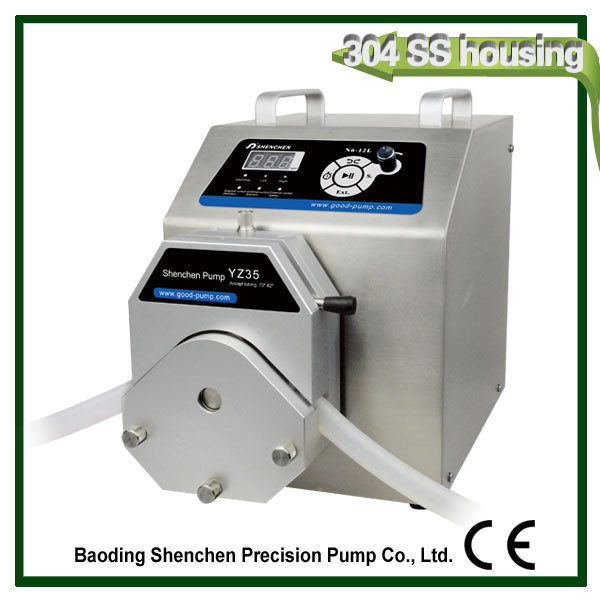

High Flow Rate Industrial Metering Pumps
1.Servo motor drive industrial peristaltic pump.
2.Mask keypad control start/stop, direction, timing test and external control selection.
3.External control :RS232/RS485 communication interface ( MODBUS protocol, RTU mode).
4. It can be connected with computer, PLC and HMI
Technical Specification
|
|
N6-3L |
N6-6L |
N6-12L |
||
|
Flow rate range |
0.211-3600mL/min |
0.3-6000mL/min |
1.23-12000mL/min |
||
|
Motor type |
Serve motor |
||||
|
Speed range |
0.1-600rpm, reversible. |
||||
|
Speed resolution |
0.1rpm |
||||
|
Flow rate resolution |
<±0.5% |
||||
|
Output pressure |
0.3Mpa |
||||
|
Test time range |
0.5-999 seconds |
||||
|
Display |
LED |
||||
|
Control |
Mask keypad and digital knob |
||||
|
External control |
Speed control: 0-5V, 0-10V, 4-20mA signal; Start/stop and direction control: Passive switch signal ( such as foot switch) ; Active switch signal ( 5V, 12V, 24V) Communication: RS232, RS485 |
||||
|
Power supply |
AC220V±10%, 50Hz/60Hz AC110V±10%, 50Hz/60Hz |
||||
|
Drive dimension |
223*152*168mm |
283*192*218mm |
302*223*275mm |
||
|
Drive weight |
5.05kg |
7.85kg |
13.16kg |
||
|
Power consumption |
<80W |
<180W |
<300W |
||
|
Working condition |
Environment temperature: 0-40℃ Relative humidity: <80% |
||||
|
IP rate |
IP31 |
||||
Product Composition and Flow Rate
|
Drive |
Pump Head |
Tube size |
Flow rate (ml/min) |
|
N6-3L |
DZ25-3L |
15# |
0.211-900 |
|
24# |
0.385-1800 |
||
|
35# |
0.508-3000 |
||
|
36# |
0.6-3600 |
||
|
N6-6L |
DZ25-6L |
15# |
0.3-1800 |
|
24# |
0.55-3300 |
||
|
35# |
0.8-4800 |
||
|
36# |
1.0-6000 |
||
|
N6-12L |
YZ35 |
73# |
1.23-7400 |
|
82# |
2.0-12000 |
||
|
2*YZ35 |
73# |
1.23-14800 |
|
|
82# |
2.0-24000 |

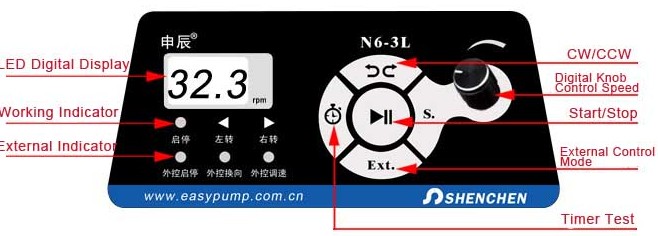

N6 Keypad

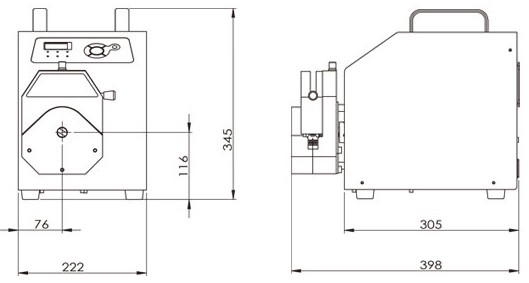

Dimension
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
