Top grade small flow rate peristaltic pump,special world wide use infusion pump

Pictures of world wide use infusion pump:

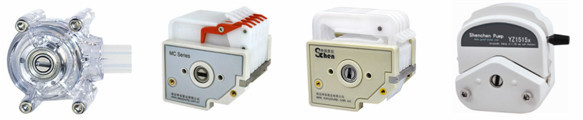

Acceptable Pump Head: YZ1515x, YZ2515x, SN Series, MC Series

New Features

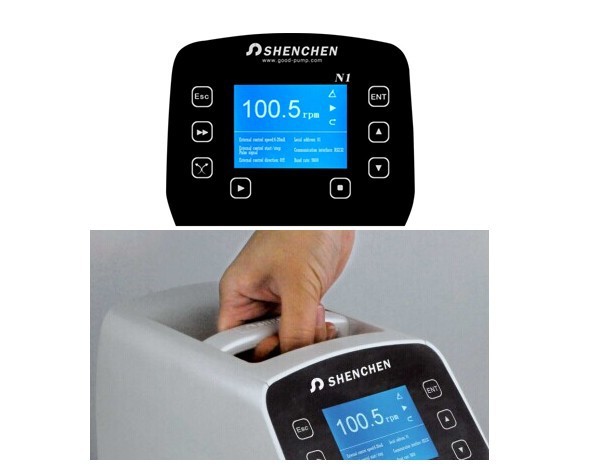

1. Portable handheld design, feel comfortable and stable.

2. Multifunction protective cover for external control interface, can be used for tool box, install common tools.

3. Hidden external control interface, protective cover can protect the interface and data lines effectively.

Product Introduction:

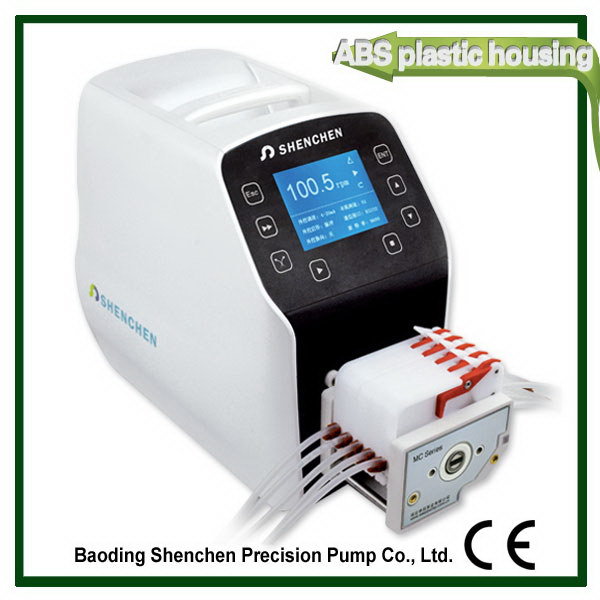

The second generation standard type peristaltic pump, with ABS engineering plastic housing, streamlined body design, more fashion sense.3.2 inch blue LCD screen, touch keypad control, feel comfortable. Speed range: 0.1-600 rpm, suitable for various pump heads. Flow rate range: 0.1-2280ml/min. Multiple external control for selection. Support RS232/RS485 communication, standard MODBUS protocol ( RTU mode), meeting different industrial sites equipment request.

Function and Features:

1. Friendly interface, 3.2 inch big screen LCD display working parameters in real time.

2. Super silent drive setting, precise control, low vibration and low noise.

3. Shenchen-Nx-CIR circuit system, use imported chips, computing speed fast, reliable performance, working stable.

4. Touch keypad control, menu interface, convenient for users setting the parameters.

5. Timing function, the time range is 0.1s - 9999 hours, can be used for simple dispensing function.

6. 0-360°back suction angle setting, can avoid the fluid drop off when transferring viscous fluid.

7. Automatical temperature control system, reduce the noise of fan effectively.

8. Various external control functions, support 0-5V, 0-10V, 4-20mA analog signal control speed. In the mean time also have Shenchen -Nx - EMB -PGM programmable external control function, can meet special industrial control request.

9. Support RS232/RS485 communicationinterface, MODBUS communication protocol, meet different industrial request.

10. Power down memory function, store parameters in time, safe and reliable.

11. Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.

12. Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.

Technical  Specification:

Flow rate range                 LabN1: 0.000067~570ml/min

                               LabN3:0.000067-1330ml/min

                               LabN6:0.000067-2280ml/min

Speed range                   0.1-600rpm

Speed resolution                0.1rpm

Back suction angle              0-360°

Testing time range               0.1s - 9999 hours

Outlet pressure                  0.1Mpa ( 0.86-1.0mm wall thickness tubing)

                                0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing)

Motor type                      Stepper motor

Circuit system                   Shenchen-Nx-CIR

Control system                  Shenchen-Nx-EMB

Display                         3.2 inch HD LCD screen

Control method                  Touch keypad

External control speed signal      0-5V, 0-10V, 4-20mA for option

Start/stop, direction signal         Passive switch signal, such as foot pedal switch

                                Active switch signal: 5V, 12V and 24V for option

Communication interface        RS232/RS485 support MODBUS protocol (RTU mode)

Output interface                Output motor working status (Open-Collector output)

Power supply                  220V±10%, 50Hz/60Hz ( standard),

                             110V±10%, 50Hz/60Hz (optional)

Drive dimension                260 x 155 x 230mm ( L x W x H )

Drive weight                     5.12kg

Power consumption              <50W

Environment temperature          0-40℃

Relative humidity                 <80%

IP rate                           IP31

Product Composition and Flow Rate:
