- Shenchen automatic dispensing peristaltic pumps
- Product Detail
- Company Profile
- Acceptable pump heads for YZ1515x, YZ2515x, MC series.
- 3-digit LED dynamic display copy number or current rotate speed of motor.
- Pluse numerals knob controls speed, and also preestablishes number of distribution, time of distribution, and pause time.
- Reversible.
- May achieve to cut over the two operating mode of transfering and dispensing through the operating mode switch.
- Load-shedding memory function, storing the running parameters automatically in time. It is very safe and reliable.
- Install free external control module to control remotely start stop, and match the racking machine to work.
- High performance-price ratio.
- It is not suitable for outdoor application.
Product Description

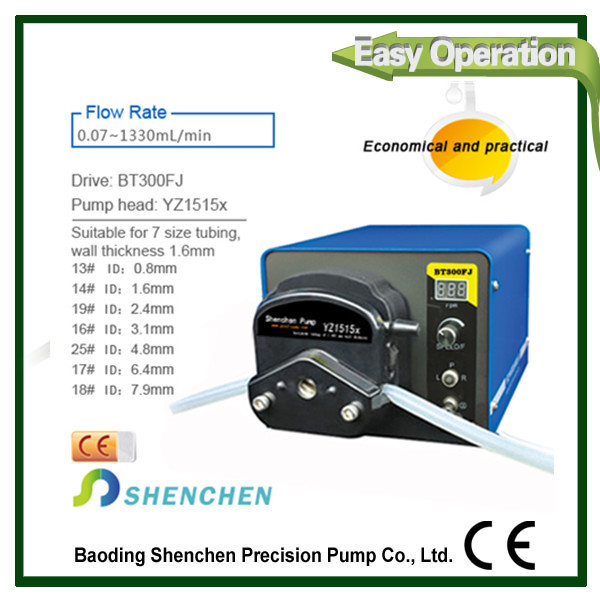

laboratory dispensing peristaltic pump
BT300FJ Application
Use in medicine subpackage widely, such as oral liquid of subpackage, diagnostic reagent subpackage.
Cosmetics subpackage, such as lip gloss subpackage.
Chemical reagent subpackage.
Features
Technical Specifications
laboratory dispensing peristaltic pump
|
Technical Specifications |
|
|
Rotational speed |
1.0~300rpm, reversible |
|
Speed precision |
0.1rpm(1-100rpm), 1rpm(100-300rpm) |
|
Speed control |
Rotary encoded switch control speed continuously |
|
Display |
3-digit LED display current rotating speed and dispensing frequency |
|
Copy number |
1~999 |
|
Copy time |
0.1~999s |
|
Pause time |
0.1~999s |
|
External control interface |
Start/stop control, cw/ccw control and speed control (0~5V, 0~10V, 4~20mA) |
|
Power supply |
AC 220V±10%, 50Hz/60Hz(standard) |
|
Power consumption |
<35W |
|
Operating condition |
Temperature 0 to 40 C° , Relative humidity < 80% |
|
Drive dimension (L×W×H) |
245x184x145mm |
|
Drive net weight |
4.30Kg |
|
Level of protection rating |
IP 31 |
Flow rate:
|
Drive |
Pump Head |
Tubing |
Flow Rates (mL/min) |
|
BT300FJ |
YZ1515x |
13# 14# 19# 16# 25# 17# 18# |
0.035~1140 |
|
YZ2515x |
15# 24# |
1.70~870 |
|
|
N*YZ1515x |
13# 14# 19# 16# 25# 17# 18# |
0.07~1140(per channel) |
|
|
N*YZ2515x |
15# 24# |
1.70~870 (per channel) |
|
|
MC(6 rollers) |
0.5×0.8, 1×1, 2×1, 2.4×0.8 |
0.002-42(per channel) |
|
|
MC(10 rollers) |
0.001-32(per channel) |
||
|
SN25 |
24# |
0.20~750 |
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
