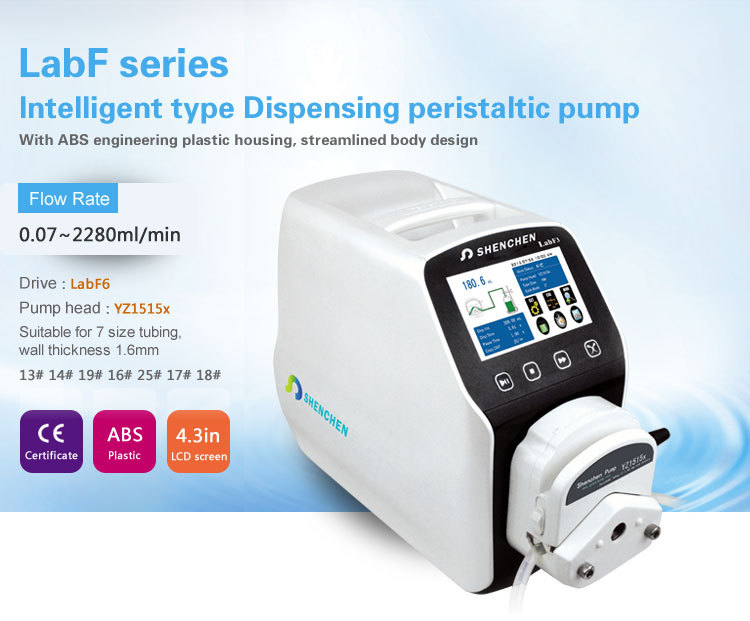

Good quality bio science pump,discount dosing plastic water pump
Good quality bio science pump,discount dosing plastic water pump

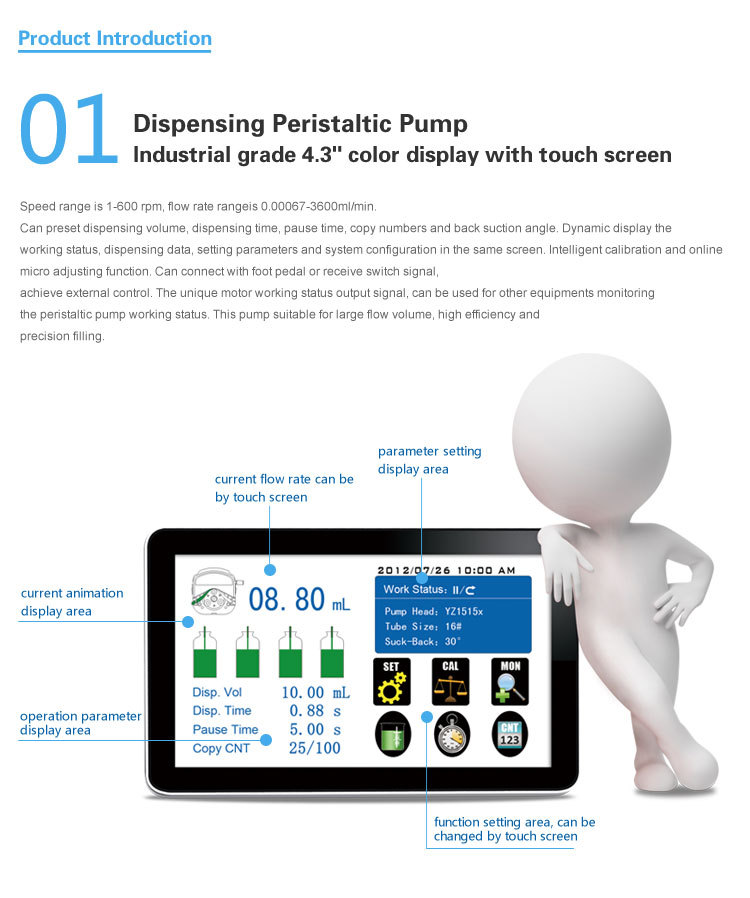

1. Imported 4.3 inch - industrial grade - true color LCD screen, clear picture quality, more guarantee quality. Dynamic display dispensing status, dispensing volume, dispensing time, pause time, copy numbers and system setting in the same screen.
2. Imported touch screen control, high hardness, resisting scratch, high sensitivity, attention to users experience.
3. Stepper motor drive, control precisely.
4. Shenchen-F-CIR circuit system all use imported chips, computing fast, reliable performance, working stable.
5. Shenchen-F-EMB operation system, embedded software design, powerful function, friendly interface, attention to users’ experience.
6. Intelligent calibration function, can calibrate the flow rate or dispensing volume, ensure the flow rate accuracy. Suitable for high precision liquid filling.
7. The dispensing total number counting function, need to clear the numbers by manual. This is convenient for counting dispensing numbers when manual dispensing.
8. Online micro adjusting function. During the production process, if the tubes fatigue or abrasion, you can use the online micro adjusting function to adjust the flow rate without stop the pump.
9.The pump can store 60 commonly used filling modes, save users setting time.
10. Back suction angle setting, avoid liquid drop off when the pump stop working.
11.External control start/stop function, it can connect with foot pedal switch, also can be unified controlled by the host computer when working in filling line.
12.Automatic temperature control system, reducing the fan noise effectively.
13.Power down memory function, store the running parameters in time, safe and reliable.
14.Fast filling function, not only can be used for washing the tubing, but also can fill liquid to the tubing fast.
15.Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.
16. Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
Flow rate range Lab F1: 0.000067-570 ml/min
Lab F3: 0.000067-1330ml/min
Lab F6: 0.000067-2280ml/min
Speed range 0.1-600rpm
Speed resolution 0.01rpm
Dispensing volume range 0.1-9999.99mL
Dispensing volume resolution 0.01mL
Dispensing time 0.5-9999.99s
Pause time 0.5-9999.99s
Time resolution 0.01s
Copy numbers 1-9999times, ‘0’ means unlimited
Back suction angle 0-360°
Dispensing accuracy < ±0.5%
Motor Type Stepper motor
Circuit system Shenchen-F-CIR
Operation system Shenchen-F-EMB
Display 4.3 inch- industrial grade-true color LCD screen
Control Touch screen with membrane keypad
Start/stop, Passive switch signal, such as: foot pedal
direction signal Active switch signal: 5V, 12V, 24V for option
Communication RS232 and RS485, support MODBUS protocol ( RTU) mode
Output interface Output motor working status ( Open-Collector output)
Power supply AC220V 10%, 50Hz/60Hz ( standard)
AC110V 10%, 50Hz/60Hz ( standard)
Output pressure 0.1Mpa ( 0.86-1.0mm wall thickness tubing）
0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing)
Drive dimension 260 x 155 x 230mm ( L x W x H)
Drive weight 5.12kg
Power consumption <50W
Environment temperature 0-40℃
Relative humidity <80%
IP rate IP31
|
Drive |
Speed Range |

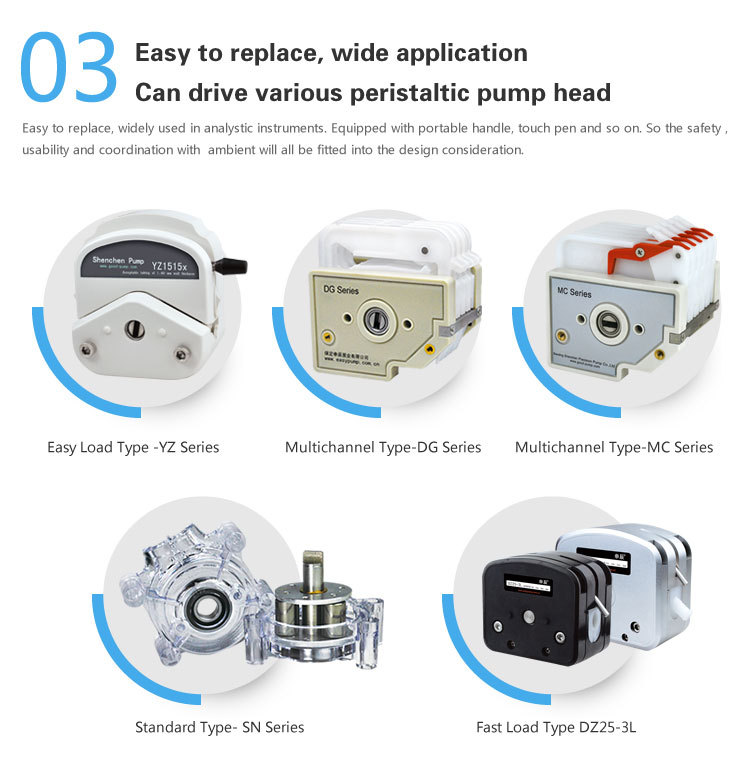

Pump Head |
Tubing Size |
Flow Rate ( mL/min) |
|
Lab F1 |
0.1-150rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~570 |
|
YZ2515x |
15#, 24# |
0.17~435 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.024-375 |
||
|
Lab F3 |
0.1-350rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~1330 |
|
YZ2515x |
15#, 24# |
0.17~1015 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.024-875 |
||
|
Lab F6 |
0.1-600rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~2280 |
|
YZ2515x |
15#, 24# |
0.17~1740 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.024-1500 |
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.

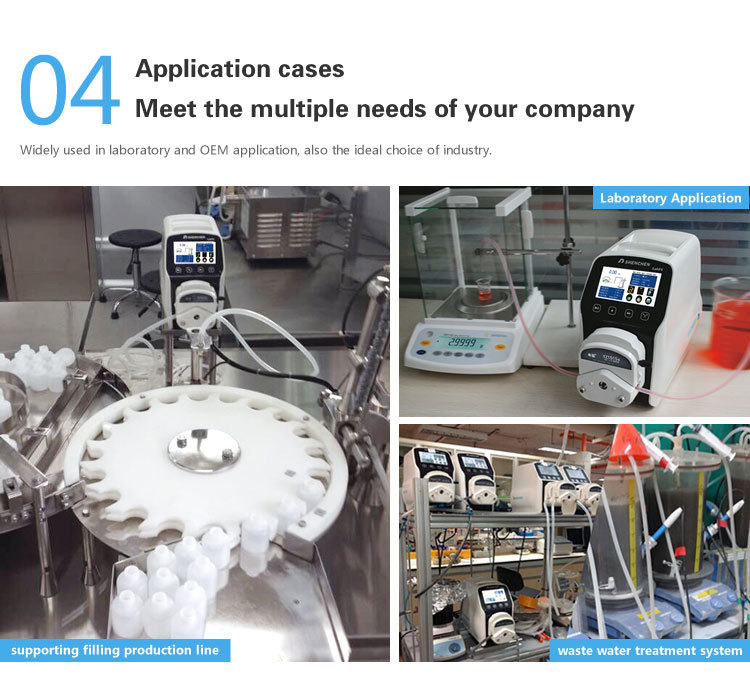

Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
