Pictures of agriculture peristaltic pump:
Product Introduction
Basic peristaltic pump, stepper motor drive, toggle switch control start/stop and direction. Digital knob control the speed, easy operation. Support external control and RS485 communication interface. Suitable for industrial use.
Functions & Features of agriculture peristaltic pump:
1. Dual CPU control, separating the drive and control, quick operation speed, stable work and high precise transfer.

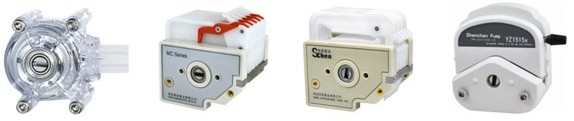

2. Acceptable pump heads: YZ1515x, YZ2515x, SN series, MC series and DG series.
3. Digital knob control speed. Easy to operate with high control precision, and long-term service life. Ensure high accuracy of transfer fluid.
4. High torque and low power loss, connect many pump heads in series or install multichannel pump head for satisfying the different application situations.
5. Load-shedding memory function.
7. Choose free external control module: 0-5V, 0-10V and 4-20 mA. Three signals all can control remotely rotational speed of pump, and also control start and stop of pump by the switch signal.
8. RS485 communication interface with MODBUS protocol reach external control. .
|
|
BT100M |
BT300M |
BT600M |
|
Flow rate range |
0.00034-570ml/min |
0.00034-1330ml/min |
0.00034-2280ml/min |
|
Speed range |
0.1-150rpm |
0.1-350rpm |
0.1-600rpm |
|
Speed resolution |
0.1rpm (1-100rpm range) ; 1rpm ( 100-600rpm range). Reversible. |
||
|
Display |
LED |
||
|
Control method |
Digital knob and toggle switch |
||
|
External control signal |
Start/stop control: TTL level 0-5V, 0-10V, 4-20mA signal; RS485 communication interface |
||
|
Power supply |
AC110V±10%, 50Hz/60Hz AC220V±10%, 50Hz/60Hz |
||
|
Drive dimension |
234*144*140mm |
254*185*149mm |
254*185*149mm |
|
Drive weight |
3.6kg |
4.54kg |
4.64kg |
|
Power consumption |
<45W |
||
|
Environment temperature |
0-40℃ |
||
|
Relative humanity |
<80% |
||
|
Output pressure |
0.3Mpa |
||
|
IP rate |
IP31 |
||
Product Composition & Flow Rate
|
Drive |
Speed Range |
Pump Head |
Tubing Size |
Flow Rate ( mL/min) |
|
BT100M |
1-150rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.07~570 |
|
YZ2515x |
15#, 24# |
1.7~435 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.00067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.24-375 |
||
|
BT300M |
1-350rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.07~1330 |
|
YZ2515x |
15#, 24# |
1.7~1015 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.00067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.24-875 |
||
|
BT600M |
1-600rpm |
YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.07~2280 |
|
YZ2515x |
15#, 24# |
1.7~1740 |
||
|
MC1-MC12 |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.00067-45 |
||
|
SN25/15 |
14#, 16#, 25# |
0.24-1500 |
-
Baoding Shenchen Pump Precision Pump Co.,Ltd is a high-tech enterprice, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. With rich technology force, excellent technological process, well corporate reputation, outstanding product quality, Shenchen constantly research and develop advance technology product, provide whole fluid solution program for cunstomers. Shenchen is the professional manufacturer who can completely provide pump head, complete machine, OEM and ODM product.
“Shenchen team”is a high-qualified, young and innovative team, possess research engineer, application engineer and professional sales and service team. In 2014, Baoding City government highly appreaciated Shenchen’s outstanding contribution in peristaltic pump industry. Government and Shenchen Precision Pump Co.,Ltd, co-establish “Baoding Peristaltic Pump Engineering Technology Research Center”, this center is jointly approval by technology bureau, Development and Reform Commission, also the only authority research organization in peristaltic pump industry.
Peristaltic pumps have a number of advantages over other pump types: they provide superior flow rate stability and metering accuracy; have extensive chemical compatibility; and are inherently hygienic.Widely used in research labratories, bio-pharmaceuticals, food and bererage, fine chemical engineering , envirmonental ….etc,product get CE certification and exported to Europe, America, Austrilia,Southeast Asia, in total 51 countries.
“Shenchen brand” has become “China Peristaltic Pump Leading Brand”, which can replace imported brand and conform to European standars.
