1.Details
The mixing system is mainly used for the mixing and storage steps in the preparation of culture media, buffers, intermediates, and semi-finished products. Duoning has independently developed the 2 L–20 L DuoMix® benchtop mixing system, along with compatible 3D mixing bags and other products, providing a one-stop overall mixing solution suitable for process development and small-scale GMP production applications.

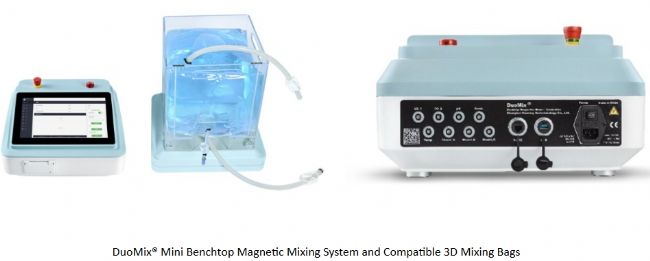

The DuoMix® Mini benchtop magnetic mixing system consists of three parts: a control system, a base with a magnetic drive motor and weighing module, and a support container. The controller can connect to three mixing bases, driving three mixing units simultaneously to maximize efficiency. The drive unit transmits power to the mixing bag via magnetic coupling, making operation simple and easy. Optional modules include pH and conductivity sensors, temperature sensors, temperature control units, and peristaltic pumps.

The software interface of the DuoMix® Mini benchtop magnetic mixing system is user-friendly and supports at least three levels of authorizations, recipe editing, alarm functions, sensor calibration, data recording and export, and audit trail functions.

2.Features

Equipped with a 13” color multi-point HD touchscreen for easy user operation.
Two I/O channels, allowing easy expansion of input and output functions.
Easy operation:

ú Mistake-proof quick connectors: pumps and sensors can be connected to the DuoMix® Mini via cables for plug-and-play, without complex installation, setup, or wiring.

ú Intelligent sensor disconnection detection.

Provides USB and RJ45 network interfaces.
Supports commonly used protocols such as Modbus and OPC UA for easy data integration.
Software interface is simple and user-friendly, with comprehensive data management, multi-level user management, and customizable user group authorizations.
DuoMix® Mini has powerful data processing capabilities; with the weighing module and optional modules such as pH and conductivity sensors, temperature sensors, and temperature control units, it allows real-time monitoring and viewing of prepared samples or buffers, parameter setting, and recipe editing, as well as trend analysis. Generates RPM-time curves, weight-time curves, pH-time curves, conductivity-time curves, and temperature-time curves to visually display dynamic changes of sample data. Process data can be viewed in three formats: dashboard, table, and curve graph.
Historical data, batch data, alarm data, and audit data can be viewed online.
Supports calibration of weighing modules, pH sensors, conductivity sensors, and temperature sensors, with records saved for review.
DuoMix® Mini supports data upload, backup, and recovery: built-in storage over 100 GB, enabling long-term data storage and ensuring data security and reliability.
Data export function: data reports can be exported in PDF format.
“One-to-three” efficient mixing: modular structure allows one main unit to support 2 L, 5 L, 10 L, and 20 L support containers. The controller can connect to three stirring bases to drive three mixing units simultaneously, maximizing efficiency.
Equipped with a dot-matrix printer for convenient real-time data printing and analysis.

3.Specification

Performance/Parameters

Item	Description
Controller Dimensions (L × W × H, mm)	410 × 450 × 250
Base Dimensions (L × W × H, mm)	400 × 370 × 150
Controller & Base Material	ABS
Holder Material	PMMA (Acrylic) or SUS304 Stainless Steel
Rated Voltage	220V / 50Hz or 110V / 50Hz
Rated Current	2.4A
Rated Power	200W
Weighing Range (Net/kg)	0–20 kg
Weighing Accuracy	3‰ (Full Scale)

Ordering Information

Catalog Number	Unit	Name	Description	Remarks
DM-87901	pc	Benchtop Mixing Controller	Includes industrial computer, buzzer, emergency stop, PLC, dot-matrix printer, etc.	Standard
DM-68001	pc	Benchtop Mixing Base	Includes weighing base, drive motor, data cable to connect main unit, etc.	Standard
DM-43000	set	2, 5, 10, 20L Holder Set	Sold as a complete set, includes four holder sizes	Optional
DM-43002	pc	2L Holder	2L Holder	Optional
DM-43005	pc	5L Holder	5L Holder	Optional
DM-43010	pc	10L Holder	10L Holder	Optional
DM-43020	pc	20L Holder	20L Holder	Optional
DM-44005	pc	5L Jacket Holder	5L Jacket Holder	Optional
DM-44010	pc	10L Jacket Holder	10L Jacket Holder	Optional
DM-44020	pc	20L Jacket Holder	20L Jacket Holder	Optional
DM-260MP	pc	pH Module / Mettler (with data cable)	pH Module / Mettler (includes data cable)	Optional
DM-260HP	pc	pH Module / Hamilton (with data cable)	pH Module / Hamilton (includes data cable)	Optional
DM-260MC	pc	Cond Module / Mettler (with data cable)	Cond Module / Mettler (includes data cable)	Optional
DM-260HC	pc	Cond Module / Hamilton (with data cable)	Cond Module / Hamilton (includes data cable)	Optional
DM-26SHP	pc	Disposable pH Transmitter / Hamilton (with data cable)	Disposable pH transmitter / Hamilton (includes data cable, electrode not included)	Optional
DM-260PT	pc	PT100 Temperature Sensor	Temperature sensor	Optional
DM-130PA	roll	Printing Paper	Printing paper	Consumable

Duoning Biotech is a leading one-stop bioprocess solutions provider from China, committed to offering products and services required for the discovery, development and commercialization production of biologics, including reagents, consumables, instruments, equipment, and services. Leveraging our integrated bioprocess system, we empower our customers to achieve effective, reliable, lower-cost and higher-quality biologics manufacturing processes.
