Automatic Bulk Fill System

The bulk fill system independently developed by Duoning adopts a modular design, supports multi-point high-precision weighing, and can realize high-precision and rapid dispensing of samples. The filling volume is 50 ml – 20 L, and compatible with single-use bottles and bags of various volume specifications. Combined with optimized manifold design, the system can minimize the hold-up volume. The bottle/bag bracket can be customized in size according to the actual requirement, and will be automatically recognized by the system, avoiding installation error.

The system supports reverse recovery or air purge recovery to improve the utilization rate of bulk.

Functionally, it's equipped with pressure and flow monitoring and early warning functions, and can support online and after-filling component integrity testing.

The system is designed with user-friendly software interface, and supports fully automatic recipe operation and batch control to ensure stability and high process reproducibility. Meanwhile, the system can support functions of data backup and recovery, audit trail and electronic signature.

Applications

• Media dispensing

• Buffer dispensing

• Bulk dispensing

• Industrial computer + PLC control system;

• Fully automatic filtration and filiing;

• Support automatic and manual mode;

• Full pressure monitoring, reduce the flow rate after the pressure exceeds the upper limit, and stop the system after continuous overpressure;

• Flexible design of filling mode: according to flow rate or weight;

• Multi-point weighing module, accurate weighing;

• Support different specifications of filling brackets, suitable for bottles & bags of different volumes;

• Automatic identification of bracket installation to avoid installation error rate;

• Fully automatic recipe operation, batch control, high stability and process reproducibility;

• Support data backup and recovery;

• Optimized and reasonable flow path design to minimize the holdup volume;

• Support reverse recovery & air purge recovery to improve the utilization rate of bulk;

• Support online and after-use integrity testing;

• Support barcode printing for easy traceability;

• Support barcode scanning, automatic identification of tare.

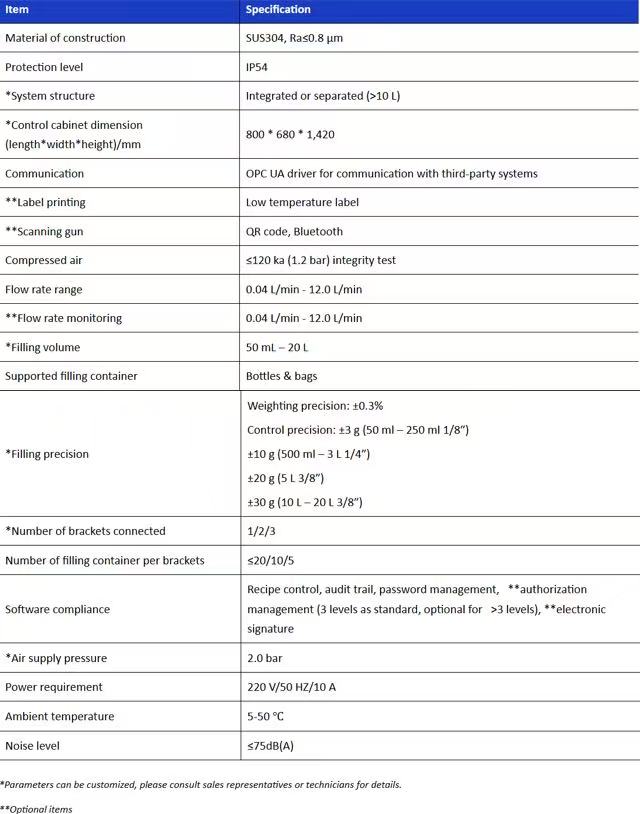

3.Specification
