Process Analysis Technology

DuoPAT® Process Analysis Terminal is a star product independently developed and designed by Duoning. It is suitable for real-time monitoring and control of pressure and flowrate in flow path or containers, and integrates functions of alarm setting and viewing, data and trend recording, audit trail, and user management, data saving and exporting.

Embedded PC with 13″ multi-point high-definition touch screen can monitor and configure multiple components at the same time. It can be used with optional modules such as pressure sensors, flow meters and peristaltic pumps.

Software is designed with user-friendly interface, simple and easy to operate, which can meet the needs of pharmaceutical companies for audit tracking and the requirements of GMP related regulations.

By monitoring the pressure and flowrate in flow path, DuoPAT® can detect abnormal conditions in time to avoid production accidents or product contamination. It can help optimize process parameters, improve efficiency and yields. By generating detailed data reports, users can obtain valuable information to improve the process.

Applications

• Fluid transfer

• Chromatography

• Sterile filtration

• Virus filtration

• Depth filtration

• Clarification

• Tangential flow filtration

• Fill/finish

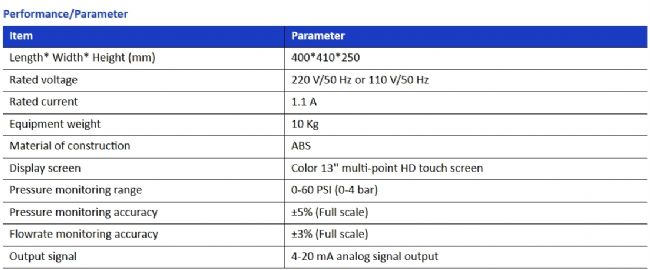

2.Features

3.Advantages

• Supporting pressure sensor and flow meter to realize real-time monitoring and control, which can be used for three channels of pressure and flowrate monitoring and data recording at the same time;

• Simply connect the pump and sensor to DuoPAT® via cables for plug-and-play, no complicated installation, setup or wiring required;

• DuoPAT® has powerful data processing capabilities, supporting pressure sensors and flowmeters to realize real-time monitoring, control and analysis, generating pressure-time curves, flow-time curves and other charts to visually display the dynamic changes in the flow path;

• Color 13'' multi-point high-definition touch screen, which is convenient for users to operate;

• The software interface is simple and easy to operate, and the default level 3 user operation authority ensures data security and reliability;

• DuoPAT® has data recording and export functions, built-in 128GB storage, data can be saved in the built-in memory or exported externally, which is convenient for users to perform data backup, analysis and reporting.

• Audit trail function.

*The DuoPAT® Process Analysis Terminal can be customized, please contact sales representatives or technicians for more details.

Product Number Key:

Accessory Ordering Information

Pressure Sensor:

Compatible with Pendotech-type single-use pressure sensor

Ÿ Range: 0 - 60 PSI (0 - 4 bar)

Ÿ Accuracy: ±5% (Full Scale)
Flow Sensor:

Ÿ *Accuracy: ±3% (full scale)

Ÿ Default calibration fluid: Water at 22 ± 3 °C

Ÿ Compatible tubing materials: Smooth internal and external surfaces, such as PVC, Silicone, PFA, PE, PUR

Ÿ *Flow accuracy depends on the measurement range. For more precise flow monitoring, please provide fluid information before ordering, including tubing brand, fluid type, and flow rate range, to allow proper calibration of the flowmeter. You can also contact our sales or technical staff for professional selection assistance.
