1.Details

TP701-XC45 is a batch transfer type peristaltic pump, driven by an AC servo motor and driver, featuring high speed accuracy, precise positioning, automatic torque adjustment, and strong power. It is equipped with large-diameter thick-wall tubing, capable of conveying high-viscosity materials and delivering high lift. The pump includes external control interfaces with multiple control modes, flow display functionality, and supports metering, quantitative, and timed filling. It is equipped with the XC45 planetary gear pump head, where the pump rollers self-rotate with power, reducing rolling friction between rollers and tubing, thereby extending tubing life by 2.5 times.

Typical Applications

Ÿ Large-volume pharmaceutical liquid transfer

Ÿ High lift feeding in chemical processes

Compatible Tubing
88#, 90#, 92#

2.Advantages

Ÿ Housing with special surface coating for corrosion resistance and easy cleaning

Ÿ Driven by AC servo motor with high speed accuracy, precise positioning, automatic torque adjustment, and strong power; suitable for large-diameter thick-wall tubing

Ÿ Multiple working modes, supporting quantitative filling or regular continuous operation, highly flexible and suitable for various scenarios

Ÿ Large LCD screen with Chinese and English menus, calibration software, full process step counting, and three-level permission management

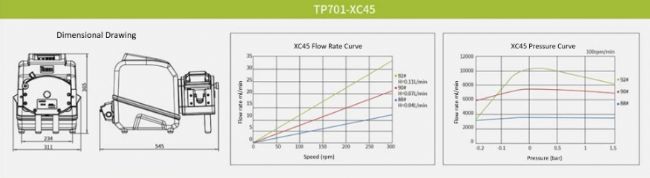

3.Specification

Item	Description
Speed Range	1~300 rpm
Speed Resolution	0.1 rpm
Motor Type	Brushless DC servo motor
Power Supply	100~240 VAC 50/60 HZ
Power	≤500 W
Driver Weight	24 KG
Display Method	LED LCD display
Operation Method	Button adjustment
External Control Method	RS232, RS485, analog voltage (0-10V, 0-5V), current (4-20 mA), dry contact signals control start/stop, direction, and speed
Working Environment	Temperature: 0~40℃; Relative humidity: <80%
