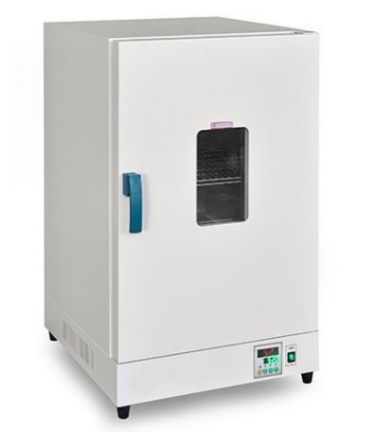

Force Convection, Vertical, Floor model, Temperature Range: Ambient Temp. +10 ~ 200 ℃

Feature:
1. The outer casing is made of high quality sheet steel. The inner casing is made of 304 Stainless steel. With observing window.
2. Multiple position shelving for convenient loading / unloading. Additional shelves are available.
3. P.I.D. environmental scanning micro-processing controller controls temperature accurately and reliable.
3. Digital LED display of preset & real temperature.
4. Built-in timer can be set to 0 ~ 9999 minutes ( 6 days ) or continuous operation.
5. Hot air circulation system is consist of low-noisy fan and optimal air duct, reaching a uniform temperature inside the working chamber
6. Over temperature safety cut off thermostat fitted with audio/visual alarm.
7. Silicone door gasket and positive door latch ensure tight seal.
8. Optional LCD touch screen / Optional programmable temperature controller
9. Optional RS485 connector / optional built-in printer / optional short messages remote alarm system.
10. Ovens are well built and maintenance-free.

Specifications:

Model	DHG-9030A	DHG-9070A	DHG-9140A	DHG-9240A	DHG-9423A	DHG-9623A
Internal Dims (WxDxH mm)	300x300x350	400x400x450	450x550x550	500x600x750	600x550x1300	800x600x1300
Exterior Dims (WxDxH mm)	435x480x670	535x590x760	585x735x890	675x760x1080	780x760x1800	980x815x1780
Capacity	30 liters	70 liters	135 liters	225 liters	430 liters	625 liters
Power	700W	1000W	1600W	2000W	2600W	3600W
Control Mode	Microprocessor PID Controller
Convection	Vertical Forced Air
Display	LED display
Timer	0 ~ 9999 minutes
Temperature Range	Ambient Temp.+10 ~ 200 ℃
Temperature Accuracy	± 0.1 ℃
Temperature Fluctuation	± 1 ℃
Sensor	PT100
Material Internal	SUS304 Stainless Steel
Material External	Steel Plate With Powder Coating
Material Insulation	Glass Wool
Door Gasket	High Temperature Silicone Rubber
Shelves	2 Adjustable Position Shelves
Viewing Window	High Temperature Safety Glass
Voltage	AC 220V±10%,50Hz					AC380V 50Hz
