- Disposable magnetic stirring system
The disposable magnetic stirring and mixing system uses market leading magnetic stirring/magnetic levitation technology, combined with 3D mixing bags, to provide an ideal solution for efficient solid/liquid mixing, buffer preparation, culture medium preparation, and large volume liquid-liquid mixing. The magnetic stirring mixing system is an integrated and movable mixing system that can provide effective and repeatable one-time mixing solutions for different volumes and application types.

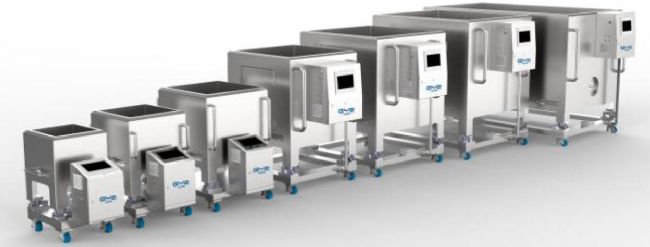

Standard volume specifications include: 50L, 100L, 200L, 500L, 1000L, 1500L, 2500L
application
*Preparation of buffer solution
*Preparation of culture medium
*Mixing and processing of intermediate products
*Virus inactivation
*Preparation of semi-finished products
*Mixing of vaccine adjuvants
Advantage:
*Ergonomic and easy-to-use hardware
*The device accepts customer customization (hardware and software)
*Shorter supply cycle, able to quickly provide customers with corresponding systems
*Having a fast after-sales response speed, responding to calls within 2 hours and arriving on-site within 24 hours
*Provide a complete set of verification documents and verification services
Product Parameters:
Supporting bucket section
| BioAIM MIX 50 |
BioAIM MIX 100 |
BioAlM MIX 200 |
BioAIM MIX 500 |
BioAIM MIX 1000 |
BioAIM MIX 1500 |
JYAMIX 2000 |
JYAMIX 2500 |
||||||||
| Size(L*W*H)mm | 415*415*435 | 495*495*555 | 616*616*659 | 918*918*743 | 1055*1055*1098 | 1080*1120*1627 | 1080*1120*2170 | 1080*1120*2173 | |||||||
| Weightkg | 170 | 190 | 210 | 350 | 410 | 630 | 820 | 1030 | |||||||
| Material (barrel body and bracket) | SS304 | ||||||||||||||
| Jacket | Optional | ||||||||||||||
| Volume inside the jacket (estimated value) m ² | 0.05 | 0.64 | 1.02 | 1.8 | 3.1 | 4.65 | 5 | 9.3 | |||||||
| Heat exchange area (estimated value) m ³ | 0.007 | 0.008 | 0.01 | 0.03 | 0.05 | 0.075 | 0.11 | 0.18 | |||||||
| Maximum working pressure inside the jacket | 6bar | ||||||||||||||
| Wheel | Large caster design, wheel frame material SS 304, wheels mainly made of polyurethane, detachable and replaceable | fixed design | |||||||||||||
| Bag pull rod | without | belt | |||||||||||||
| Jacket import and export | Clamp 50mmTC interface, equipped with blind plate, clamp and rubber pad. Standard accessory: TC50 stainless steel quick plug female head | ||||||||||||||
| Weighing unit | Optional, brand Mettler Toledo | ||||||||||||||
| Temperature unit | Optional, brand Lambar | ||||||||||||||
| PH online detection | Optional, brand Mettler Toledo | ||||||||||||||
| Conductivity online detection | Optional, brand Mettler Toledo | ||||||||||||||
| Storage temperature | 0-40℃,non-condensing |
||||||||||||||
| Operating temperature | 4-60℃,non-condesning | ||||||||||||||
Control section
| Drive motor | |
| weight | 0.3KG |
| power | 120W |
| speed | 0-300rpm |
| wire length | 5m |
| IP rating | IP66 |
| Electrical compliance | CC,PSE,CSA,EN,UL,IEC |
| control cabinet | |
| material | SS304 |
| weight | Depending on the weight of different models of control cabinets, the weight range is approximately 20KG to 30KG |
| voltage | 230V,50Hz,10A |
| wire length | 5m |
| IP rating | IP55 |
| Online PH | Optional, real-time monitoring of the pH value of the feed solution |
| Online conductivity | Optional, real-time monitoring of material liquid conductivity |
| Online dissolved oxygen | Optional, real-time monitoring of dissolved oxygen value in the feed solution |
| software design | Optional, with three-level permissions, electronic signature, audit tracking, data export and other functions, in compliance with GMP requirements |
| Optional printer, capable of paper printing | |
Hardware features:
*The structural design of the cube improves the mixing efficiency of the system by increasing turbulence
*Side window handhole design (convenient for customers to install 3D mixing bags and control the mixing process through visual inspection)
*Compact equipment structure (to minimize footprint and improve overall workshop utilization)
*There are no clean dead corners on the surface (the equipment wiring is carried out from the inside of the equipment, and waterproof structures are used at the joints)
*Adhere to ergonomic principles (reasonable control interface height)
Software features:
*Good human-machine interface
*Digital communication mode (different from traditional analog communication methods)
*Advanced Data Management (designed according to 21CFR Part 11)
*Online sensor monitoring and process control
Optional features
| Stir | Mixing using magnetic coupling/magnetic levitation method | |
| Weighing | Installation of three-point (round tank)/four point (square tank) weighing module | Brand: Mettler Toledo |
| Online pH | Real time monitoring of liquid pH and data integration on industrial computer | |
| Online conductivity | Real time monitoring of material liquid conductivity data integrated on industrial computer | Brand: Mettler/Hamilton |
| Online dissolved oxygen | Real time monitoring of dissolved oxygen in the feed solution, data integrated on the industrial computer | Brand: Mettler/Hamilton |
| Online temperature | Real time monitoring of dissolved oxygen in the feed solution, data integrated on the industrial computer | Brand: Mettler/Hamilton |
| Data integrity | Implement user management, audit tracking, and data PDF output | Brand: Mettler/Hamilton |
| Temperature control jacket | Honeycomb jacket with polyurethane insulation layer on the outside to prevent large amounts of condensation water from occurring |
