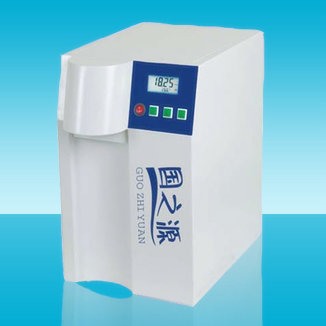

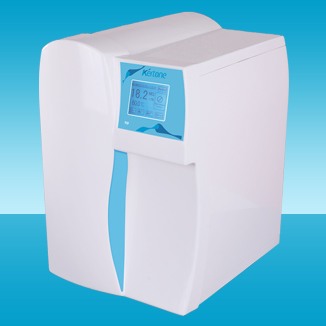

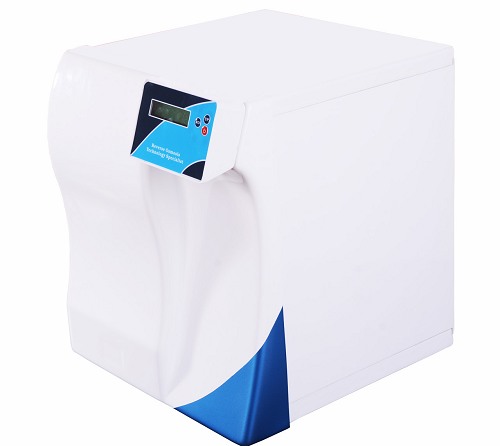

Desk Type & Standing Type
Feature & Function:
1 Full automatic and continuous water production, automatic display of working status, automatic protection of system.
2 Self inspection while starting up, automatic stop when reservoir is full of pure water, protection alarm when lack of feed water, automatic reposition when power is off.
3 System is no heating, no noisy when working, low power.
4 Online monitor display of ultrapure water quality and temperature on LCD screen.
5 Imported UF parts can guarantee effective elimination of pyrogen and water flow.
6 UV sterilizer with long lifetime and built-in six circulation design can guarantee high effective elimination of TOC.
7 RO membrane flushing can prolong lifetime of consumables and accessories.
Guide for Order:
1. For special configuration and optional function, add “T”at the front of standard model code.
2. For feed water is distilled water or pure water, add “V”at the back of standard model code.
3. For deep treatment function, add “S”at the back of standard model code.
|
Model |
P 05/ 10/ 20/ 40/ 60-Y |
P60-CY |
|
Feed Water |
City tap water, feed pressure: 0.15-0.4Mpa,
temperature: 5-40℃ |
RO water, de-ionized water,
distilled water |
|
Flow rate of
water production |
5 / 10 / 20 / 40 / 60 L/hr |
60 L/hr |
|
Flow rate of dispense water |
1.5-2L/min |
|
Output water parameter |
Pure water: quality confirms to the GB6682-2000 criteria of type Ⅲ water in laboratory application.
Ultrapure Water：Resistivity: 18.2 MΩ.cm@25℃, Pyrogen＜0.001EU/ml, TOC:1-3ppb, Microbe＜1cfu/ml, Particle (＞0.01 um)＜1/ml |
|
Application Range |
Molecular Biology, Life Science, Genetic Research, Tissue Culture, Tube Baby, Bio-engineering, Animal Cell Culture, Culture Medium Preparation, DNA sequencing, Amino Acid Analysis, Protein Purification, etc. |
|
Power |
220V/50Hz; 50-100W |
|
External Dimension |
500×310×400 / 450×300×400 mm |
450×300×400 mm |
|
Model |
P 05/ 10/ 20/ 40/ 60-W |
P60-CW |
|
Feed Water |
City tap water, feed pressure: 0.15-0.4Mpa,
temperature: 5-40℃ |
RO water, de-ionized water,
distilled water |
|
Flow rate of
water production |
5 / 10 / 20 / 40 / 60 L/hr |
60 L/hr |
|
Flow rate of dispense water |
1.5-2L/min |
|
Output water parameter |
Pure water: Resistivity ≥0.2MΩ.cm@25℃
Quality confirms to the GB6682-2000 criteria of type Ⅲ water in laboratory application.
Ultrapure Water: Resistivity: 18.2 MΩ.cm@25℃, TOC＜10ppb, Microbe＜1cfu/ml, Particle (＞0.22 um)＜1/ml |
|
Application Range |
HPLC, Atomic Absorption Spectroscopy, Mass Spectrometric Analysis, TOC Analysis, etc |
|
Power |
220V/50Hz; 50-100W |
|
External Dimension |
500×310×400 / 450×300×400 mm |
450×300×400 mm |
|
|
|
|
|
Model |
P 05/ 10/ 20/ 40/ 60-B |
|
Feed Water |
City tap water, feed pressure: 0.15-0.4Mpa, temperature: 5-40℃ |
|
Flow rate of
water production |
5 / 10 / 20 / 40 / 60 L/hr |
|
Flow rate of dispense water |
1.5-2L/min |
|
Output water parameter |
Pure water: Resistivity ≥0.2MΩ.cm@25℃
Quality confirms to the GB6682-2000 criteria of type Ⅲ water in laboratory application.
Ultrapure Water: Resistivity: 2-15 MΩ.cm@25℃, TOC＜20ppb, Microbe＜1cfu/ml, Particle (＞0.22 um)＜1/ml |
|
Application Range |
Tissue Detection, microbe detection, chemical analysis, blood testing, toxicity testing, environmental analysis, atomic absorption spectroscopy, students experiments, |
|
Power |
220V/50Hz; 50-100W |
|
External Dimension |
500×310×400 / 450×300×400 mm |
