2, operation steps
1. Ready for all the needed reagent and standard;
2 Remove the microplate from the sealed bag that has been balanced to room temperature, and put the unused slat back into the aluminum foil bag and re-seal it;
3. Add 300uL washing solution to the microplate, let it soak for 30 seconds, discard the washing solution and pat the microplate dry on absorbent paper, please use immediately do not let the microplate dry;
4. Add different concentrations of standard, experimental samples or quality control into the corresponding Wells, 100uL for each well. The Wells were sealed with plate adhesive and incubated at room temperature for 2 hours.
5 Suck the liquid out of the plate and wash the plate using a bottle washer, a multi-channel plate washer, or an automatic plate washer. Add 300uL of washing liquid to each well, and then suck the washing liquid out of the plate. Repeat 3 times. Every time you wash the plate, try to absorb the residual liquid to help you get a good test result. At the end of the last plate wash, please blot all the liquid in the plate or invert the plate and pat all the residual liquid in the absorbent paper;
6. Add 100uL detection antibody to each microwell. Seal the reaction Wells with sealer tape and incubate for 2 hours at room temperature;
7. Repeat the plate washing operation of step 5;
8. Add 100 ULSA-HRP to each microwell and incubate for 20 minutes at room temperature. Be careful to avoid light;
9. Repeat step 5 to wash the plate;
10. Add 100uL of color development solution to each microwell, incubate at room temperature for 5-30 minutes, pay attention to avoid light;
11. Add 50uL of termination solution to each microwell, and the color of the solution in the well will change from blue to yellow. If the color of the solution turns green or the color change is inconsistent, tap the microplate to mix the solution evenly;
12. Within 30 minutes after the termination solution is added, the absorbance value at 450nm is measured using a microplate reader and 540nm or 570nm is set as the correction wavelength. If the dual wavelength correction is not used, the accuracy of the results may be affected;
13 Calculation results: The corrected absorbance values (OD450-OD540/OD570), the compound reading were averaged for each standard and sample, and then the average zero standard OD value was subtracted. Standard curves were created by 4-parameter logic (4-PL) curve fitting using computer software. Alternatively, a curve can be generated by plotting the logarithm of the concentration of the standard against the logarithm of the corresponding OD value, and the best fit line can be determined by regression analysis. This process produces an adequate but less accurate fit to the data. If the sample is diluted, the concentration should be multiplied by the dilution.

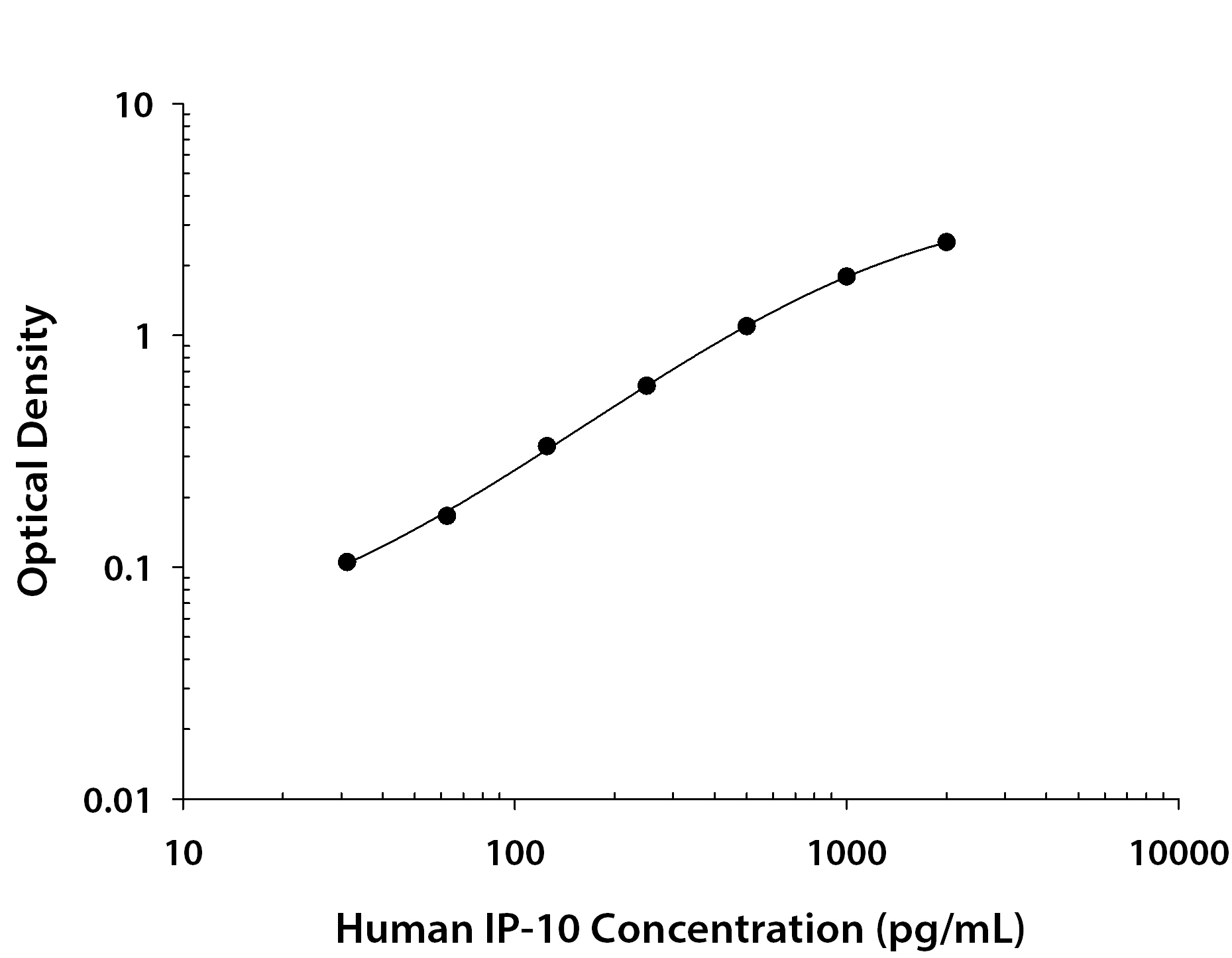

Note: The standard curve data provided in are for reference only, and the sample content should be calculated according to the standard curve drawn in the same test.
3. Kit parameters
1. Recovery: Different levels of Human IP-10 were incorporated into the cell culture medium samples, and the recovery rate was determined. Recoveries ranged from 78 to 114%, with an average recovery of 93%.
2. Sensitivity: The minimum detectable dose (MDD) of Human IP-10 is generally less than 3.5pg/mL. The lowest detectable value was calculated as the corresponding concentration based on the average of the zero absorbance values of 10 standard curves plus two standard deviations.
3. Calibration: The standard of this ELISA kit is a high-purity recombinant HumanIP-10 calibrated by Epixin.
4. Linearity: Five different samples were mixed with high concentrations of Human IP-10, followed by dilution (1×) Linearity was determined by dilutes the samples to the detection range.
Dilution ratio | Mean value/expected value (%) | Range (%) |
1:2 | 106 | 95-116 |
1:4 | 98 | 86-107 |
1:8 | 95 | 89-105 |
1:16 | 101 | 89-110 |
5. Specificity: The ELISA can detect native and recombinant Human IP-10 protein. The following factors in diluent mixture 50 ng/mL (1 x) to detect the concentration and the Human IP - 10 cross reaction. To the interference of 50 ng/mL factor added to the middle range of recombinant Human IP - 10 reference substance, to detect interference with Human IP - 10. No significant cross-reactivity or interference was observed.
Recombinant human proteins | Recombinant mouse proteins | Recombinant rat proteins |
BLC/BCA-1 | IL-8 | BLC/BCA-1 | IFN-γ |
ENA-78 | IL-18 | GCP-2 | IL-1β |
GCP-2 | NAP-2 | GM-CSF | IL-4 |
GROα | NGR1-β1 | IFN-γ | IL-6 |
GROβ | MCP-1 | IL-2 | IL-10 |
GROγ | Lymphotactin | IL-4 | TNF-α |
I-TAC | MIG | IL-6 | |
IFN-γ | SDF-1α | IL-10 | |
IL-1β | SDF-1β | IL-17A | |
IL-2 | TGF-β1 | IP-10/CRG-2 | |
IL-4 | TNF-α | KC | |
IL-5 | TYK-2 | SDF-1α | |
IL-6 | VEGF | TNF-α | |
4, common problem resolution
1. The white board (no color), after the completion of color
NO. | Cause | Solution |
1 | Kit stored improperly; A mixture of different kit reagent | Buy a new kit, pay attention to the storage conditions; Do not mix |
2 | Endow low temperature, short time | If the temperature is too low, the incubation time is prolonged and the color development time is prolonged |
3 | Wrong addition or omission of reagents | In strict accordance with the manual steps to add the correct reagents |
4 | Used to configure the solution container not clean, or there is something wrong with the water | The use of clean containers and qualified distilled water |
5 | In the process of washing the plate, the soaking time is long, the number of washing the plate is too much, and the impact of washing the plate is large | In strict accordance with the manual operation |
6 | The temperature of the reagent was not uniform | All reagents were equilibrated at room temperature for 30 minutes |
7 | Detection of antibody and/or HRP concentrations was too low | Do not dilute at will according to the instructions |
2. Flower plate (blank, negative and positive controls were normal, but the OD value of sample Wells was significantly higher)
NO. | Cause | Solution |
1 | Fewer washing, inadequate | Wash according to instructions |
2 | The substrate 3,3',5,5' -tetramethylbenzidine (TMB) is contaminated or exposed to metal ions or oxidants | The use of clean containers and when making up qualified distilled water; Avoid light preservation |
3 | High incubation temperature and/or excessive incubation time | Control incubation and the enzymatic reaction temperature and time |
4 | Sample did not change when the spear head, cause cross contamination | Change the tip of each sample |
5 | Near the hole cross contamination | Vertical clappers, using the appropriate legal pad, avoiding the hole into confetti |
6 | Samples are endogenous interfering substance | Possible infectious agents were speculated and treated accordingly |
7 | Sample hemolysis, storage for too long, incomplete agglutination, contaminated by bacteria, blood vessels to add impact | Avoid hemolysis, contamination, too long storage and other phenomena |
