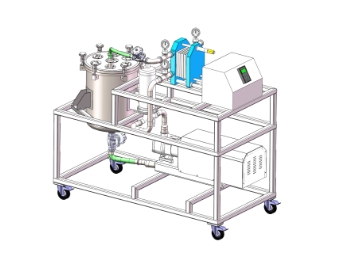

- INT TFF tangential flow filtration system
The INT TFF tangential flow filtration system is used for the separation and purification of monoclonal antibodies, vaccines, plasma, and therapeutic proteins. It is highly suitable for experimental and production scale applications, supporting rapid scaling operations from small to large scale.
The system is divided into two series: manual and automatic. Manual is convenient and easy to operate for users
Automatic can achieve fully automatic control of tanks, detectors, and pumps
This system has a very low retention volume to achieve maximum volume concentration and optimal product recovery, thereby improving process performance.
Product characteristics
The modular standard options allow for unique system configurations that best meet process requirements while minimizing upfront investment.
The full process automation makes it easier to achieve cGMP standards for consistent production of high-value drugs at both preclinical and clinical scales.
Design optimization and component integration result in minimal dead volume and ensure maximum product recovery rate.
The design of feeding batch, concentration, full cycle or single channel mode maximizes the performance of TFF.
High sensitivity online detector, available in pressure, UV pH、 Various detectors such as conductivity
The software platform complies with FDA 21 CFR Part 11 regulations, is easy to operate, has an intuitive user interface, user-defined processes, and alarm setpoints
Ergonomic structural design, easy to operate and maintain
Comprehensive services ensure the rapid implementation and performance optimization of equipment.
Highly customized based on INT TFF membrane filtration system, products can be customized according to customer requirements.
Selection Table for Tangential Flow Filtration System
| System type | Manual tangential flow filtration system | Automatic tangential flow filtration system |
| Membrane type | Optional hollow fiber, ultrafiltration membrane pack, ceramic membrane, nanofiltration membrane | |
| Membrane area range | 0.5-80㎡ | |
| Type of feed pump | Optional: peristaltic pump, diaphragm pump, rotary pump | |
| pressure | pressure gauge | Pressure sensor |
| flowmeter | optional | |
| conductance | optional | |
| PH | Optional: PH1-14 | |
| UV detection | optional | |
| Integrity testing | optional | |
| prefilter | optional | |
| CIP cleaning | optional | |
| SIP sterilization | optional | |
| Ultrafiltration tank | optional | |
| Feeding pump | Optional: peristaltic pump, diaphragm pump, rotary pump | |
| Membrane packaging fixture | Optional: 0.5 square meters (can hold 1-5 or 1-10 pieces), 2.5 square meters (can hold 1-5 or 1-10 pieces) |
|
-
