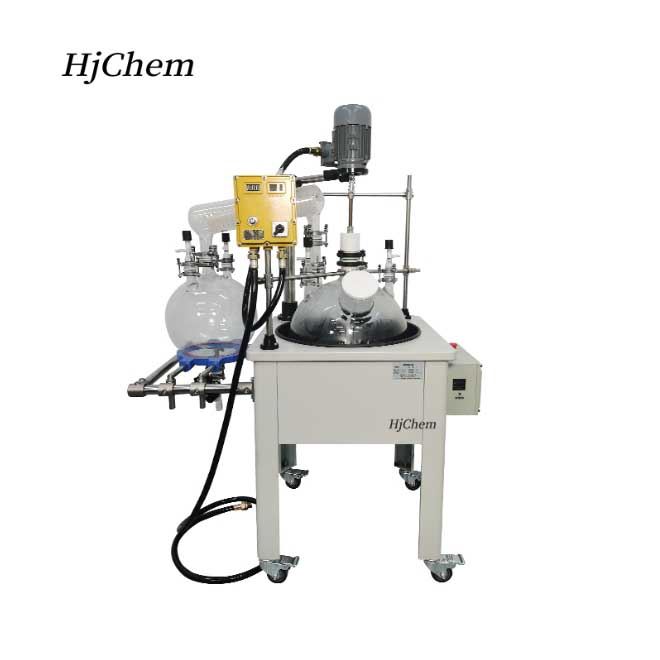

The Single Layer Glass Reactor is a single-wall design, round-shaped glass vessel designed for efficient mixing, reaction and synthesis in laboratory and pilot plant.
Basic Technical Specifications:
1. Volume: 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 60L, 80L, 100L, 150L, 200L
2. Vessel: Single wall
3. Working pressure: Full vacuum to 0.05Mpa
4. Working temperature: -80°C ~ +250°C
5. Nozzles on the cover: stirrer, liquid feeding, solid material feeding, dosing addition, temperature sensor, reflux&distillation, also support customization.
6. Support equipment: include precision temperature control units, high-performance vacuum pumps, agitation sytems and safety accessories.
Why Choose Our Single-layer Glass Reactor?
1.Expandable Features
Beyond its core functionality, the reactor can be customized with modular accessories to enhance versatility.
Options include variable-speed mechanical stirrers, PTFE-sealed lids for inert environments, additional feed ports for multi-step reactions, and digital temperature probes for data logging.
These upgrades transform the reactor into a multifunctional workstation, catering to specialized applications like catalyst testing or nanoparticle synthesis.
2.Safety
The reinforced glass design resists thermal shock, while the stainless-steel frame ensures stability during high-speed agitation.
The seamless integration with standard water baths reduces operational complexity, and the smooth glass surface prevents residue buildup.
For more information, please visit:
Laboratory single layer glass reactor
https://njhjchem.com/product/glass-reactors/lab-5l-200l-single-layer-glass-reactor/
