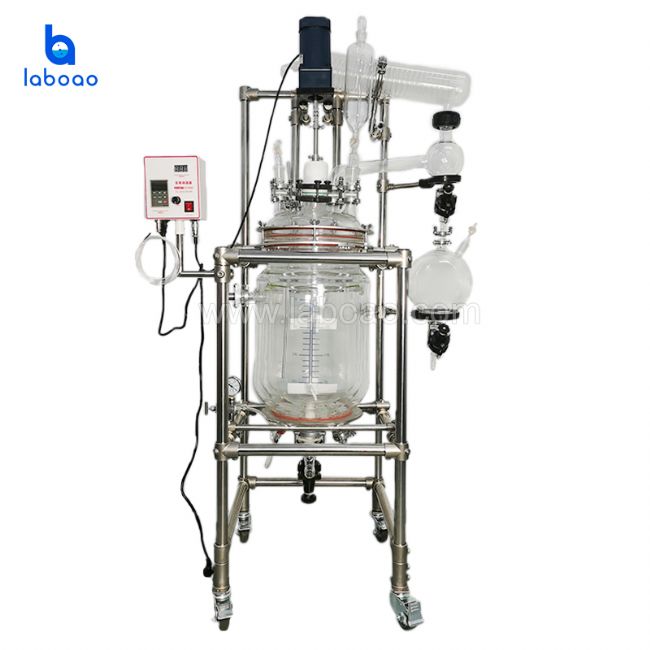

LABOAO 10-100L Three-layer jacketed glass reactor
LABOAO 10-100L Three-layer jacketed glass reactor
Place of Origin:
China
Brand:
LABOAO
Model:
LGR-T
Price:
USD1800-USD7900
Hits:
285
Updated:
11/30/2022
  • Product Detail
  • Company Profile
    10-100L Three-layer jacketed glass reactor
    three layers jacket glass reactor, strirring mixing glass reactor, 20l jacket glass reactor, vacuum glass reactor, large size glass reactor, industrial chemical reactor
    LGR-T
    LABOAO
    Any port in China
    Plywood case package

    The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution.




    1. Description
    The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution. The inner jacket of the three-layer glass reactor is used for heating or cooling. The outer jacket is used for vacuuming, and the refrigerating or heating temperature of the materials in the kettle can be maintained as much as possible under the vacuum state of the outer interlayer. The materials are reacted in the reaction kettle, and after the reaction, the materials are discharged from the PTFE outlet at the bottom of the kettle.

    1. Feature
    1. Explosion-proof: explosion-proof motor and explosion-proof frequency converter;
    2. Mechanical seal: The internal mechanical seal is a combination of moving and static rings, which is wear-resistant and corrosion-resistant, and has good sealing performance;
    3. Stainless steel clamp: the kettle body and the kettle cover are connected by a stainless steel clamp for easy disassembly;
    4. Three-layer kettle body: GG17 high borosilicate glass is used, which has good chemical and physical properties. High temperature 250℃ to low temperature -80℃ in large temperature range;
    5. Circulating medium import and export: the interface adopts the screw type, which is convenient to connect the temperature control equipment;
    6. Discharge valve: Top-up oblique discharge method, the valve core is made of PTFE, no pollution, no corrosion.

    1. Specification
    Model LGR-10T LGR-20T LGR-30T LGR-50T LGR-100T
    Material capacity 10L 20L 30L 50L 100L
    Jacket capacity ≈4 ≈5 ≈8 ≈15 ≈20
    Motor power 120W 200w
    Rotating speed 0-400rpm
    Reaction bottle cover port 5 ports(Stirring, temperature measurement, liquid feeding, solid feeding, emptying)
    Frame material 304 Stainless steel
    Temperature measurement T Teflon PT100, no break, accuracy ±0.1℃
    PTFE stirring paddle Single-layer push Double-layer push
    Temperature display Digital Display
    Discharge valve No dead ends
    Liquid feed valve 34#
    Sealing method Self-lubricating mechanical seal to prevent wear debris from falling off
    Vacuum -0.098Mpa
    Explosion-proof motors Optional
    Explosion-proof inverter Optional
    Ambient temperature 5~40℃
    Power 220V 50HZ




    bio-equip.cn
    Zhengzhou Laboao Instrument Equipment Co., Ltd (LABOAO) is a high-tech enterprise integrating R&D, production, sales, import and export, and is a leading laboratory equipment solution provider in China. LABOAO is headquartered in Zhengzhou, China. It has a group of excellent management and technical personnel who strive for excellence and constantly pursue progress and innovation. After fifteen years of hard work, it has achieved sustained and steady development, and its products are exported to Europe, America, Southeast Asia, the Middle East, South Africa, etc. 150 countries, we are working hard to establish a global regional service agency to provide better services and products for global customers.

    The company has always adhered to the corporate tenet of "innovative technology, life first", focusing on laboratory research, life science, biomedical engineering and other fields, focusing on continuous innovation and development, improving the technical content of products, enriching product categories, realizing product upgrades, and gradually strengthening the enterprise. Core competitiveness, LABOAO regards product quality as the vitality of the enterprise, all our products have undergone strict testing and quality inspection, and have established a set of strict internal quality control system in accordance with international quality standards, and meet strict international standards. So far, the company has passed ISO9001 quality management system certification, EU CE, SGS, TUV, CNAS and other certifications.

    LABOAO's main business involves laboratory instruments/consumables, life science instruments, chemical analysis instruments, optical instruments, medical equipment, drug inspection instruments, agricultural instruments, food inspection instruments and other industry-related instruments. Our products are widely used in laboratories, scientific research institutions, universities, chemical companies, hospitals, new energy, agriculture, food, metallurgy and mining, construction, petroleum and other industries.

    The company introduces world-class automated production equipment and production technology, and continuously expands production capacity to meet customer needs. The investment of advanced production equipment and software facilities makes the enterprise more international standardization and standardization. LABOAO actively carries out various cooperations such as OEM and ODM with world-renowned enterprises. In continuous practice and application, LABOAO will continue to provide high-quality products and services to global customers.
    Our company has 78 employees and 20 R&D teams. More than 85% of the company's employees have more than three years of professional foreign trade experience. 10% of the annual sales are focused on product development and improvement. We believe that only excellent teams can High quality service is good for customers.

    We advocates the corporate spirit of "integrity, dedication, integrity, cooperation". With its rich network marketing experience, corporate strategic management and talent advantages, the company constantly explores the past, forms an international channel brand, and incubates international brands with Internet thinking. Mission, strive to achieve our vision of redefining the premium and impact of Chinese products in the global market!
